Communication Interface Overview

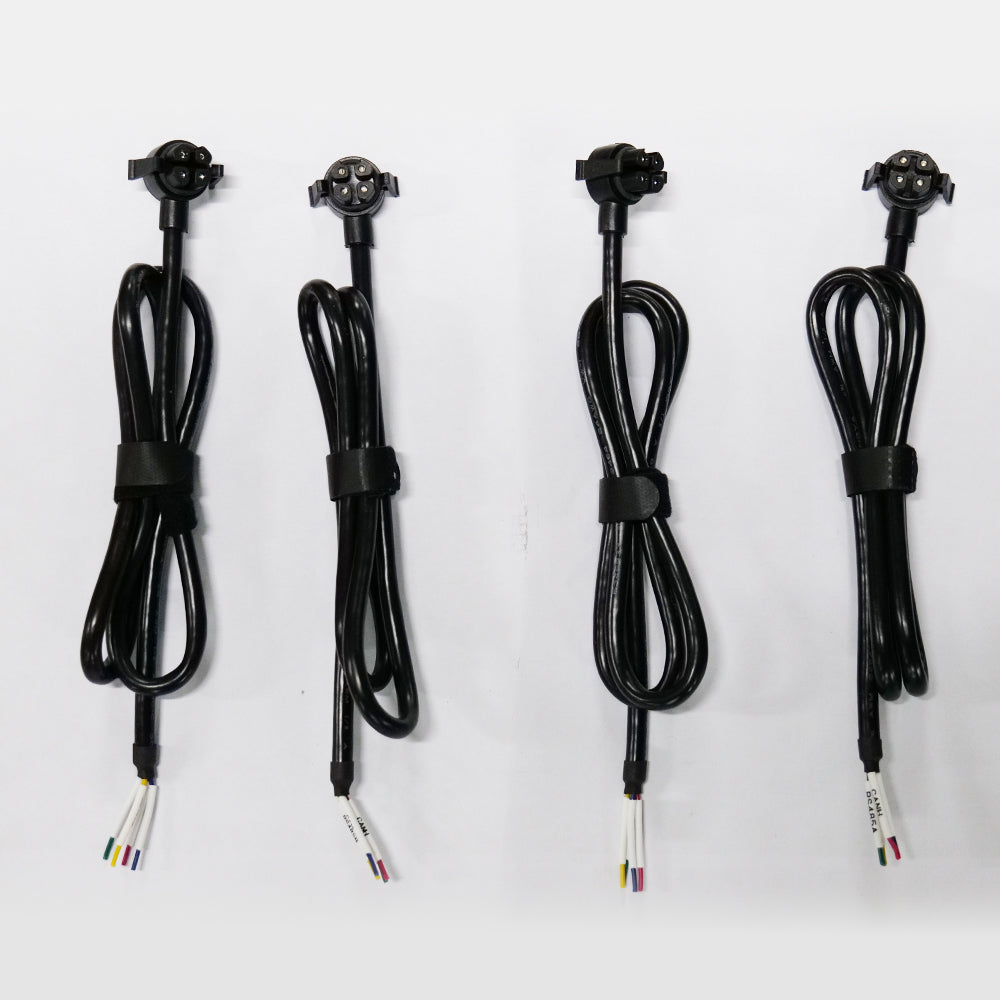

RS485 Communication Interface

Port:

• RS485 is a robust and widely-used serial communication standard, ideal for long-distance and multi-point communication.
• Supports a baud rate of 9600 bps, making it suitable for stable data transmission in industrial and energy management systems.
• RS485A and RS485B represent the differential lines used for data transmission.

Advantages:

• Long-Distance Communication：RS485 supports communication distances of up to 1,200 meters, making it ideal for large-scale installations such as solar power plants or industrial facilities.
• Multi-Device Connectivity：RS485 can support up to 16 devices on the same bus, enabling centralized monitoring of multiple batteries or components.
• Stability in Harsh Environments：RS485 is highly resistant to electrical noise and interference, making it suitable for industrial or outdoor applications where reliability is critical.
• Cost-Effectiveness：RS485 devices and cables are widely adopted in industrial environments, offering low cost and easy availability, which reduces overall system costs.

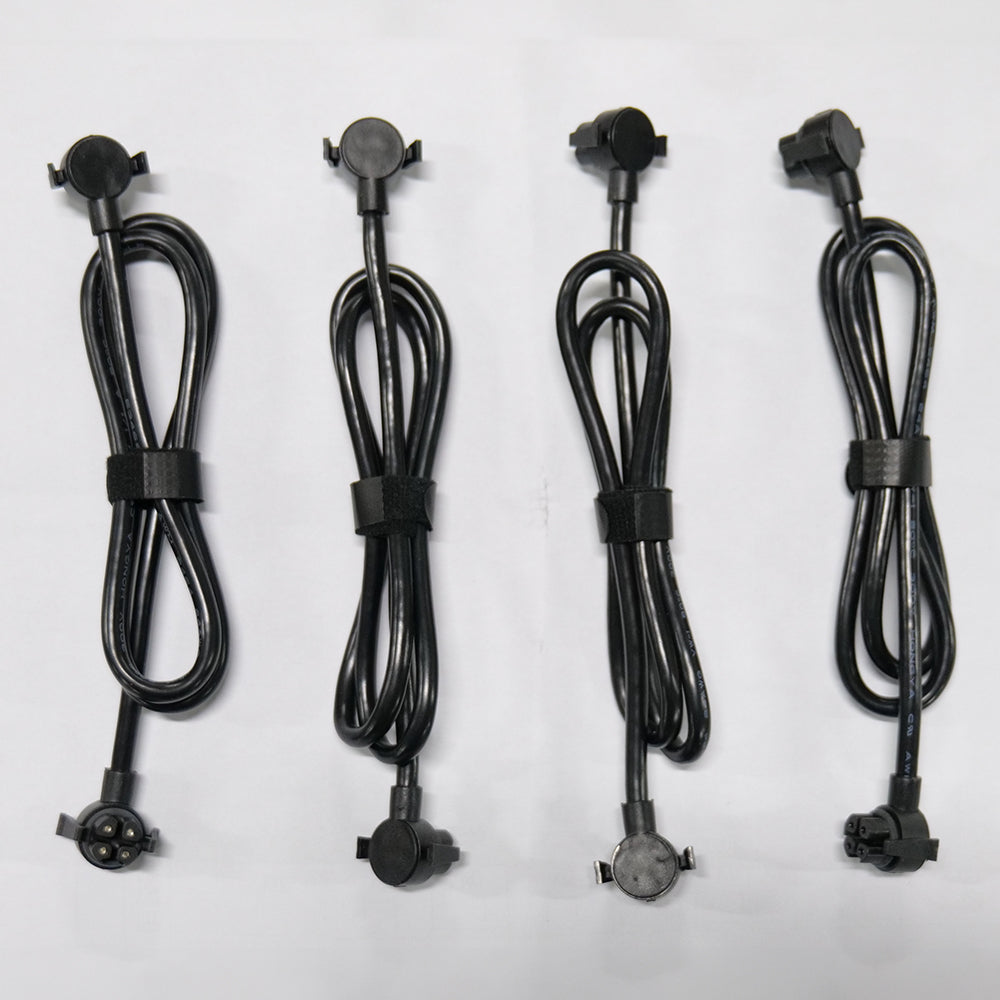

CAN Bus Communication Interface

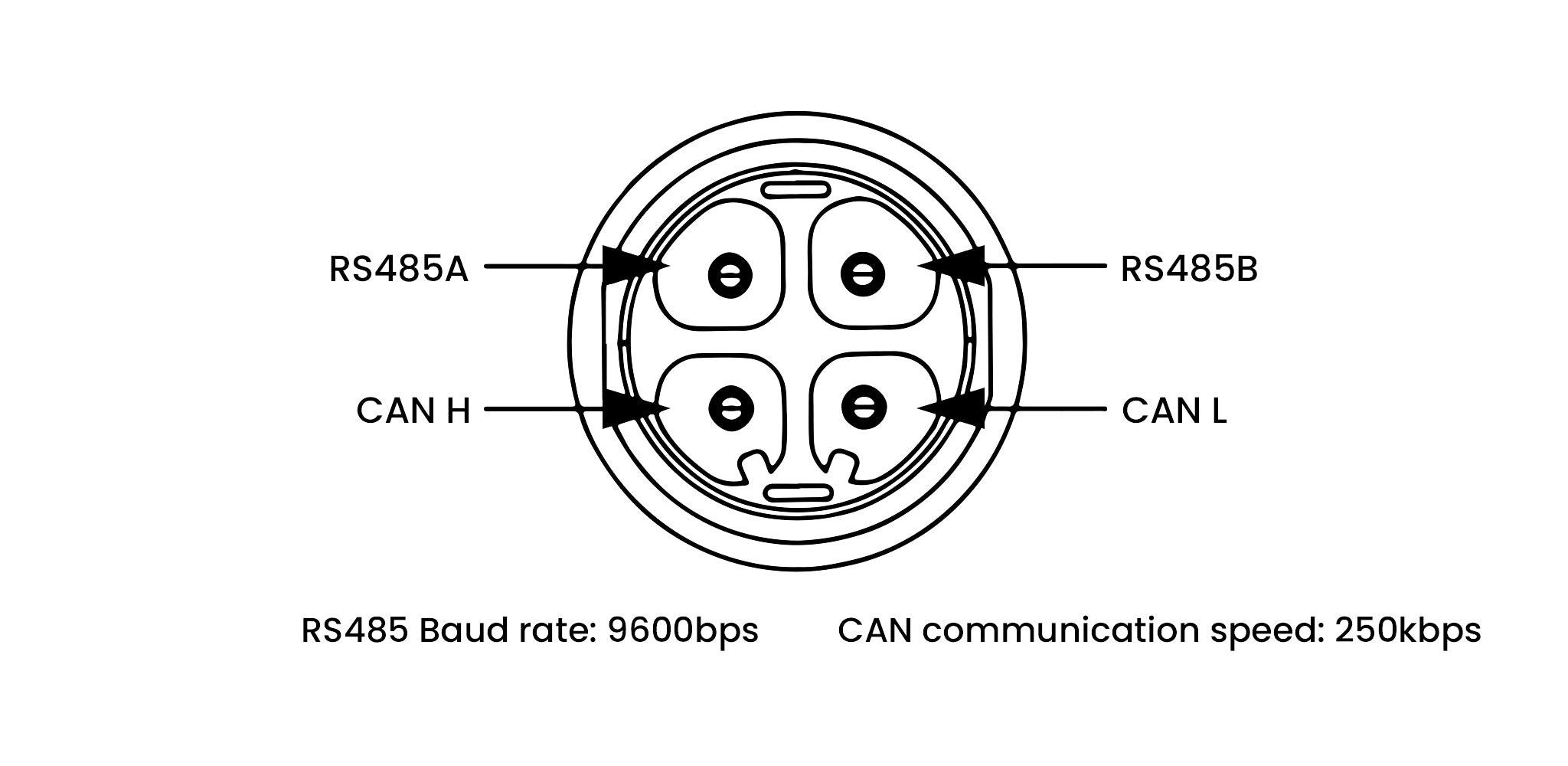

Port:
CAN H (High) and CAN L (Low)
The Controller Area Network (CAN) is a high-speed communication protocol designed for real-time data exchange.

• A baud rate of 250 kbps ensures fast and efficient transmission of battery data, such as voltage, current, temperature, and state of charge (SOC).
• CAN H and CAN L establish differential signaling, enabling reliable data transmission in electrically noisy environments.

Advantages:

• Real-Time Data Transmission：Designed for real-time communication, the CAN bus ensures fast and accurate transfer of critical data, including battery voltage, temperature, and SOC.
• High Reliability：Utilizes differential signal transmission, immune to electrical noise, making it ideal for applications such as electric vehicles and marine systems.
• Error Detection and Correction：Built-in error-checking mechanisms enhance communication accuracy and system stability.
• Supports High-Speed Communication：With a communication speed of up to 250 kbps (or higher in advanced systems), the CAN bus ensures seamless data exchange in demanding environments.
• Multi-Node Capability：The CAN bus supports multiple devices on the same network, making it well-suited for battery management systems (BMS) in modular setups such as electric vehicles or backup power systems.
• Versatile Applications：Widely used in automotive, industrial automation, and smart grids, ensuring compatibility with a variety of systems.

Bluetooth Communication Interface

Wireless Connection for Real-Time Monitoring

• Bluetooth provides a wireless solution for real-time data access between batteries and smartphones or tablets.
• Enables easy monitoring of battery parameters such as state of charge (SOC), temperature, voltage, and charge cycles directly on a mobile app.
• Particularly suitable for consumer-focused applications like off-grid systems, portable power packs, and electric bicycles.

Advantages:

• Convenience:Eliminates the need for physical connections.
• Accessibility:Supports short-range (typically up to 10 meters) remote monitoring.
• User-Friendly Interface:Allows end-users to access data through intuitive smartphone applications.

Application Scenarios

1. RS485 Interface Applications
The RS485 interface supports long-distance communication and multiple devices on the same bus, making it ideal for industrial and renewable energy systems.

Scenario 1: Solar Energy Storage Monitoring

• In solar power systems, GoldenMate Orion1000 batteries connect to solar charge controllers or energy management systems via the RS485 interface.
• The RS485 connection enables real-time monitoring of battery charge/discharge status, voltage, and temperature, ensuring optimal energy utilization.
