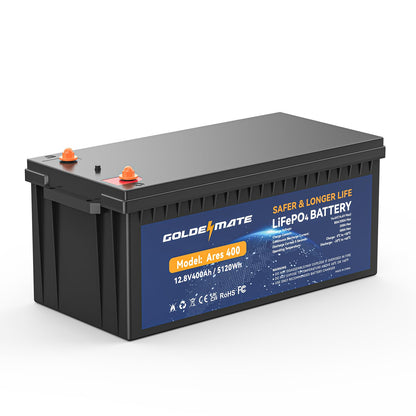

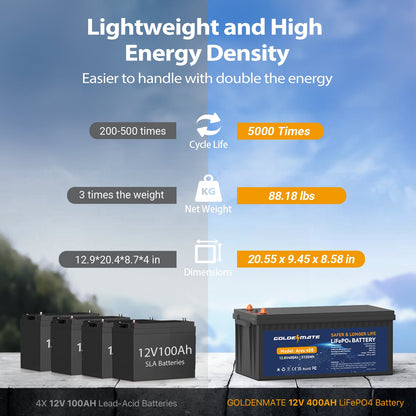

GoldenMate 12V 400Ah LiFePO4 Deep Cycle Lithium Battery
- Automotive Grade Lithium Battery: Automotive Grade Lithium Battery: Our batteries utilize JGNE cylindrical batteries. GoldenMate 12V 200Ah Lithium Batteries have superior quality since it is manufactured by Automotive Grade LiFePO4 Cells with higher energy density, more stable performance & greater power. Highest-level safety based on UL Testing Certificate for the LiFePO4 battery, support 100% DOD &100% SOC. 12V 200Ah LiTime Battery supports max. 2.56kWh usable energy, it is double energy and running time than a 12V 100Ah battery directly.
- 10 Years Lifetime & Up to 15000 Cycles: GoldenMate LiFePO4 Batteries provide up to 15000 cycles, which depends on your actual using depth of discharge (4000 cycles at 100%DOD, 6000 cycles at 80%DOD, 15000 cycles at 60%DOD). It is more than 20~30 times to Lead Acid with 200~500 cycles. Goldenmate LiFePO4 battery has a 10-year service life, which is longer 3 times than the Lead Acid Battery’s 3-year lifetime.

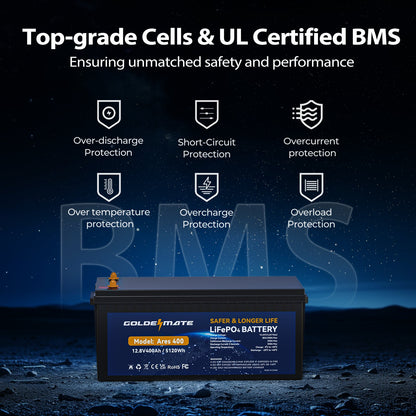

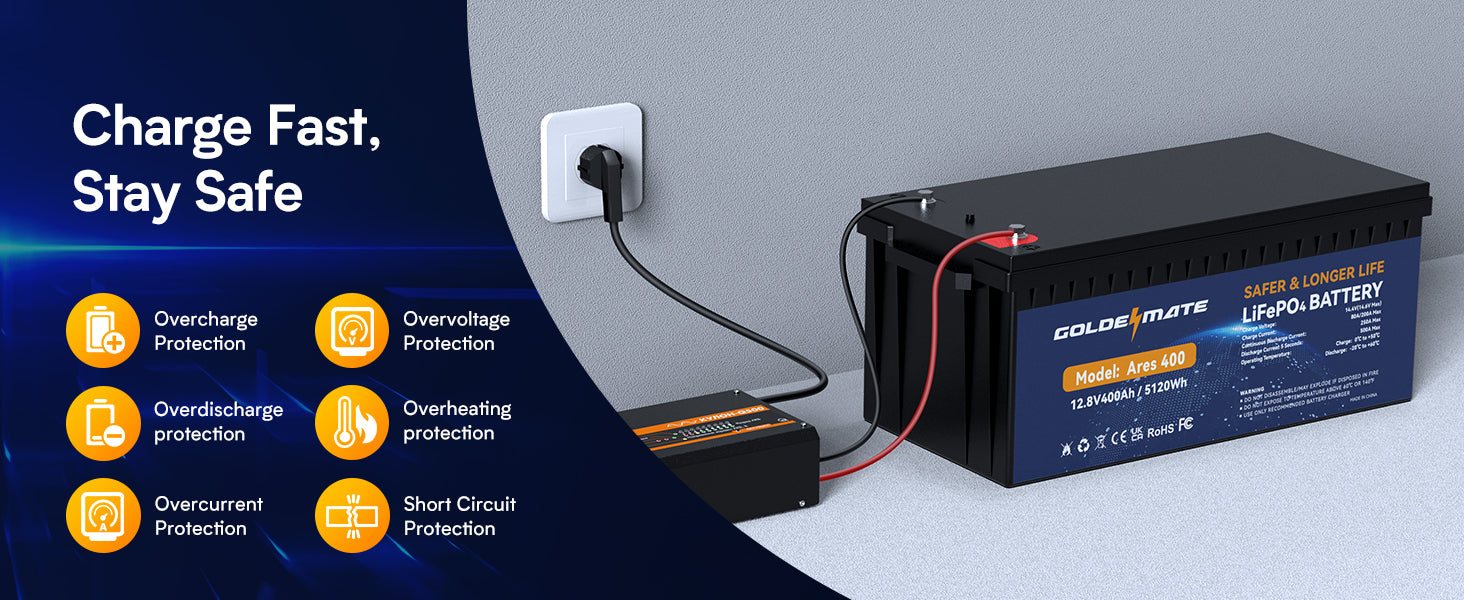

- 100% Protection: GoldenMate LiFePO4 batteries has built-in BMS (Battery Management System) to protect it from overcharge, over-discharge, over-current, and short circuits with ultra-low self-discharge rate. Built-in high-temp cut-off prevents charging over 167 °F (75 °C). Without memory effect, no matter what state the battery is, it can be used as soon as it is charged.
- 1/3* Lightweight: GoldenMate 12V 200Ah LiFePO4 Battery weighs only 48.28 lbs, compared to lead-acid batteries, lithium battery provides 56Wh/lb energy density, and only 1/3* the weight of the lead-acid battery, which makes it easier to install or move. It is a perfect upgrade for any 12V Deep Cycle battery. This makes Lithium batteries perfect for solar homes, RVs, campers, motor homes, and off-grid applications.
- Flexible Capacity Expansion: GoldenMate Lithium Battery can be connected in parallel and series for larger capacity and higher voltage. The 12V 200Ah battery supports up to 4 identical batteries for up to a 48V 200Ah battery system in series or a 12V 800Ah battery system in parallel. 20.48kW load power and 40.96kWh energy. It supports quick charge with 40A and continuously discharges with 120A heavy-duty output. No more than 4 batteries can be connected in series or parallel.
- Wide Applications: The 12V LiFePO4 200Ah battery is suitable for high-load and long-duration applications. It offers exceptional cycle life and performance, making it suitable for various applications such as wheelchairs, emergency lighting, RV/outdoor camping, marine, trolling motor, home energy storage, computer power backup, off-grid applications, solar panel wind energy storage solutions, and more. This battery provides an extended power supply for longer durations and supports the operation of high-power devices.
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Why Goldenmate?
GoldenMate delivers decade-long, safe power with LiFePO4 UPS technology, ensuring pure, reliable protection for your critical systems.
BATTERY CAPACITY
MAINTENANCE
LIGHTER
CHARGING EFFICIENCY
FIVE TIMES THE LIFESPAN
Find Your Energy Solutions
Product Specifications
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 12.8V
- Rated Capacity: 400Ah

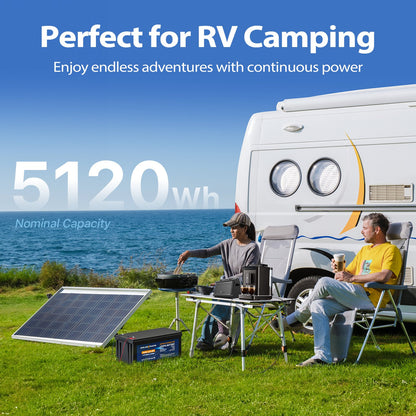

- Energy: 5120Wh

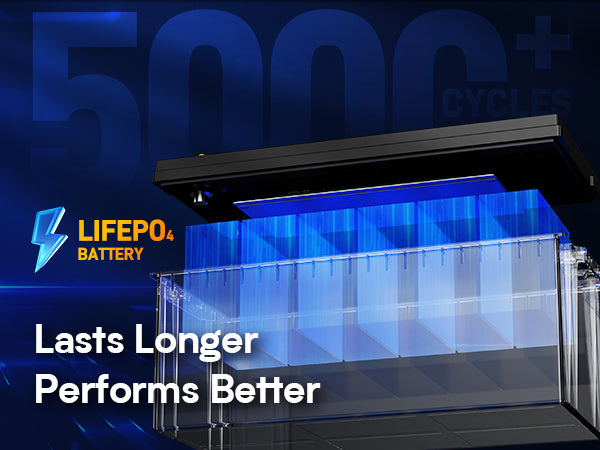

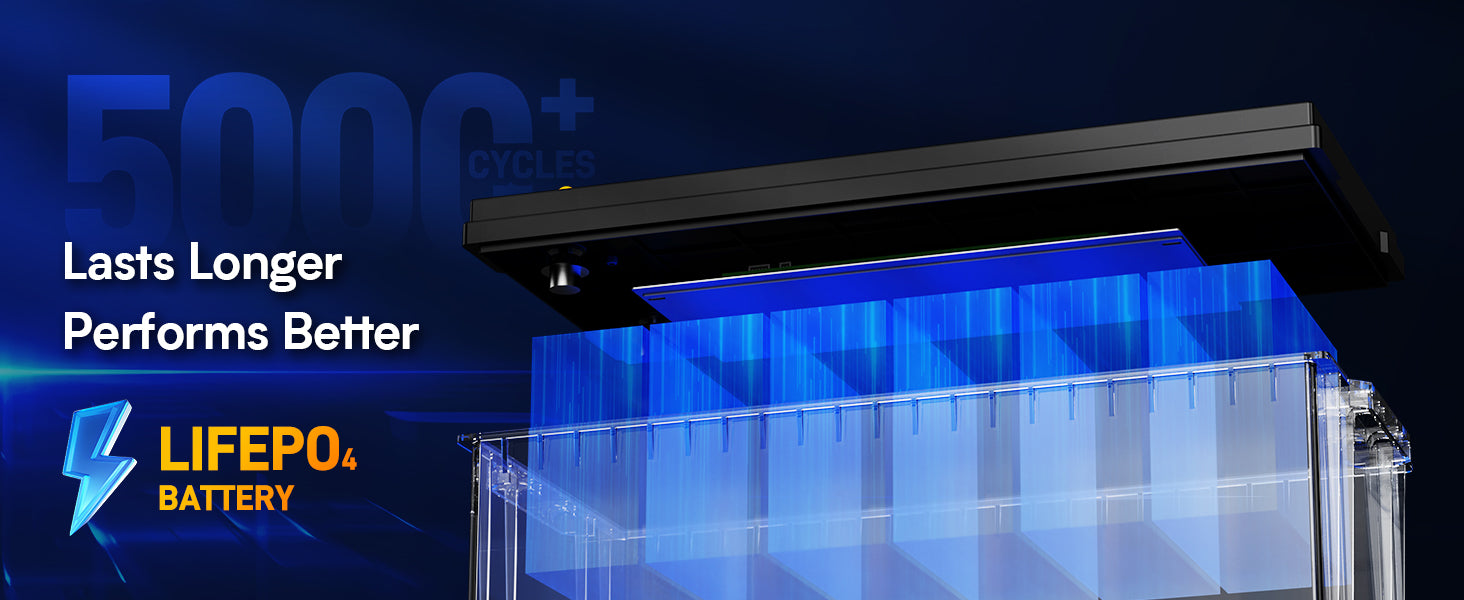

- Cycle Life: 5000+ cycles
- Continuous Discharge Current: 250A
- Peak Discharge Current: 500A
- Charging Voltage: 14.4V–14.6V
- Maximum Charge Current: 200A
- Built‑in BMS: Yes

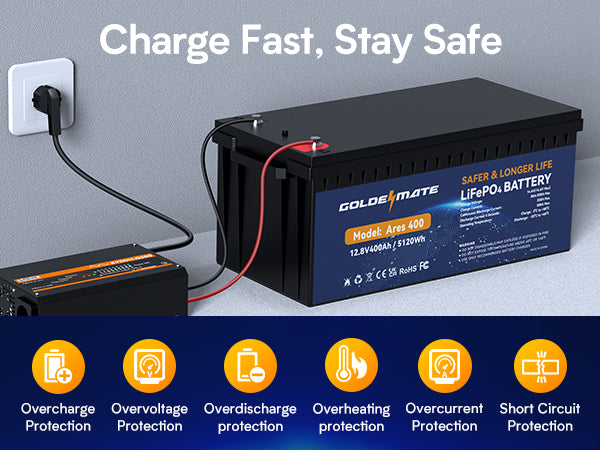

- Protection Functions: Overcharge, Over‑discharge, Over‑current, Short Circuit, Over‑temperature
- Operating Temperature (Charge): 0°C to 50°C
- Operating Temperature (Discharge): -20°C to 60°C
- Storage Temperature: -10°C to 50°C
- Waterproof Rating: IP65
- Terminal Type: M8
- Dimensions: Approx. 523 × 269 × 218 mm
- Weight: Approx. 40 kg
- Applications: RV, Solar System, Marine, Off‑grid Power, Backup Power
Testimonials
Add customer reviews and testimonials to showcase your store’s happy customers.
— Author's name
Add customer reviews and testimonials to showcase your store’s happy customers.
— Author's name
Add customer reviews and testimonials to showcase your store’s happy customers.
— Author's name
Recognized And Supported By 100+ Accredited Media Sources WorldWide
FAQs
1. Are GoldenMate LiFePO4 lithium batteries safe?
Yes. GoldenMate LiFePO4 batteries use one of the safest and most stable lithium chemistries available. They are UL-certified and include an advanced Battery Management System (BMS) that protects against over-charge, over-discharge, over-current, overheating, and short circuits. They are also tested to minimize risks of fire and electric shock, even in harsh environments.
2. How can I charge GoldenMate LiFePO4 batteries?
GoldenMate LiFePO4 batteries can be charged in several ways:
- Solar panels (recommended ≥300W for faster charging)
- Generator or alternator (DC-to-DC charger required for DC output)
- LiFePO4 smart chargers
Recommended charging voltage is 14.2V–14.6V. Using a 20A charger typically takes about 5 hours, while a 50A charger can reach ~97% charge in about 2 hours.
3. How long does it take to charge the battery?
Charging time depends on the charger:
- 10A charger: ~10 hours
- 20A charger: ~5 hours
- 50A charger: ~2 hours (to ~97%)
Solar charging time varies based on sunlight intensity and duration.
4. Can I charge the battery in cold temperatures? Does it have low-temperature protection?
The battery includes low-temperature charging protection, which prevents charging below freezing to avoid cell damage.
Recommended charging temperature range is 32°F–122°F (0°C–50°C). Charging below 32°F (0°C) is not recommended.
5. How should I store the battery, and what should I do when I receive it?
The battery may arrive with a low state of charge due to shipping. Please charge it promptly after receiving.
For storage:
- Store at ~50% state of charge (SOC)
- Store in a dry environment between 50°F–95°F (10°C–35°C)
- If stored long-term, recharge or cycle the battery every 3–6 months to maintain performance

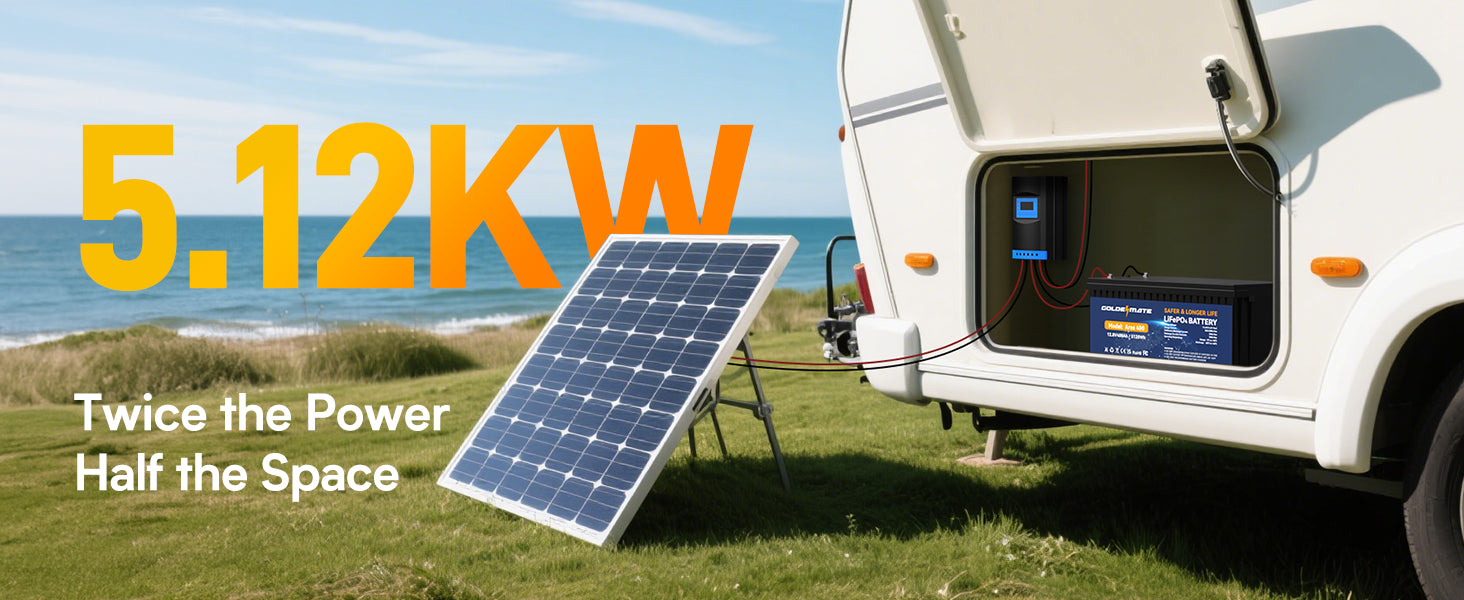

6. Can I charge GoldenMate LiFePO4 lithium batteries with solar panels?
Yes, you can charge GoldenMate LiFePO4 lithium batteries with solar panels. There are 3 ways to charge.
1. Using Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 300W solar panels. It may take more than one day to fully charge the battery by ≥300W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
Besides solar panels, there are 2 more ways to charge.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
