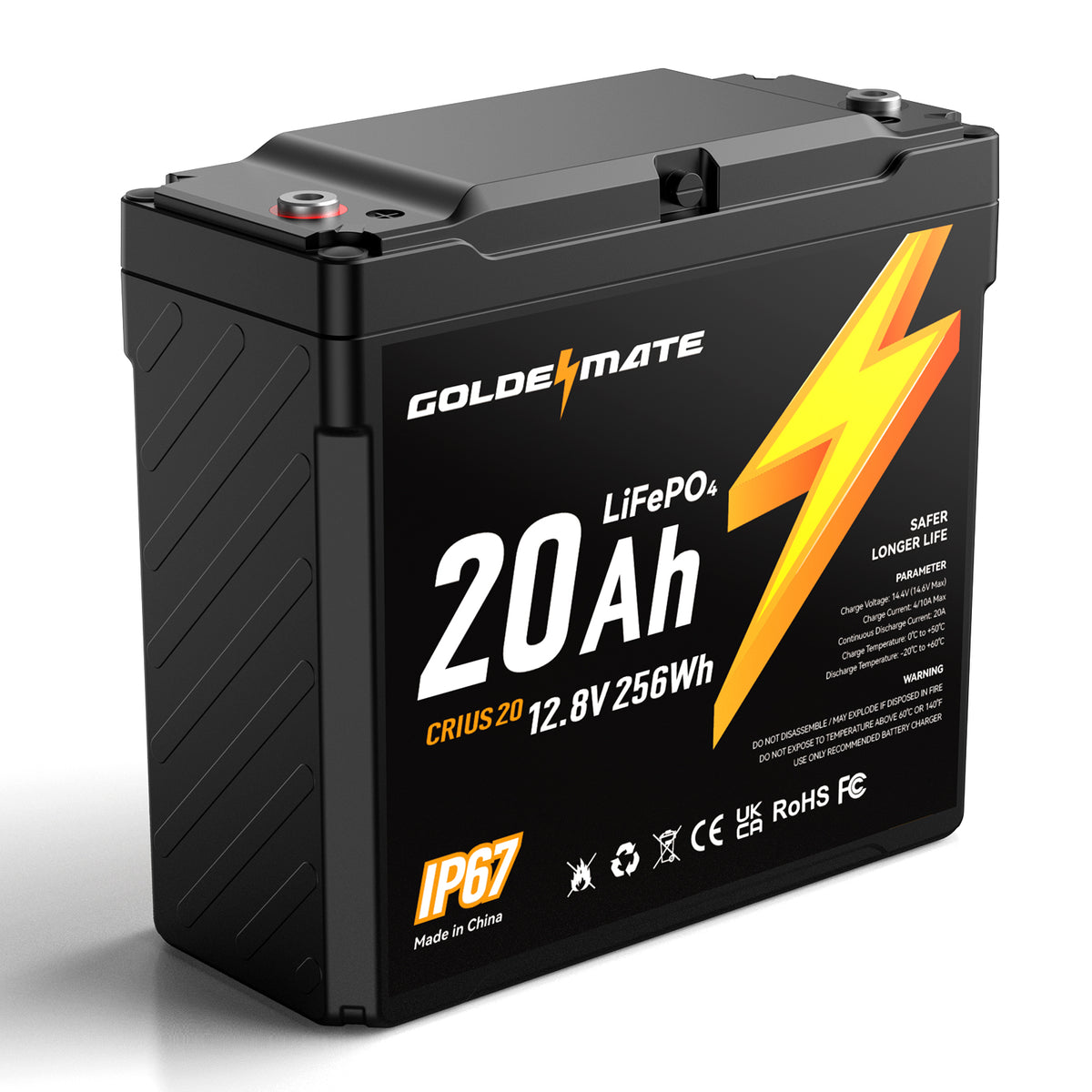

12V 20Ah IP67 Waterproof LiFePO4 Lithium Battery

$79.99 $109.99 ($79.99 item)

Options: 1 Pack

1 Pack
2 Pack
3 Pack
4 Pack

Product variants

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%20%3C/p%3E

Capacity & Energy

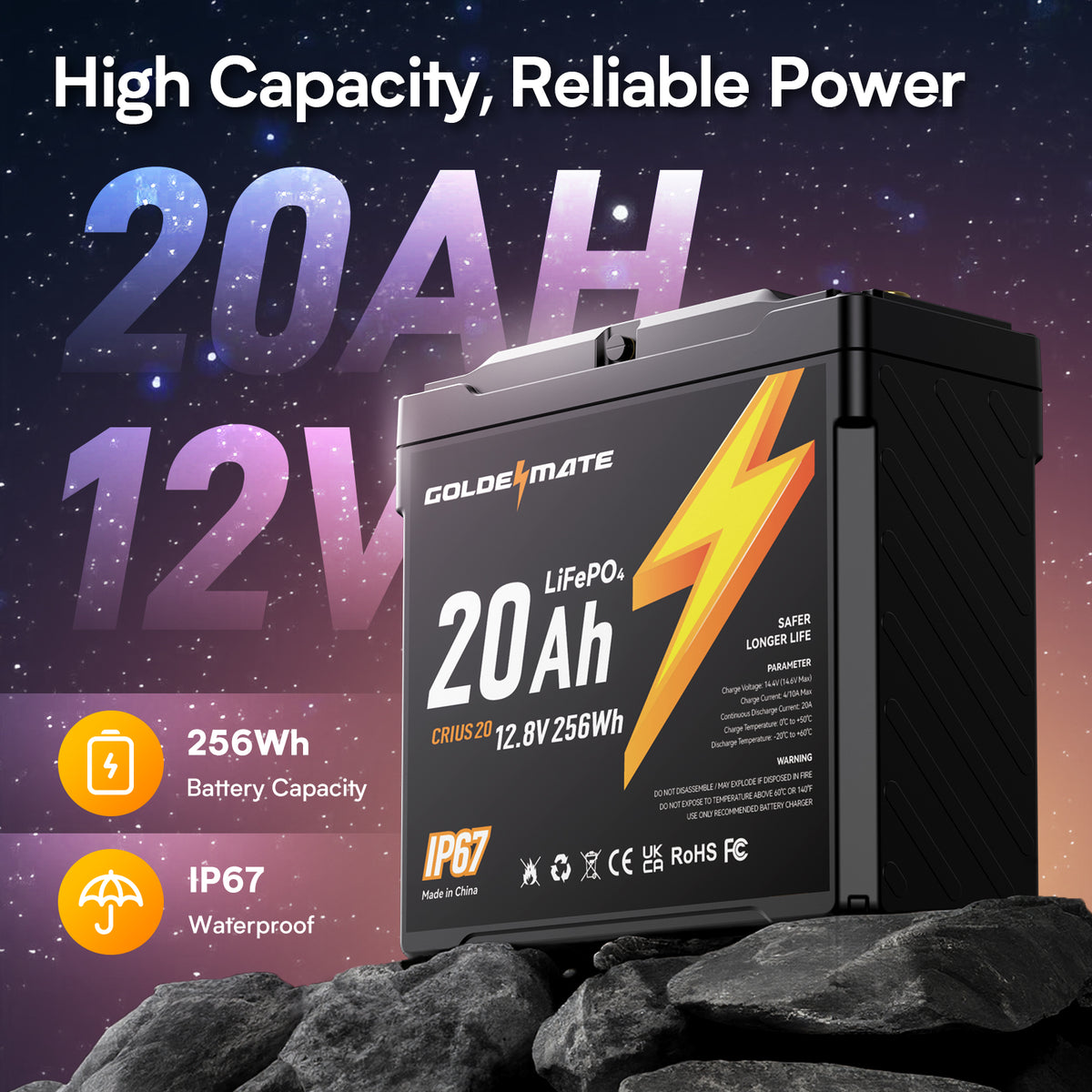

LiFePO4; 12.8 V; 20 Ah; 256 Wh.

Charging

14.4–14.6 V charging voltage; 10 A maximum charging current.

Discharge & BMS Protection

10 A continuous discharge; 128 W maximum continuous output; built-in 20 A BMS with overcharge, over-discharge, over-current, short-circuit, and temperature protection.

Service Life & Configuration

Rated for 5000+ cycles; series and parallel configurations supported.

Build & Installation

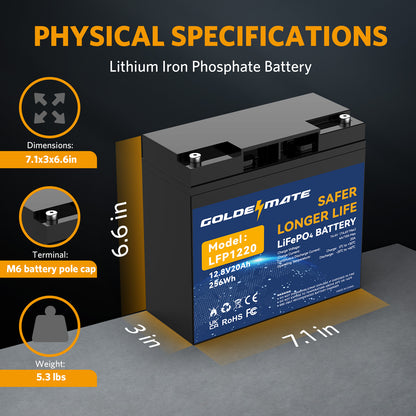

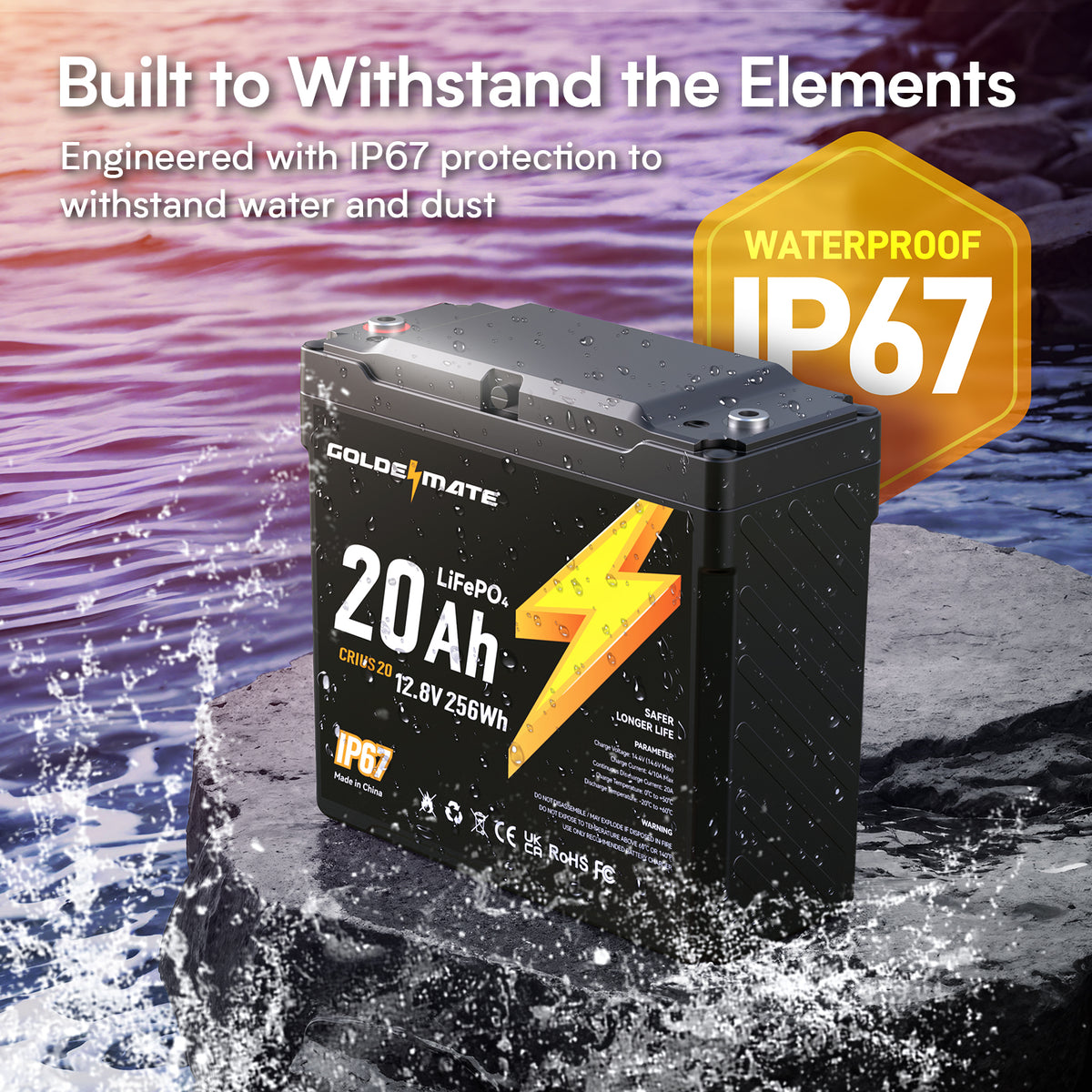

181 × 76 × 168 mm dimensions; approximately 2.7 kg net weight; M6 terminals; IP67.

Monitoring & Applications

Not intended for engine starting.

Need help?

In stock! Ships within 1-2 business days.

30-day hassle-free returns.

2-year limited warranty.

Free standard shipping.

Pairs well with

12V 20Ah IP67 Waterproof LiFePO4 Lithium Battery

1 Pack

$79.99 $109.99 ($79.99 item)

IP67 LiFePO4 Battery

Compact, protected deep-cycle power

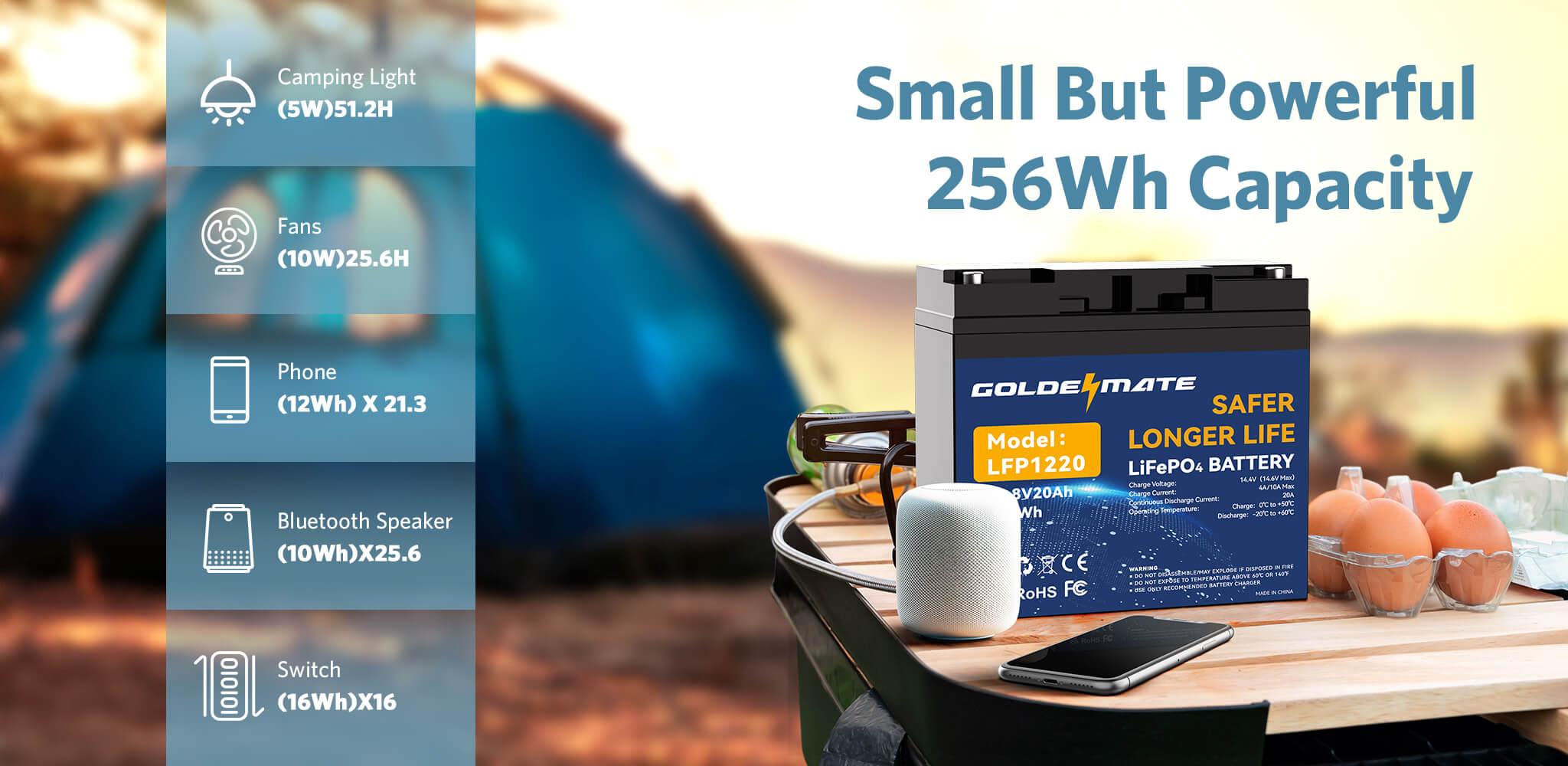

This compact 12.8 V 20 Ah LiFePO4 battery provides 256 Wh of energy, IP67 ingress protection and a built-in BMS for compatible deep-cycle and backup-power applications.

GoldenMate 12V 20Ah IP67 LiFePO4 battery

Compact power for everyday systems

Capacity & energy

Compact deep-cycle energy

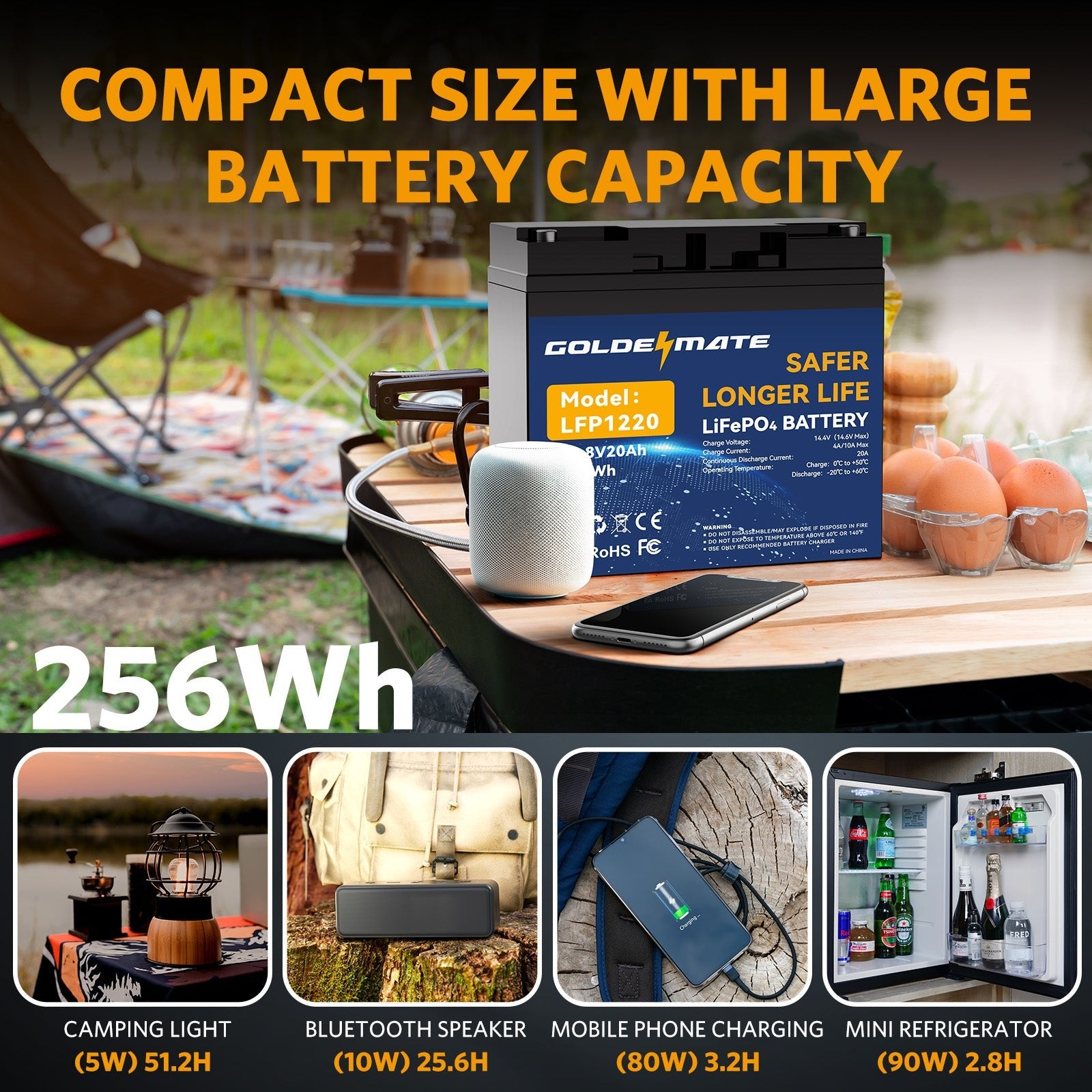

A 12.8 V, 20 Ah LiFePO4 battery delivering 256 Wh in a compact enclosure.

Power that goes where your system goes

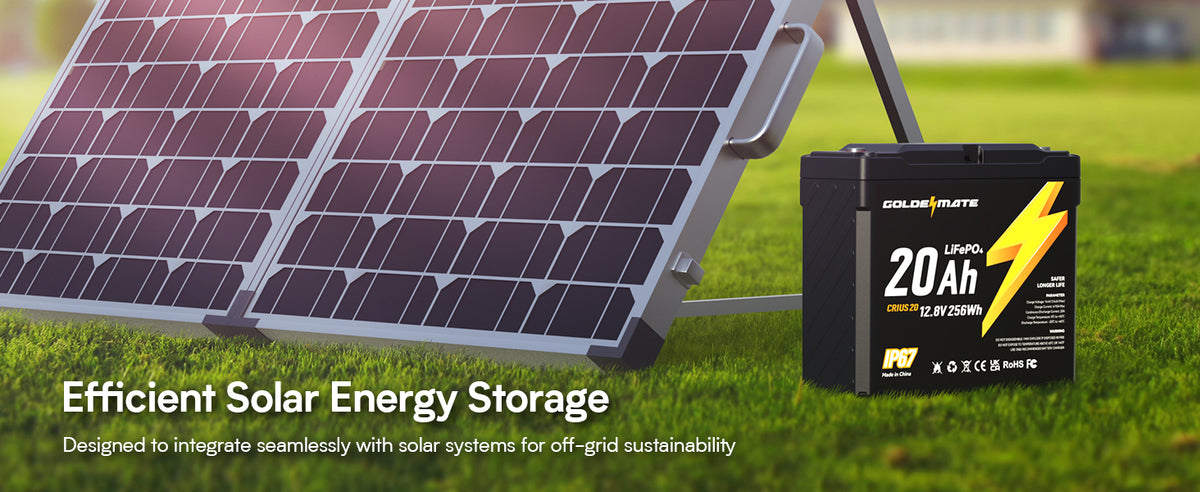

Application fit

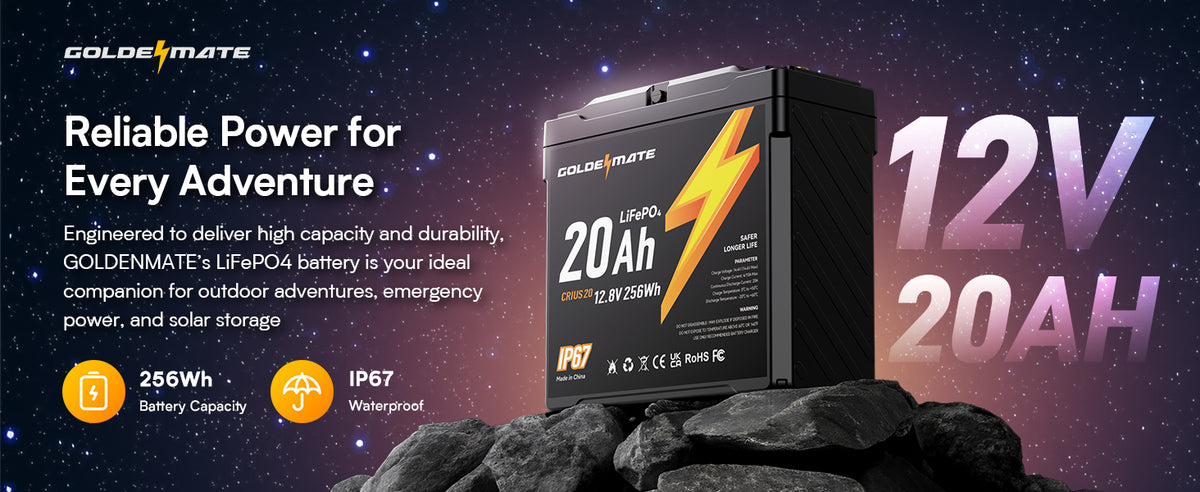

Flexible applications

Suitable for compatible deep-cycle, portable-power, marine-electronics and backup-power uses.

Engineered for dependable energy

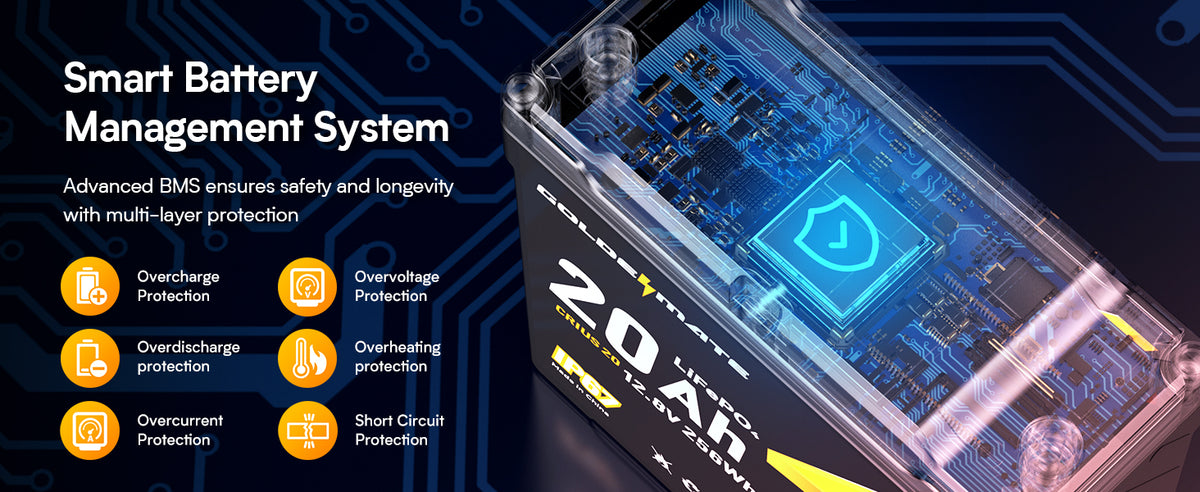

Battery management

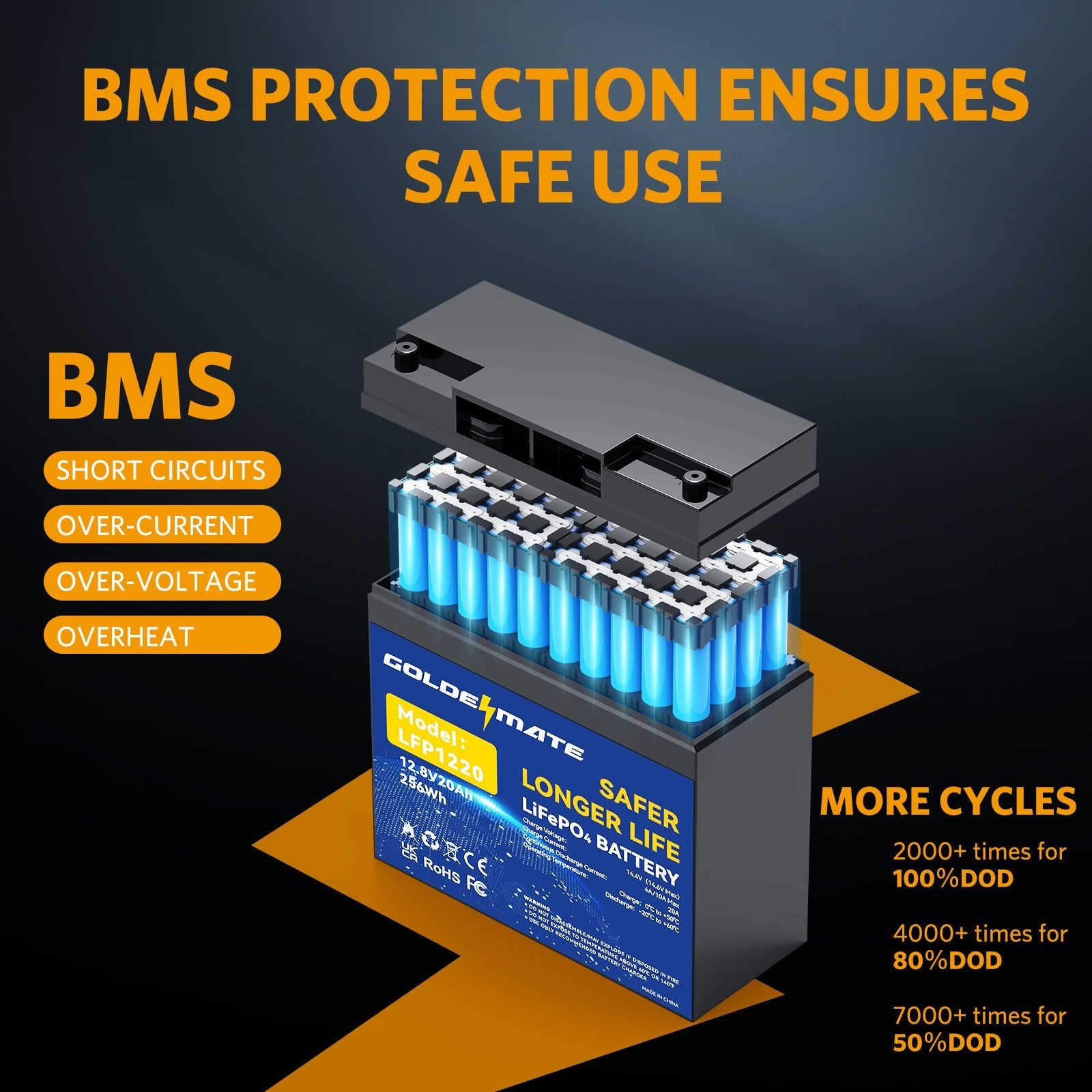

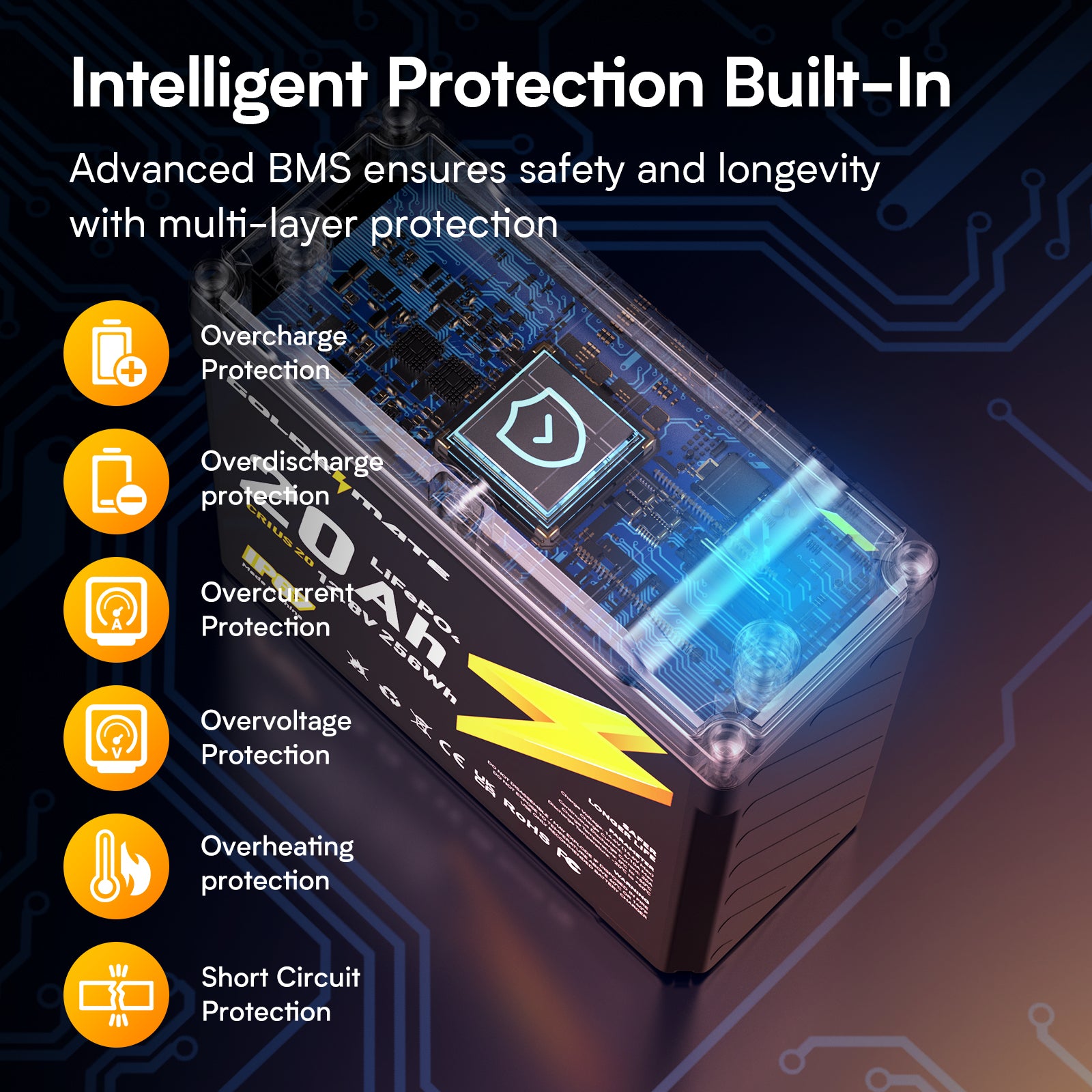

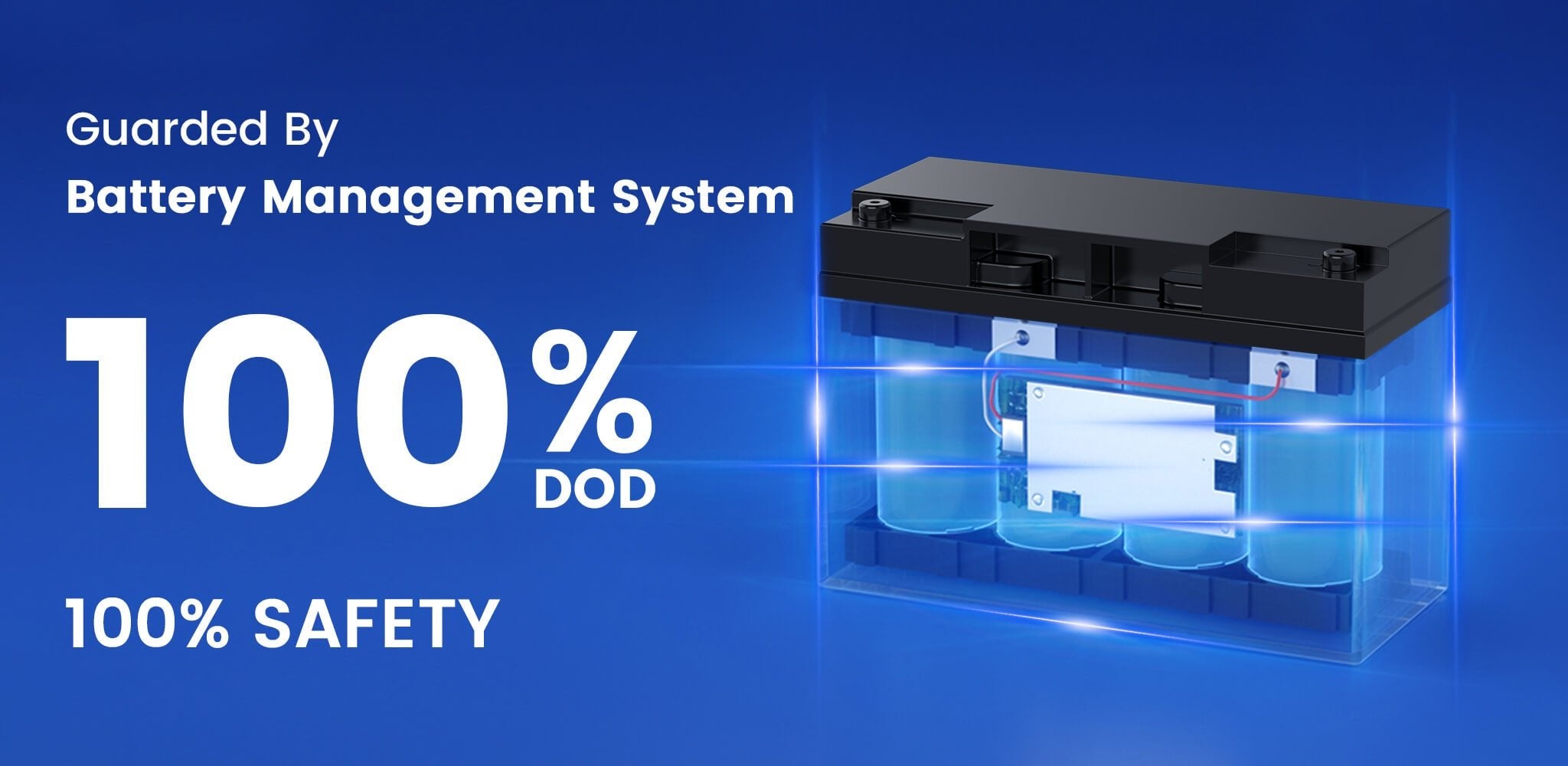

Built-in BMS protection

Integrated protection monitors overcharge, over-discharge, over-current, short circuit and temperature conditions.

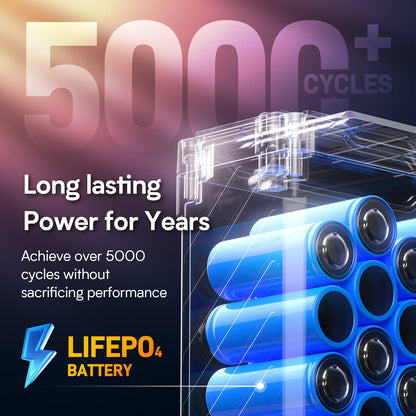

Cycle performance

Long service life

LiFePO4 chemistry is designed for repeated deep-cycle service and long-term energy storage applications.

The details behind the build

Capacity & Energy

LiFePO4 chemistry; 12.8 V nominal voltage; 20 Ah capacity; 256 Wh energy.

Charging

14.4–14.6 V charging voltage with a maximum charging current of approximately 20 A.

Discharge & BMS Protection

20 A continuous discharge, up to 256 W continuous output, with protection against overcharge, over-discharge, over-current, short circuit and temperature extremes.

Service Life & Configuration

Rated for 5000+ cycles; series and parallel configurations are supported when installed according to the product instructions.

Build & Installation

181 × 76 × 167 mm enclosure, 2.4 kg net weight, M6 terminals and IP67 ingress protection.

Applications

Designed for deep-cycle power applications and not intended for engine starting.

Charge and install with confidence

Charging

LiFePO4 charging profile

Use a compatible LiFePO4 charger and keep charging voltage and current within the published limits.

Safety first

Install to specification

Use the correct terminals, cabling, fuse protection and charger, and follow the installation instructions.

A charging setup built around LiFePO4

Charging guidance for the 12V 20Ah LiFePO4 battery

Charging setup

Use a LiFePO4-compatible charger with a 14.4–14.6 V charging profile. Do not exceed the published maximum charging current of approximately 20 A.

Charge voltage: 14.4–14.6 V
Maximum current: 10 A

Plan the system before you connect

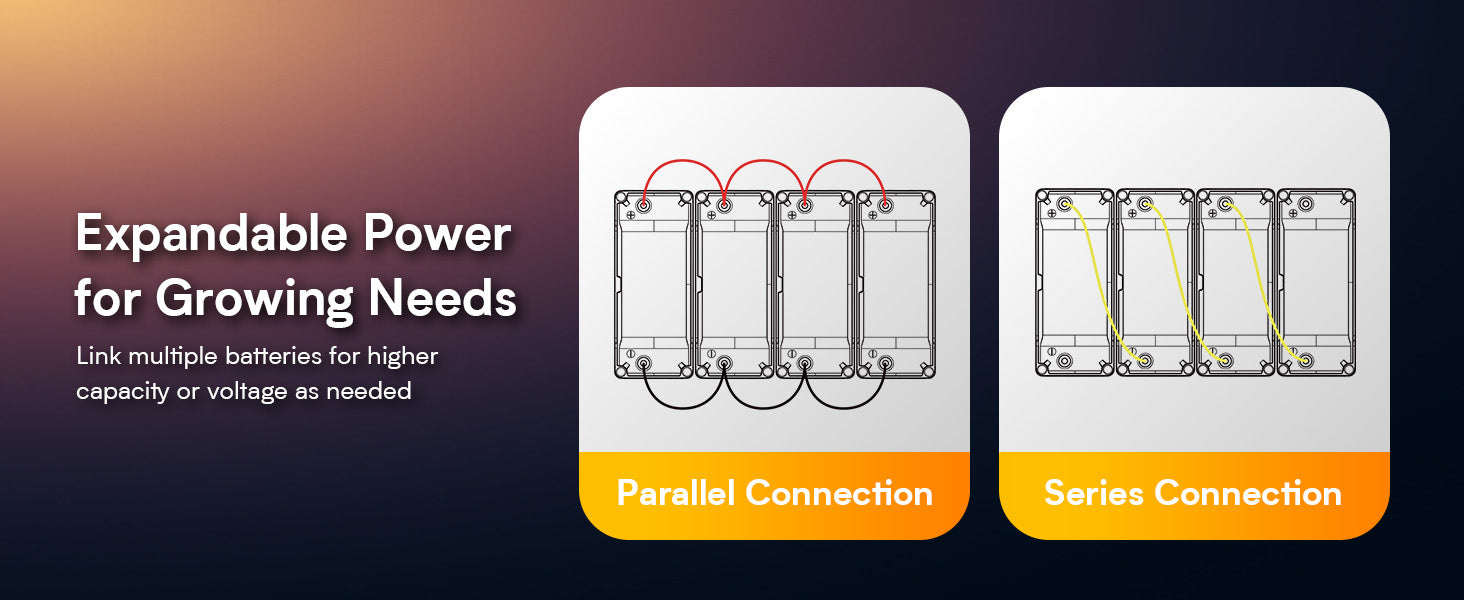

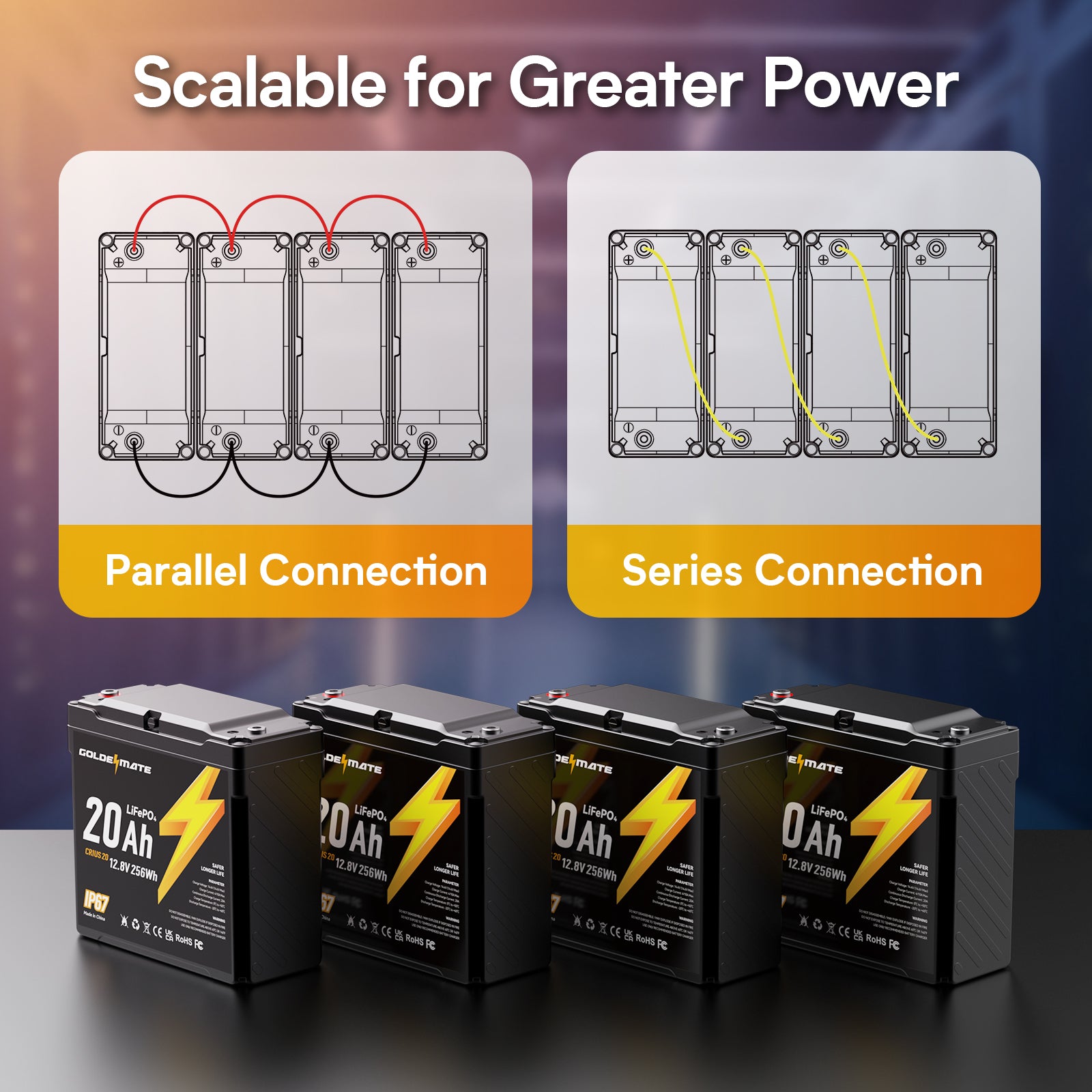

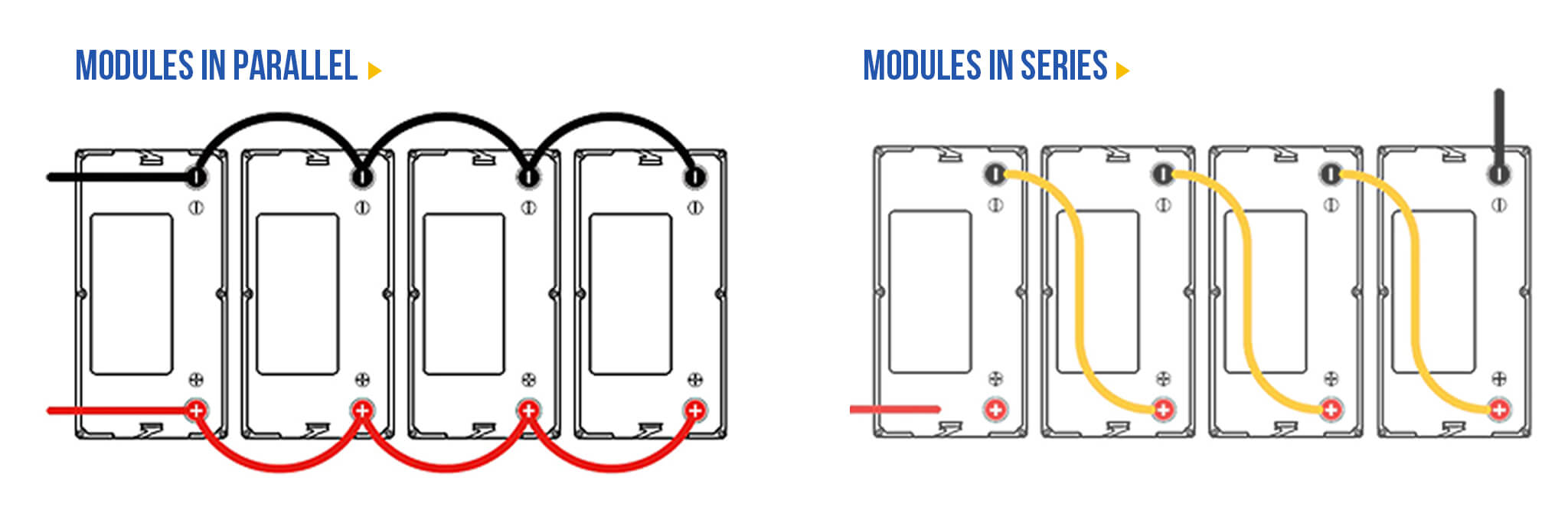

Series and parallel configuration

Use batteries of the same model, age and state of charge. Follow the product instructions for permitted series or parallel configuration, cabling and over-current protection.

Charge voltage: 14.4–14.6 V
Maximum current: 10 A

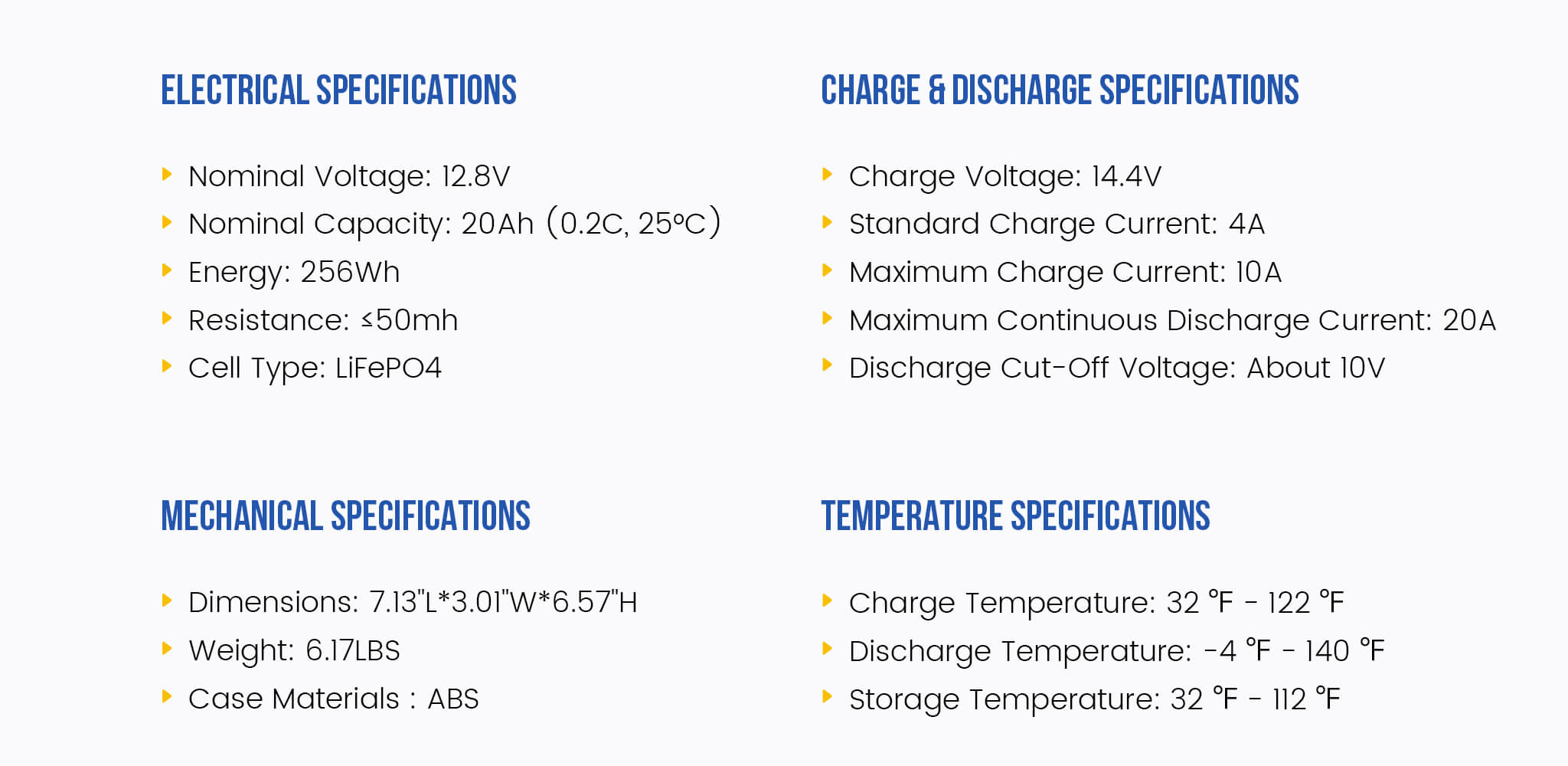

Technical specifications

Product

Model number: CRIUS 20

Electrical

Nominal voltage: 12.8 V
Rated capacity: 20 Ah
Nominal energy: 256 Wh
Cell chemistry: LiFePO4

Charging

Charging voltage: 14.4–14.6 V
Maximum charging current: 10 A

Discharging

Maximum continuous discharge: 10 A
Maximum continuous output: 128 W

Battery management

BMS rated current: 20 A
BMS protections: Overcharge; over-discharge; over-current; short-circuit; temperature

Service life

Cycle life: 5000+ cycles

Configuration

Series / parallel support: Supported; limit not stated

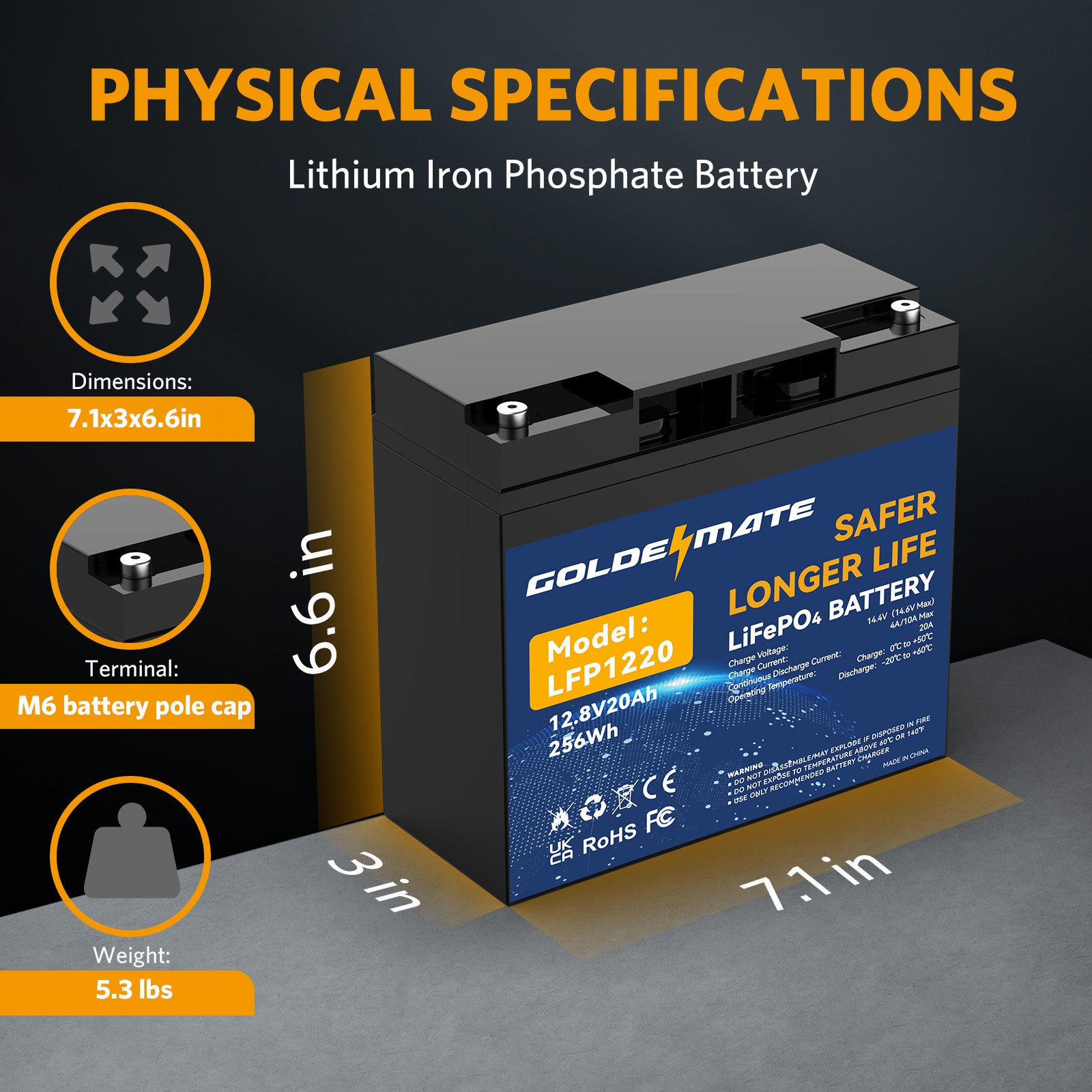

Physical

Terminal type: M6
Ingress protection: IP67
Dimensions (L × W × H): 181 × 76 × 168 mm
Net weight: 2.7 kg

Environment

Charging temperature: 0–50 °C
Discharging temperature: -20–60 °C
Storage temperature: 0–45 °C

Applications

Not for engine starting: Yes

Safety

Use this battery as specified

This battery is not designed for engine starting. Use a LiFePO4-compatible charger and keep voltage, current, temperature, wiring and protection within the published product limits.

Frequently asked questions

Can this battery be used for engine starting?

No. This 12V 20Ah LiFePO4 battery is designed for compatible deep-cycle applications and is not intended as an engine-starting battery.

What charger should I use?

Use a LiFePO4-compatible charger with a 14.4–14.6 V charging profile and keep charging current at or below the published maximum of 10 A.

Can batteries be connected in series or parallel?

Supported configurations must follow the product instructions. Use matching batteries with the same model, age and state of charge, and install suitable cabling and over-current protection.

Can it be charged below freezing?

Do not charge below 0 °C unless the product instructions explicitly confirm an enabled low-temperature charging protection mode. The published charging range starts at 0 °C.

What are the temperature limits, terminal type and dimensions?

The published range is 0–50 °C while charging, −20–60 °C while discharging, and 0–45 °C for storage. This model uses an M6 terminal and measures approximately 181 × 76 × 168 mm. Its published cycle-life figure is 5000+ cycles under the stated test conditions.

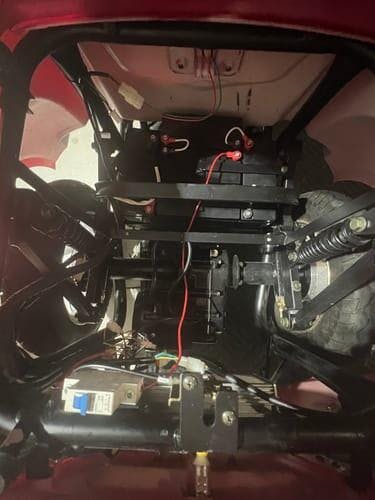

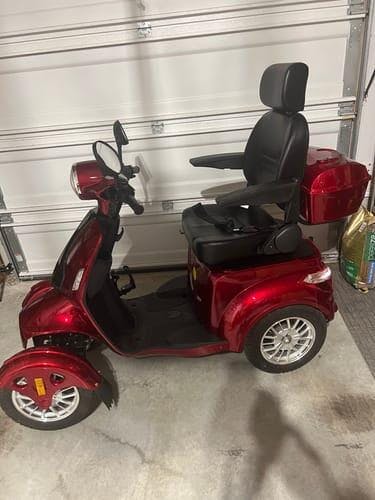

This was an easy upgrade an installation Electric Mobility Scooter. I have also purchased a new Lithium charger that matches the power of these five batteries and said goodbye to the old dry cell batteries and charger. Thank you GoldenMate for a more powerful and longer lasting upgrade.

Great battery for the price

I had bought one of these batteries to power 2 security cameras which are on 24hrs and my automatic gate. Initially the battery worked quite well, but after an overcast day my battery died. I have 200 watts of Harbor Freight solar panels and a 20 amp Renogy charge controller. I decided to buy another battery and hook it up in parallel. I couldn't have made a better decision. Now my bank will last 2 to 3 days in overcast weather. The other day temperature dropped well below freezing, but my battery's BMS apparently took care of all that because they still were able to charge and that only took a couple of hours.

Works great, good value

This battery is good for it's rating. I have it on a solar panel and feeds a small 12 volt water fountain. Works great.

Lightweight

Nice size for a 20Ah battery. Appears well made, 6mm bolts for the terminal. So far no complaints. I have the proper charger for the LiFePO battery but havent had it long enough to see how long it will last

Great battery for portable ham radio ops!

Exactly as in my title, I use this battery for portable ham radio ops. For the size and weight, this thing is just absolutely incredible. I feel sorry for the past generations of radio guys lugging around big hunks of lead to barely get any useful power. I looked up a random lead acid battery that would be equal to this one and it weighs three times as much. And anyone who knows about batteries knows that you will only get about 50% of the rated capacity of a lead acid battery where with a LiFePo4, you'll get much closer to the 90% mark. And the lead acid wasn't even that much cheaper!

Complete no brainer if your use case is similar to mine. For the record, I am running between 5W and 10W of transmitting power (IC-705 for the ham radio people out there), a Raspberry Pi 4 with rig control (stepped down from 12.8V to 5.3VDC with an external converter), a charging setup for an iPad that I use to communicate with the Pi, and a phone charger. Perfect amount of capacity, lightweight, very attractive price point, etc. The built in BMS is just icing on the cake.
