GoldenMate Orion1000 Smart 12V 100Ah Group 31 Deep Cycle LiFePO4 Battery with LCD Display & APP Monitoring

$427.98 $299.99 Save 30%
Shipping calculated at checkout.
Affordable Smart LiFePO4 Lithium Battery, Compatible with All Types of RVs on the Market
  • Smart Bluetooth for easy monitor battery status on GoldenMate App
  • Battery Monitor-LCD Display: Easier to understand the battery parameter information
  • 1/2 Lighter, 1/4 Smaller, 2X energy of 12V100Ah Lead-Acid battery
  • 1280Wh of Energy, 1280W of Output Power

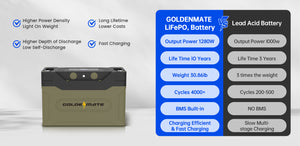

  • 6X Higher Mass Energy Density (41.47Wh/lbs VS. 7.23Wh/lbs of AGM Battery)
  • 10X Charging Efficiency, 2X Operating Time

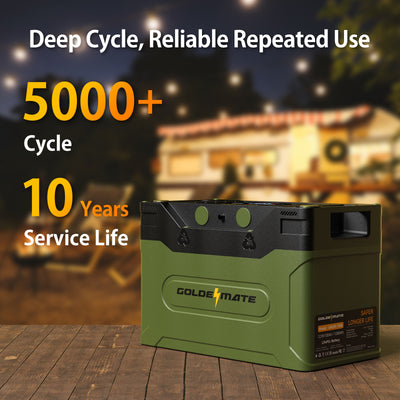

  • EV Grade-A Cells, 5000+ cycles @100%DOD
  • 10+ Years Lifespan & 5 Years Warranty
  • Three communication interfaces: Bluetooth, CAN, RS485.
  • Top EV-Grade LiFePO4 Cells: Lighter, safer, and more efficient LiFePO4 cells
  • 100A BMS (over-charging, over-discharging, over-current, over-temperature, and short-circuit protection)
  • 100A Continuous Discharge/Charge Current, 400A/1S Continuous Discharge Current
  • 20.48kWh Expandable Energy (Max. 4P4S)
  • Low-Temp Cut-Off Protection: Intelligently designed to disable charging at 0℃/32°F and discharging at -20℃/-4°F, safeguarding your battery in extreme conditions
  • Suitable for RVs/Camping/Trolling Motor/Solar/Home Storage/Off-grid
  • IP67 Waterproof & Dustproof: Double protection ensures reliability.
  • Clean/Eco-friendly/Cost-effective
  • Low TCO & Zero Maintenance Fee
  • Fast Delivery & Excellent Service
Options: 1 Pack
Warranty: 5 Years Warranty (Free)
45 in stock, ready to ship

See how YouTube use GoldenMate batteries
Poster
Poster

Smart Upgrade, All-New Experience

Featuring EV-grade A cells, this battery offers 5000+ cycles at 100% DOD, exceptional charging efficiency (10X faster), and over 20 BMS protections for maximum safety. Upgraded with Bluetooth 5.0 and Low-Temperature Cut-Off Protection, it ensures reliable performance in any environment. Despite its mini size, it delivers powerful, long-lasting energy with the smallest & lightest design, making it perfect for off-grid, RV, and marine applications.

Are you aware of the current status and various data of the battery in use?

GoldenMate 12V 100AH Orion 1000 LiFePO4 battery comes with added Bluetooth connectivity functionality. By connecting your smartphone to the battery via a dedicated mobile app, you can access various battery data, including State of Charge (SOC), Depth of Discharge (DOD), SOC, cycle count, voltage, current, temperature, capacity, and other important information. This app is compatible with both iOS and Android systems, enabling you to monitor the charging or discharging process anytime and anywhere!

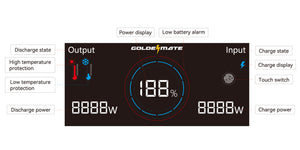

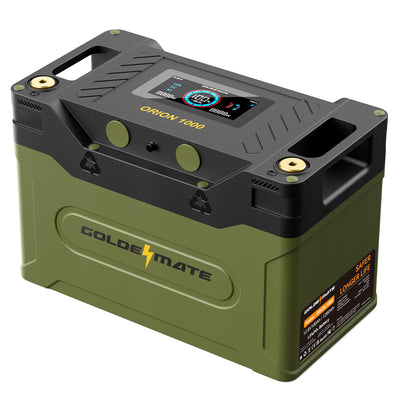

Smart Battery Monitor-LCD Display

GoldenMate 12V 100AH Orion 1000 LiFePO4 battery has been upgraded with an LCD display. This display provides detailed battery usage information, including the remaining charge level, temperature, as well as any abnormal conditions such as over-temperature, over-voltage, overcharging, and over-discharging. This allows for easy monitoring and management of the battery's performance and safety.

Don't you want your battery to last longer?

Orion1000 trolling motor battery can perfectly replace your old lead-acid batteries. One Goldenmate Orion1000 12V 100Ah Smart LiFePO4 battery can release the same energy as two 12V 100Ah lead-acid batteries(1C discharging). Plus, the Orion1000 LiFePO4 battery weighs lighter and is smaller. In the same space, you can get much more energy but weigh much lighter.

Go as Your Heart Desires

Provides 100% 1.28kWh energy, a 2X increase in power output efficiency over lead-acid batteries (approx. 50% usable capacity in a 12.8V100Ah AGM SLA Lead-acid battery at 1C discharging rate). 1280 Wh energy and 1280W power loads meet your indoor power demands and elevate your outdoor adventure experience. Partners from Now Until Forever. Over a 10-year lifespan provides longer companionship.

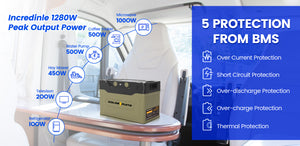

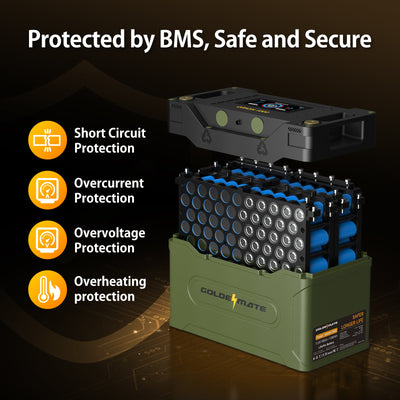

Advanced BMS Technology offers 20+ Protections

Orion1000 build in 100A BMS, which can protect the LifePO4 battery from safety hazards by providing five types of protection: overcharging, over-discharging, overcurrent, short circuit, and the high-temperature environment above 60°C/140°F. It’s a 100% green energy that is free of heavy metals and rare metals, non-toxic, and non-polluting.

LOW-TEMPERATURE CUTTINGOFF PROTECTION

Orion1000 battery offer low-temperature protection features, allowing them to be charged in temperatures ranging from 0°C to 50°C and safely discharged in temperatures from -20°C to 60°C. These batteries can also be stored in temperatures between -10°C and 50°C, ensuring reliable performance in a wide range of environmental conditions, including cold and hot climates.

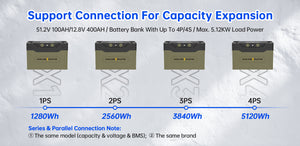

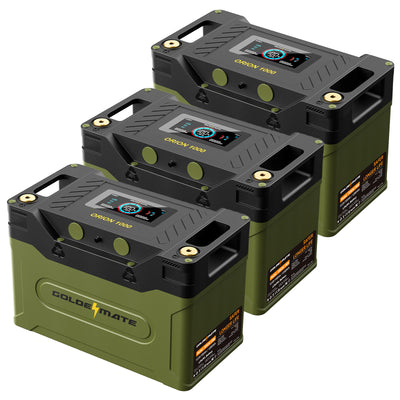

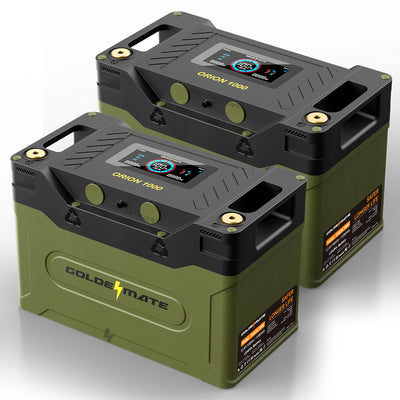

Connect Batteries as Required

Want to build a larger battery system to solve your energy crisis? GoldenMate Orion1000 12V 100Ah LiFePO4 battery supports to connect 16 batteries in 4P4S. You can set up a 51.2V 400Ah battery system to release 20.48kWh of energy. No energy shortage trouble can bother you anymore.

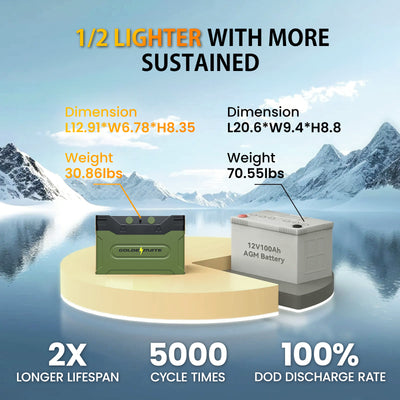

Group 31 Battery Size,Better Meeting Your Needs.

With dimensions of L12.91*W6.78*H8.35 inches, it is equivalent to a Group 31 battery size and saves up to 20% space compared to a 12V 100Ah lead-acid battery, while delivering 200% more energy. Weighing only 30.86 lbs, it is 1/2 the weight of traditional batteries.

All-New Design, Outside & In

Orion1000 uses Grade A cylindrical cells, which provide higher energy density and allow for compact and precise installation, ensuring battery safety without compromising performance. The matte surface treatment, heat resistance, and IP67 waterproof design make the battery more resilient in extreme applications. Whether you're bumping along the road or sailing on water, the GoldenMate Orion1000 offers you the ultimate safety experience.

Versatile Power Solution: Not Just for Marine Use

The Goldenmate Orion1000 12V 100Ah Electric Outboard Motor Battery is a versatile power solution designed not only for marine applications but also perfect for trolling motors, RVs, home storage, off-grid systems, campers,etc. Experience unparalleled performance and reliability across a range of uses, ensuring you have the power you need, wherever you need it.

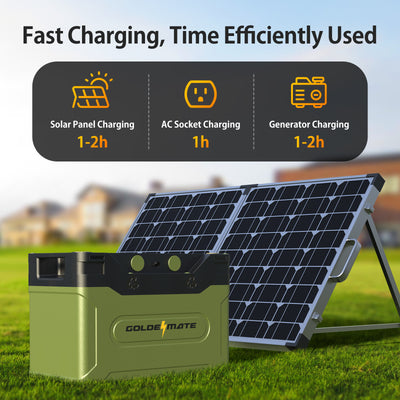

3 CHARGING METHODS

With Max. 1C charging efficiency, you can finish charging it with a 14.6V 20A LiFePO4 charger. Besides, solar panels, generators, and alternators are also perfect charging ways for this lithium battery.

Enhancing battery performance and user experience with the right communication interface technology

Orion supports Bluetooth, CAN bus, and RS485/Modbus for seamless data exchange with various devices and systems, enabling remote monitoring, fault diagnosis, and intelligent control of the Battery Management System (BMS).

  1. Bluetooth:Orion's built-in Bluetooth module transmits real-time battery data to smartphones or other devices for monitoring and remote control.
  2. CAN Bus:The BMS uses the CAN bus to send real-time battery data (e.g., charge, temperature, status) and receive external control commands (e.g., start/stop, charging).
  3. RS485/Modbus:Orion connects to Modbus networks via RS485, collecting data like voltage, current, and temperature for remote monitoring and management.

RECOGNIZED AND SUPPORTED BY 100+ ACCREDITED MEDIA SOURCES WORLDWIDE

GOLDENMATE batteries offer durability, efficient power, and unbeatable pricing. Switch to lithium for a longer cycle life and a better energy experience.

rvlife.com

GoldenMate's affordable batteries are a cost-effective choice for anglers and boaters transitioning to lithium technology, offering exceptional value.

usangler.com

Goldenmate's 12.8V lithium batteries shine with robustness, affordability, and user-friendly features. Plus, they offer a host of additional benefits.

makeuseof.com

GoldenMate's 12V 200Ah LiFePO4 battery is durable, with high-current delivery and an extended service life, ensuring longevity over time!

geekflare.com

GOLDENMATE 100Ah: Versatile for home, outdoors, and solar setups. Packed with features for reliability, a top choice for diverse applications.

nerdtechy.com

Received GoldenMate lithium battery promptly; everything looked great. After using the 200Ah battery, our overall impression is positive.

csginger.com

Ideal for off-grid power, small EVs, boats, RVs, and camping. Features built-in BMS with multiple safety measures for reliable performance.

electronicshub.org

Goldenmate's 12V 100Ah LiFePO4 lithium battery is an affordable choice for off-grid use or RV upgrades, offering reliability and efficiency.

thecampingnerd.com

Frequently asked questions

Our team of dedicated engineers and battery experts are always just a phone call away to answer your questions and make your switch to lithium seamless.
We're here to help you understand how our batteries work and how to implement them in a system that's right for you.
Can’t find what you’re looking for in our FAQS？
Give us a call at +1(877) 591 5875 Or contact us by email: sales@goldenmateenergy.com.

1.Are GoldenMate LiFePO4 Lithium batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. GoldenMate lithium cells are UL-certified for the highest safety and sustainability standards. All GoldenMate LiFePO4 batteries come with an internal Battery Management System, which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, GoldenMate LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

3.Can I charge GoldenMate LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

The GoldenMate 12V 100Ah LiFePO4 batteries can be safely charged between 32°F to 113°F (0°C to 45°C). But when charging under the freezing point, the battery cells may be damaged.

5.How long to charge GoldenMate LiFePO4 lithium batteries?

You can charge our LiTime 12V 100Ah lithium battery with a 12V 10Ah or 12V 20Ah charger, and a full charge will take 10 hours and 5 hours respectively.

7.What to do when receive the battery?

Upon receiving your battery, please note that it may arrive with a low State of Charge (SOC) as a result of the transportation and storage process. To ensure peak performance, we advise promptly charging the battery to prevent over-discharge.

If you intend to store the battery for an extended period without use, we recommend charging it to a SOC 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.

9.What is a group 31 battery?

The group 31 batteries is the most popular battery size, measuring approximately L13* W6.8* H9.44 inch, which is widely used in boats, RVs, home storage, and off-grid. GoldenMate 12V 100Ah deep cycle LiFePO4 battery measures L13* W6.77* H8.43 inch. It is a perfect replacement for group 31 batteries.

11.How much does a group 31 battery weigh?

Being the utmost replacement for the group 31 batteries, GoldenMate 12V 100Ah deep cycle LiFePO4 battery, weighing 24.25 lbs, is 1/5 the weight of a 12V 200Ah lead acid battery (about 130lbs) but equivalent in energy..

13.What is the maximum discharge capacity of a GoldenMate 12V 100Ah lithium battery?

The GoldenMate 12V 100Ah LiFePO4 lithium battery has a maximum continuous discharge of 100Ah and a maximum discharge of 280Ah for 5 seconds.

15.How to charge LiTime 12V 100Ah Bluetooth lithium batteries?

1. Using Solar Panels

The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 400W solar panels. It may take more than one day to fully charge the battery by ≥400W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger.

The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

2.GoldenMate LiFePO4 Lithium batteries as starting batteries?

No. GoldenMate LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

4.How do I store GoldenMate LiFePO4 lithium batteries?

It is recommended to store GoldenMate LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH

6.Can I charge GoldenMate LiFePO4 Lithium batteries with solar panels?

Yes, you can charge GoldenMate LiFePO4 lithium batteries with solar panels. There are 3 ways to charge.

1. Using Solar Panels

The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 300W solar panels. It may take more than one day to fully charge the battery by ≥300W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.

Besides solar panels, there are 2 more ways to charge.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger.

The Recommended Charging Voltage: 14.2V - 14.6V.

The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

8.Does this battery has low-temperature protection?

Yes, this battery has low-temperature charging-off protection. It's recommend to charge the battery during the temperature range: 0℃ to 50℃ / 32℉ to 122℉.

10.How many amp hours does a group 31 battery have?

GoldenMate 12V 100Ah lithium battery is a powerful replacement for group 31 batteries due to its larger capacity than traditional AGM or Lead Acid group 31 batteries. It has a 100Ah capacity and 1280Wh energy, leaving you peace of mind to handle various situations.

12.What is the maximum number of GoldenMate 12V 100Ah lithium batteries connected in series or parallel?

The maximum number of connecting GoldenMate 12V 100Ah lithium batteries in series or parallel is 4 (4S or 4P). Please notice that the GoldenMate lithium batteries can ONLY be connected in series or parallel with the same brand (GoldenMate), same type (lithium), same voltage (V), same capacity (Ah), same BMS and similar purchasing date (within 3-6 months).

14.How do I monitor the battery status?

The 12V 100Ah deep cycle group 31 smart lithium battery, equipped with an integrated Bluetooth module, enables convenient monitoring of the battery status using your smartphone through the GoldenMate App.

16.How many batteries can I connect in sereis or parallel?

The 12V lithium battery from LiTime supports maximum connections of 4 in series and 4 in parallel. Allow you to build up a maximum battery system of 16 battery units with 20.48kWh Max. capacity and 20.48kW of Max. power.

Note: To connect in series or /and parallel, batteries should meet the below conditions:

a. identical batteries with the same battery capacity (Ah) and BMS (A);

b. from the same brand (as lithium battery from different brands has their special BMS);

c. purchased in near time (within one month)
