MPPT vs PWM: Picking the Best Solar Charge Controller

If you use solar power, you need a solar charge controller. Solar charge controllers manage your solar system's power flow. They regulate how your solar panels charge your batteries. The two main types of solar charge controllers are MPPT and PWM. So how do you choose between them? We'll compare MPPT and PWM controllers in this article. We'll look at what each one does, their pros and cons, and which one is better for different solar setups. Keep reading to learn how to pick the best controller for your needs.

MPPT vs PWM: Picking the Best Solar Charge Controller

What is MPPT?

Definition and Functionality

MPPT stands for maximum power point tracking. MPPT controllers maximize the power output from your solar panels.

They use advanced electronics to improve energy collection from photovoltaic arrays. They function as an intelligent middleman between solar modules and the battery. They take advantage of each solar panel's peak capacity in all conditions.

MPPT Pros

  • MPPT charge controllers are Very efficient. They can harvest way more energy from your solar panels.
  • They can still pull a lot of power on cloudy days or early/late in the day.
  • They can charge batteries faster, thanks to higher efficiency.
  • They are perfect for powering larger loads and expansive solar setups.

MPPT vs PWM: Picking the Best Solar Charge Controller

MPPT Cons

  • They are a lot more expensive than regular controllers.
  • They have a complex circuitry. This means that they have more parts that could eventually fail.
  • They often provide more power than needed for small solar setups

What is PWM?

Definition and Functionality

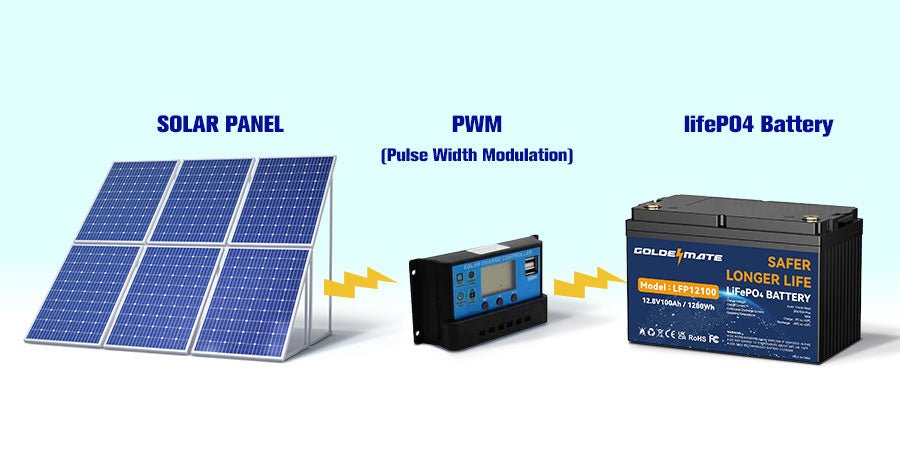

PWM stands for pulse width modulation. It is the method used in standard solar charge controllers to regulate charging.

A PWM controller charges batteries by turning the power flow from solar panels on and off rapidly. The pulse rate can be increased or decreased to regulate the charging current.

PWM Pros

  • It’s a simple technology with few parts. This makes them affordable.
  • They’re reliable since not much can go wrong
  • A PWM charge controller is a good fit for small solar setups.

MPPT vs PWM: Picking the Best Solar Charge Controller

PWM Cons

  • They’re not as efficient as advanced controllers. More energy is lost when they're used.
  • Low performance in low light or extreme temperatures (hot or cold).
  • PWM controllers may not be the best choice for large solar arrays or complex systems.

MPPT vs PWM Comparison

Now let's dive deeper into how MPPT and PWM controllers stack up across some factors:

System Size

In general, MPPT controllers work better for bigger solar power systems. Their advanced power harvesting pays off more when you have more panels. PWM controllers are best for smaller, budget solar setups like RVs, boats, and cabins.

Efficiency

MPPT technology is a lot more efficient than PWM, often by 25% or more. So with MPPT, you can meet your power needs with fewer solar panels. Or get more power from the panels you have.

Cost

MPPT controllers cost more than PWM controllers. Advanced MPPT circuitry is complex, requiring more advanced parts. PWM controllers are simple, using mostly capacitors and transistors. This makes them more affordable.

MPPT vs PWM: Picking the Best Solar Charge Controller

Scalability

MPPT controllers excel if you want to expand your solar system later. Their high efficiency and wide input voltage range can take on added panels or batteries down the road. PWM controllers have more limited input and output specs.

Temperature Conditions

Solar panels lose efficiency in hot weather. MPPT technology counteracts these losses much better than PWM can. So MPPT makes the most of your solar panels year round.

Array to Load Ratio

If your solar array generates a lot more power than your loads use, an MPPT controller is recommended. They're optimized for solar arrays with high output relative to the battery and loads.

Module Type Compatibility

MPPT controllers work well with both standard panels and high-voltage panels. PWM controllers can typically only handle standard 12V nominal panels. High-voltage panels need MPPT to step down their output.

Specific Factors Influencing the Choice

Several key criteria should guide your MPPT vs PWM selection...

Temperature Conditions

MPPT handles wide temperature variation better. So if you live where it gets very hot or cold, MPPT is advised.

Array to Load Ratio

If your panels can generate a lot more power than your loads need, MPPT controllers will manage that ratio better.

MPPT vs PWM: Picking the Best Solar Charge Controller

Solar Module Type

Using newer, high-efficiency panel types? MPPT plays well with different modules. PWM may not work with high-voltage panels.

Practical Considerations

Focus on your budget, system size, and needs. In a modest budget RV or boat setup? PWM is likely the best solar charge controller for you. Have a large home power system? MPPT will be worth the investment.

Choosing the Right Controller for Specific Needs

Think about your typical solar harvest and loads. Size your controller appropriately, with some room to grow. Under-sizing leads to clipping production. Over-sizing costs you more upfront. Pick MPPT or PWM technology per your budget, needs, and site specifics. Proper solar charge controller selection prevents issues down the road!

MPPT vs PWM: Picking the Best Solar Charge Controller

Features and Options in Solar Charge Controllers

Additional controller features may also sway your decision. Consider display types, remote access, battery temp sensors, and software integration needs.

Considerations for Multiple Solar Chargers

Larger solar power systems sometimes benefit from multiple synchronized charge controllers. Make sure your controllers can communicate, dividing up tasks efficiently. This prevents conflicts or battery problems.

MPPT vs PWM: Picking the Best Solar Charge Controller

Conclusion

MPPT and PWM take different approaches to charging batteries from solar panels. MPPT is more advanced and efficient. PWM is simpler and more affordable. The size of your solar system, performance needs, and budget help determine the best choice. We recommend PWM for small-scale battery charging applications like RVs, boats, and remote shelters. MPPT is ideal for larger home power setups, off-grid homes, and grid-tied systems with net metering. It also makes the most of high-efficiency solar modules.

We hope this overview has helped explain MPPT vs PWM solar charge controllers! Check out our website to find the perfect controllers for your solar power system. Get in touch if you need any guidance picking the best options for your unique setup. Investing in the right controllers keeps your batteries charged and reliable for years of service.
