Lithium iron phosphate (LiFePO4) batteries are popular in many applications due to their enhanced safety features, high energy density, and long life cycle. Most users wonder whether it is advisable to charge a LifePO4 battery fully. While charging LifePO4 batteries to 100% is not bad, they require careful consideration and good charging practices to maximize their lifespan and performance.

This article will delve into a profound overview of LifePO4 batteries and address the most frequently asked questions regarding LifePO4 battery charging.

Understanding LiFePO4 Battery Chemistry

Overview of Lithium Iron Phosphate vs Other Lithium Batteries

Simply put, lithium iron phosphate (LiFePO4) batteries are hybrid versions of lithium-ion batteries. While the latter has about 500 charge cycles, the latter can be charged and discharged over 2000 times during its lifespan. The technology of LiFePO4 batteries uses phosphates as cathode material instead of other hazardous elements, such as lead or cobalt, commonly used in other rechargeable batteries.

Besides being environmentally friendly, the LiFePO4 batteries are safer and withstand higher temperatures, offering superior chemical and thermal stability. The atom arrangement in LiFePO4 batteries forms a 3D network of lithium ions, unlike the 2D slabs of lithium cobalt oxide (LiCoO2) or lithium nickel manganese cobalt (NMC) batteries. The batteries operate by moving between negative and positive electrodes to charge and discharge.

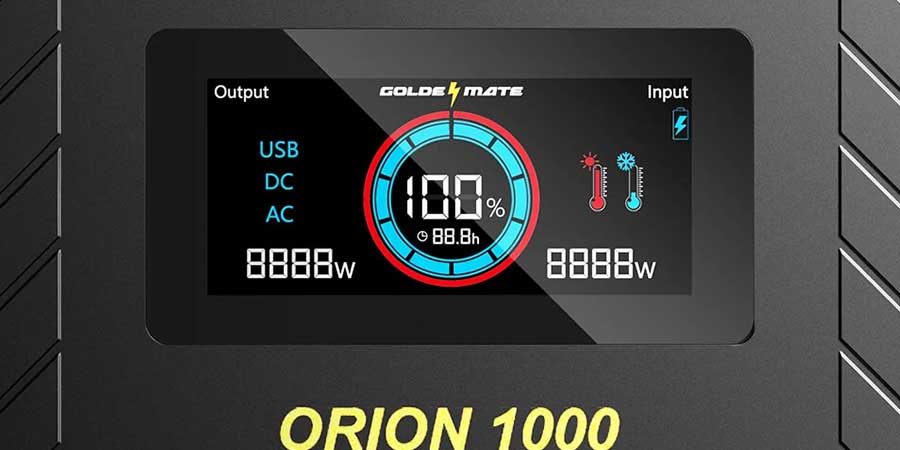

Is It Bad to Fully Charge A LiFePO4 Battery

The Charge Voltage

A single LiFePO4 battery cell has a nominal charge of 3.2 V and a charge voltage of 3.50-3.65V. Lithium battery cells are sensitive to over current and over voltage; therefore, the charge voltage must not exceed 3.5v. Overvoltage significantly causes degradation of battery cells and performance and inflation.

The recommended charge voltage for the 12.8V MonoBlock battery is 14.4V. The charge voltage range must be 14.0V-14.6V. Refer to the table below to understand the different voltages for LiFePO4 battery packs.

Number of Cells	Nominal Voltage	Minimum Voltage (Cutoff)	Standard Charge Voltage	Fully Charged Voltage
1 Cell	3.2V	2.5V	3.6V - 3.65V	3.65V
2 Cells	6.4V	5.0V	7.2V - 7.3V	7.3V
3 Cells	9.6V	7.5V	10.8V - 10.95V	10.95V
4 Cells	12.8V	10.0V	14.4V - 14.6V	14.6V
8 Cells	25.6V	20.0V	28.8V - 29.2V	29.2V

Advantages of LiFePO4 Batteries

LiFePO4 Batteries have many benefits compared to other lithium batteries and lead-acid batteries. These are some advantages:

Long life and less degradation: The lifespan of LiFePO4 Batteries is longer compared to other rechargeable batteries. They can live to 5000 charge and discharge cycles at 80 percent depth without decreasing performance. Other batteries live to an average of just two years.
No active maintenance needed: Lithium iron phosphate batteries (LiFePO4) do not need maintenance to extend their life or improve performance. Due to a lower self-discharge rate, they also have no memory effects. Comparably, lead-acid batteries require special maintenance to avoid degradation.
Withstands extreme temperatures: Lithium iron phosphate (LiFePO4) can operate optimally on a wide temperature range, making it ideal for applications undergoing extreme temperatures and weather conditions.
High discharge rates: The sole reason LiFePO4 batteries are most popular is their ability to handle high discharge currents. This makes them the ideal batteries for starting heavy engines and running high-voltage electrical devices.
Environmentally Friendly: Lithium iron phosphate (LiFePO4) batteries are environmentally friendly and free of harmful metals. They are non-toxic, do not pose a contamination risk, and are more affordable compared to other lithium-ion and lithium-polymer batteries.

Charging Dynamics of LiFePO4 Batteries

Recommended Charging Guidelines

The recommended charging current may vary depending on the battery's size and application. These are some general guidelines.

Standard charging current: The recommended standard charging for LiFePO4 Batteries is between 0.2C to 1C.
Fast Charging Current: These batteries can accommodate higher charging currents when fast charging. The fast-charging current is between 1C and 3C.
Balancing charging: It is recommended to balance LiFePO4 Batteries when charging to ensure all cells are equally charged. The balancing current ranges between 0.1C and 0.2C.
Trickle Charging: A trickle charging current between 0.1 and 0.05 can maintain a charge level when the LiFePO4 battery is full.

Charging Process and Stages

After long-term usage of LiFePO4 Batteries, the battery power will need to be replenished in time. Here are the most common methods to charge a LiFePO4 battery:

Constant Voltage Charging

During this stage, the charging power source output voltage remains constant. The charging current adjusts as the state of the battery pack changes. Once the battery reaches the set voltage, the charger switches to a constant voltage mode, allowing the current to decrease gradually until the battery is fully charged.

This method only focuses on changes in a single stage of battery usage; it doesn't reflect the battery's general charging status. This type of charging is rarely used as the initial charging current is too large, damaging the battery.

Constant Current Charging

During constant current charging, the current is maintained constant by changing the output voltage according to the battery charge. The charging rate is relatively low, given the charging current is kept constant. The battery's ability to receive electricity decreases in the later charging stages since the acceptable current capability gradually reduces as the charging proceeds.

The main advantages of this method are its ease of implementation, convenience, and simplicity. It is also easier to calculate the battery's charging capacity.

Constant Current and Constant Voltage Charging

This charging method is a combination of the two charging methods above. However, the two methods are used in stages. The first stage adopts the constant current charging model to avoid excessive current overflow at the beginning of the constant voltage charging. The second stage evades overcharging caused by continuous current charging by implementing constant voltage charging.

When used concurrently, the two methods prefer each charging method at a particular stage by avoiding the cons of the other method. Implementing constant current and voltage limiting regulates charging by reducing overcharging, which reduces damage.

Chopping Charge

In this approach, the current from the constant current source remains steady. At the same time, a switching transistor is controlled to alternate between being on and off for specific intervals, repeating the process in a continuous cycle. The main advantage of this method is that the battery is charged through an external circuit.

When the battery is charged through an external circuit, the ion generation inside the battery requires a particular response time. Continuous charging without pauses may reduce its capacity potential.

By using controlled switching, where charging is briefly stopped after a certain period, the ions at the battery's two poles have time to diffuse, allowing the battery to "digest" the charge.

This approach significantly improves the utilization of the lithium iron phosphate battery pack and enhances the overall charging effectiveness.

Potential Risks of Fully Charging LiFePO4 Batteries

Generally, LiFePO4 (Lithium Iron Phosphate) batteries are safer compared to other types of batteries. There are, however, some potential risks of charging the battery to 100%. They include:

Reduced Life Cycle: Overcharging may degrade the battery's chemical composition over time. This may lead to a decline in its overall life cycle, meaning you might have to replace it sooner than expected.
Slight Capacity Loss: Batteries capacity declines over time. However, a slight loss of capacity over time due to a full charge may affect the battery's effectiveness.
Thermal Issues: Although LiFePO4 (Lithium Iron Phosphate) batteries have good thermal stability, overcharging might lead to heat build-up. Although the possibility is still low, the heat might stress the cell over time.

Best Practices for Charging LiFePO4 Batteries

Charging LiFePO4 battery packs correctly is essential for maximizing their lifespan and ensuring safe operation. This is a step-by-step guide on charging lithium batteries.

Prepare the charging area: Maintain a clean charging area. Ensure it is well-ventilated, clean, dry, and free of any flammable materials.
Check the battery specifications: Check that the battery specifications match the charger requirements to ensure compatibility.
Connect the charger: Plug the charger into a power source and attach the charger's connectors to the battery terminals.
Monitor the charging process: Check whether the battery is charging correctly. During charging, monitor the battery's temperature. If the temperature seems to become excessive, stop the charging immediately. Charging is complete when the current level is at a minimum level in the CV phase.
Disconnect the charger: Turn off the charger and unplug it from the power source. Remove the charger and store the battery in a cool, dry place if you don't intend to use it immediately.

Safety Charging Precautions

You can follow several guidelines as best practice to charge your Li-ion battery safely. These are some to consider:

Use the Correct Charger

It is best practice to use the charger with the correct specifications for your battery. This ensures they are most compatible to avoid any malfunction. When selecting a charger, consider those with built-in features such as:

Overvoltage Protection: Prevents the charger from exceeding safe voltage limits.
Temperature Monitoring: Helps detect and mitigate potential thermal issues.
Adjustable Charging Profiles: Allows for customized charging settings based on battery specifications.

Monitor the Charging

Do not leave your battery unattended. Perform regular checks to ensure seamless charging. Your response time to an emergency will be quicker. It also helps you to keep checking that the battery doesn't exceed your preferred charge capacity.

Do Not Charge to Full Capacity

It is recommended to charge LiFePO4 batteries to 80 percent and not 100 percent. This practice will help reduce the risk of overcharging and significantly improve the battery's life cycle.

Follow Manufacturer Guidelines

Each battery model may have specific requirements that should be followed to ensure safe and effective charging. Always refer to the manufacturer's recommendations and guidelines for charging LiFePO4 batteries.

Conclusion

While the most critical concern should not be whether it is bad to fully charge LiFePO4 batteries, properly charging LiFePO4 batteries is crucial to ensure their longevity, safety, and optimal performance. Charging LiFePO4 batteries to around 80-90% for regular use is generally recommended. Charging them to 100% occasionally can help balance the cells, but frequent full charges may reduce their lifespan.

By using a dedicated LiFePO4 battery charger, following recommended voltage levels, and adopting best charging practices, users can maximize the benefits of LiFePO4 batteries in various applications.
