A Complete Guide to Deep Cycle Battery Testing
Jan 22, 2024
A deep cycle battery is a type of battery that can deliver steady power for a long time before needing a recharge. Deep cycle batteries are used when you need steady power for a long time, like in a golf cart, boat, or camper. Testing a deep-cycle battery can tell you if it is still good or needs replacing. This article will teach you how to test different kinds of deep-cycle batteries.
Understanding Deep Cycle Batteries
Definition and Function
Deep cycle batteries are capable of discharging power over and over. This is different from starter batteries used in cars. Starting batteries discharge large bursts of power only when starting the engine. Deep cycle batteries provide steady power over long periods of time. They can get drained down a lot before needing a recharge.
Types of Deep Cycle Batteries
Below are types of deep cycle batteries.
Flooded Lead-Acid Batteries
Flooded lead-acid batteries are the most common type of deep-cycle battery. They contain a liquid sulfuric acid called electrolyte. The electrolyte surrounds the lead plates inside the battery. These batteries have removable caps. From the caps, you can check the electrolyte level and add distilled water when necessary. The battery plates sit immersed directly in the liquid electrolyte. Flooded batteries have to be mounted upright so the electrolyte won't spill. The liquid electrolyte makes them the least expensive type of deep-cycle battery. But they need more maintenance than other types.
Gel batteries have the electrolyte mixed with silica powder to turn it into a gel. This gel can't spill or leak out if the battery is tipped. The gel holds the electrolyte in place and coats the plates inside the sealed battery case. Gel batteries don't require adding water. Their sealed construction makes them good for boats and RVs that move around. But they are more expensive than flooded batteries.
AGM (Absorbent Glass Mat) Batteries
AGM stands for absorbent glass mat. These batteries have the electrolyte soaked into fiberglass mats. The mat keeps the electrolyte from spilling. The mats are stacked between the lead plates inside the battery case. This construction makes AGM batteries very resistant to vibrations and movement. AGM batteries are maintenance-free, with no need to add water. Their sealed case also makes them safe to mount in any position. But they cost more than flooded lead-acid batteries.
Tools and Equipment Needed
Testing deep-cycle batteries requires a few important tools:
This tool measures volts and amps in the battery. You connect the leads of the multimeter to the battery terminals to get digital voltage readings. This helps you know the battery charge.
For flooded lead-acid batteries, a hydrometer measures the strength of the liquid electrolyte. You use it by drawing a sample of the electrolyte into the hydrometer tube and reading the float scale.
Battery Load Tester
This tool puts an electric load on the battery to simulate real-world discharging. It shows if the battery maintains voltage under strain.
Testing batteries can be dangerous because of acid burns or explosive gases. Always wear thick rubber gloves and eye protection when testing. Long sleeves help protect your skin as well.
Having the right gear makes testing easier and safer. The multimeter and hydrometer let you check voltage and acid strength. The load tester shows performance under strain. And safety equipment keeps you protected.
Before doing full testing, it helps to do some simple checks first:
Inspect Battery Terminals and Connections
Make sure the battery terminals are clean and tight. Look for any frayed cables or bad connections that could affect performance. Loose or corroded connections can cause problems.
Check Battery Voltage
Use a multimeter to read voltage when the battery is disconnected and rested. This "open circuit" voltage shows the charge level. Then, take a "resting" voltage reading when the battery is in the device but is turned off. Compare to ideal readings.
Look at the battery case and caps for any cracks, leaks, bulges, or damage. These could mean internal issues. Also, check for low fluid levels in flooded batteries. All signs of physical damage should be fixed.
Doing preliminary visual and voltage checks first provides early warning of any problems. It's good to spot issues before they cause failure during important discharging uses. These simple steps don't take long but help you know battery health.
There are a few ways to test deep-cycle battery conditions:

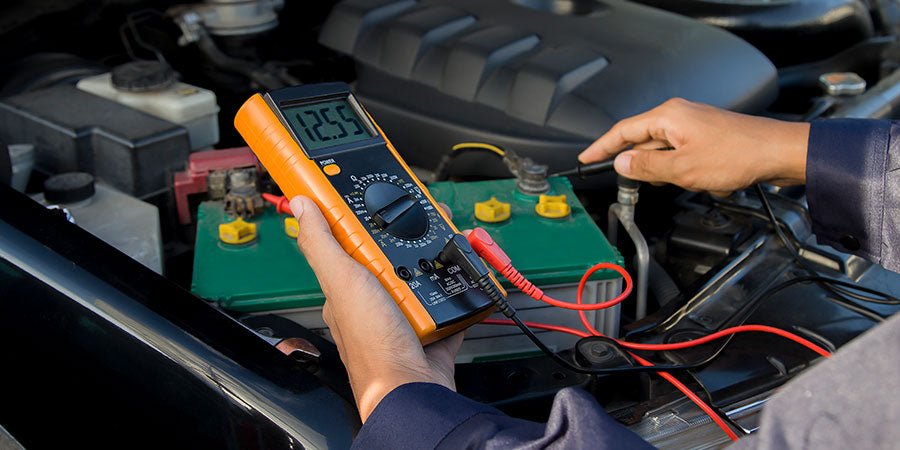

Using a Multimeter
Use a multimeter to measure voltage. Check when the battery is relaxed and again when in use. Healthy batteries stay above 12.4 volts relaxed and over 9.6 volts when used. Low voltage indicates a problem.
Specific Gravity Testing
Using a Hydrometer
For flooded lead-acid batteries, use a hydrometer to test the liquid electrolyte. This checks the acid strength and charge level. The ideal is 1.265-1.299 specific gravity. When it falls below 1.200, the battery needs charging. Over 1.300 is overcharged.
Using a Battery Load Tester
Use a battery load tester to put an electric drain on the battery. This simulates real discharging. Check the voltage under different loads. Big voltage drops indicate weak or damaged batteries. Healthy batteries stay above 9.6 volts when load-tested.
Using a Conductance Tester
For sealed AGM and gel batteries, conductance testers use signals to check the internal condition without opening them up. The tester sends small electrical signals through the battery and measures the conductivity. Good conductivity means the internal parts are intact and working well. This gives an overall picture of the battery's health inside.
Testing voltage, acid gravity, load performance, and internal conductance is very important. It helps to give a complete picture of the battery condition. The different tests show state of charge, weakness, and internal issues. Using all the methods allows early detection of any problems.
Interpreting Test Results
Healthy deep-cycle batteries should have resting voltages of 12.4-12.7 volts. Voltage under 12 when rested could mean the battery needs recharging.
The ideal hydrometer reading for flooded batteries is 1.265-1.299 specific gravity. Under 1.200 means the battery is discharged and needs recharging. Over 1.300 suggests possible overcharging.
Load Test Results
A good battery will stay above 9.6 volts on a load tester even when discharging a high current. Dropping below 9.6 volts indicates a weak or damaged battery. Also, check how much the voltage drops during load testing. Small drops are good, while big drops indicate problems.
Overall, compare results to the recommended levels. Low voltage, gravity, and load readings can show if the battery needs recharging or replacing. The hydrometer checks the acid, while the load tester checks performance. At any sign of problems, take action to restore the battery or replace it if needed. Monitoring test results helps avoid failure at the wrong moment.
Testing a deep-cycle battery with voltage, load, gravity, and conductance is essential. Regular checks allow you to see if the battery needs recharging or replacing before failure. A multimeter checks rested and in-use voltage to ensure they work fine. For flooded batteries, use a hydrometer to test the liquid acid strength to check if it is in an excellent specific gravity range. Check performance under load with a battery load tester and monitor voltage drop. Compare all results to the recommended specs. If readings are low, take action to recharge or replace the battery. Testing the battery regularly helps avoid getting stranded when the battery dies. Knowing how to test different types of deep-cycle batteries yourself has many benefits. It allows you to check their condition and catch any problems early. You also don't need to spend too much due to battery failure.
