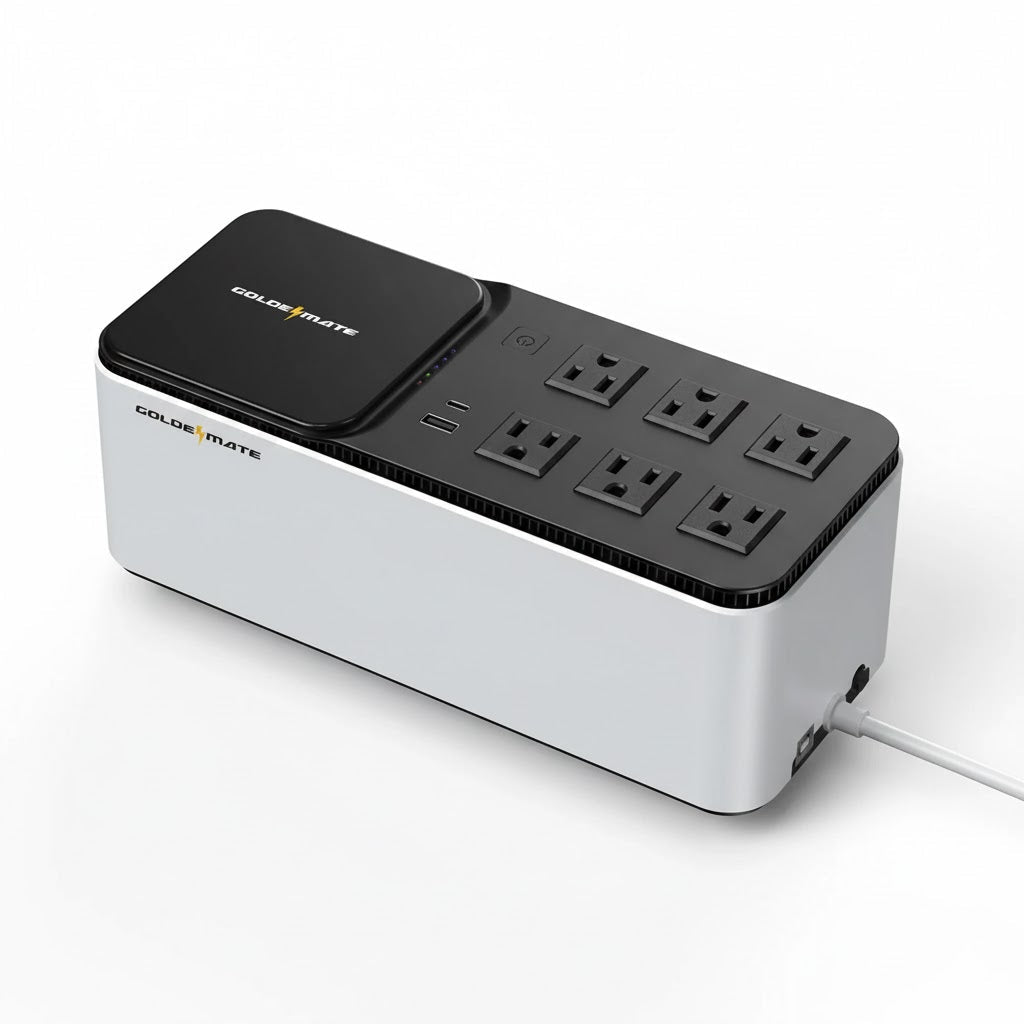

GoldenMate provides 600 VA / 360 W simulated sine wave backup, a 76.8 Wh LiFePO4 battery, six outlets and USB charging for compatible desktop, network and monitor equipment. Do not connect laser printers, pumps, shredders or fan and motor loads.
Key specifications
The numbers that matter when matching backup power to your setup.
Reference runtime
~10 min @ 300W
Reference load: 300 W. Actual runtime changes with connected load, battery condition, and operating environment.
UPS capacity
600 VAApparent-power rating for equipment sizing.
Rated output
360 WActive power available to connected devices.
Battery reserve
76.8 WhLiFePO4 energy storage.
Output connections
6Total outlets available for connected equipment.
Recommended load
216-252 W
Output waveform
Simulated Sine Wave
Transfer response
≤10 ms
Battery life
3000+ cycles
Compact protection for essential electronics
Compact backup
Short-term backup for essential desktop loads
600VA / 360W capacity provides standby backup for compatible computers, network devices and monitors in a compact form factor.
LiFePO4 energy
76.8Wh battery for brief outages
The 25.6V 3Ah LiFePO4 battery delivers about 10 minutes of reference runtime at 300W and should be operated within the specified load limits.
Choose compatible equipment
Built for electronics, not high-inrush appliances
This model uses simulated sine wave output. Use it with compatible electronics; do not connect laser printers, pumps, shredders or fan and motor loads.
Short-term backup for the moments that matter
300W
Approx. 10 min @ 25°CCompatible computer, monitor and network loads
Reference result from the product manual under standard test conditions. Actual runtime varies with load, temperature, battery condition and connected equipment.
Runtime varies with connected load, battery condition, and operating environment.
Protection that fits the way you work
Desktop computer and monitor
Short-term backup for a compatible workstation or display setup within the 360W rated output.

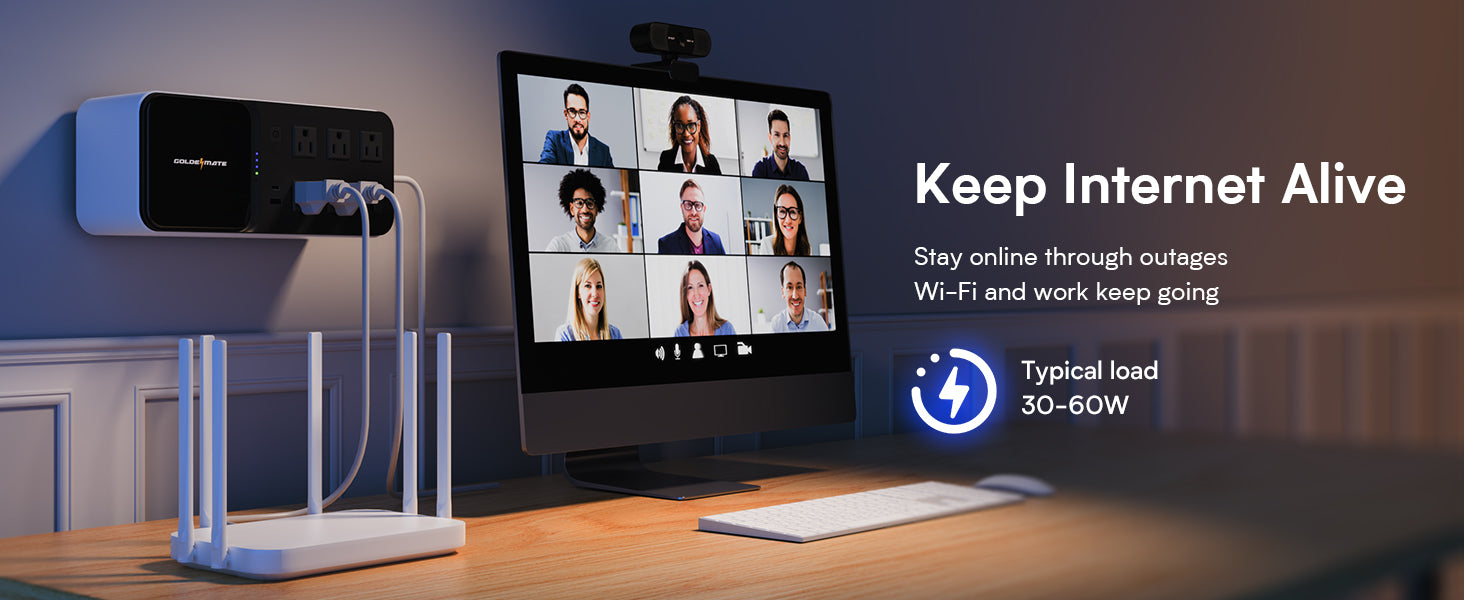

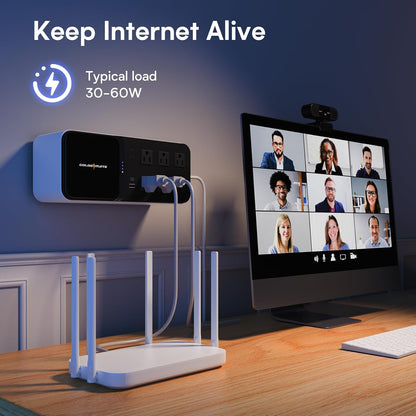

Router and network equipment
Support compatible network equipment during a brief mains interruption.
Compact home or office placement

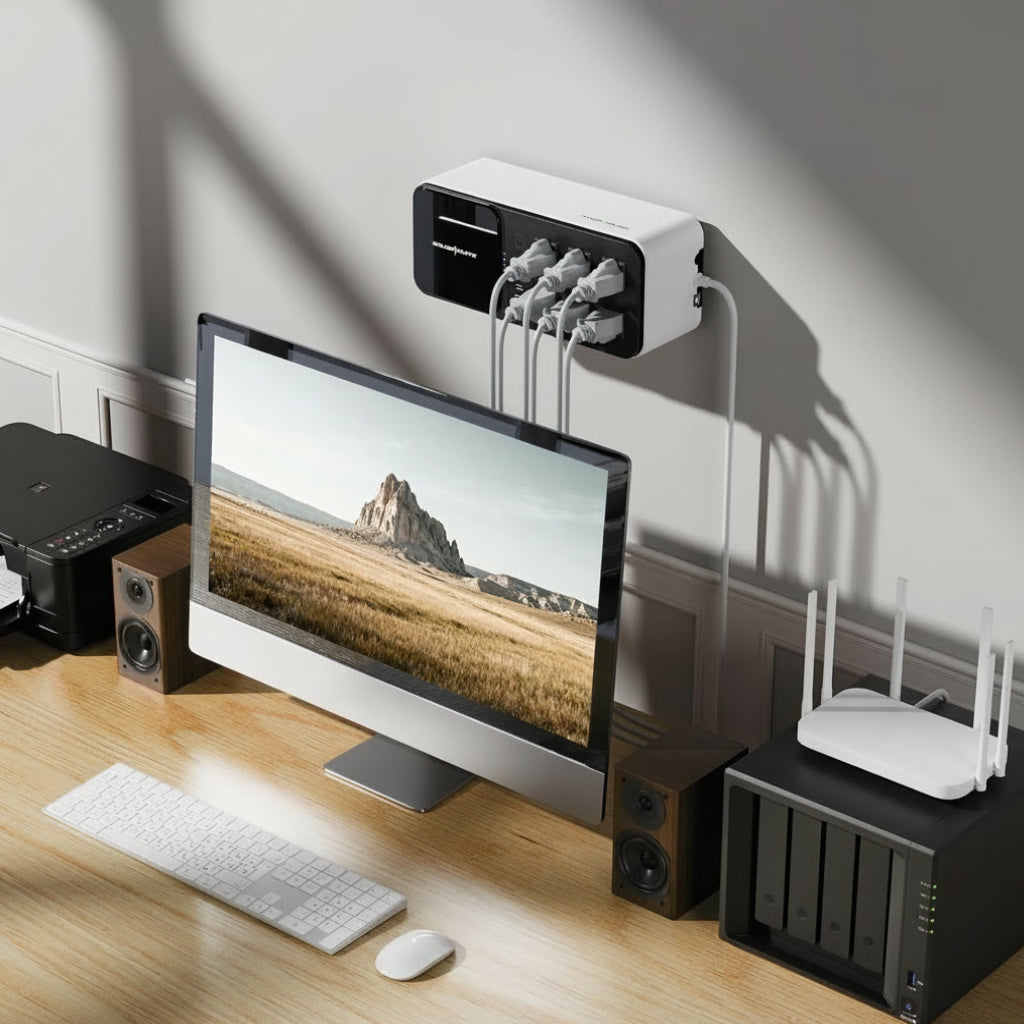

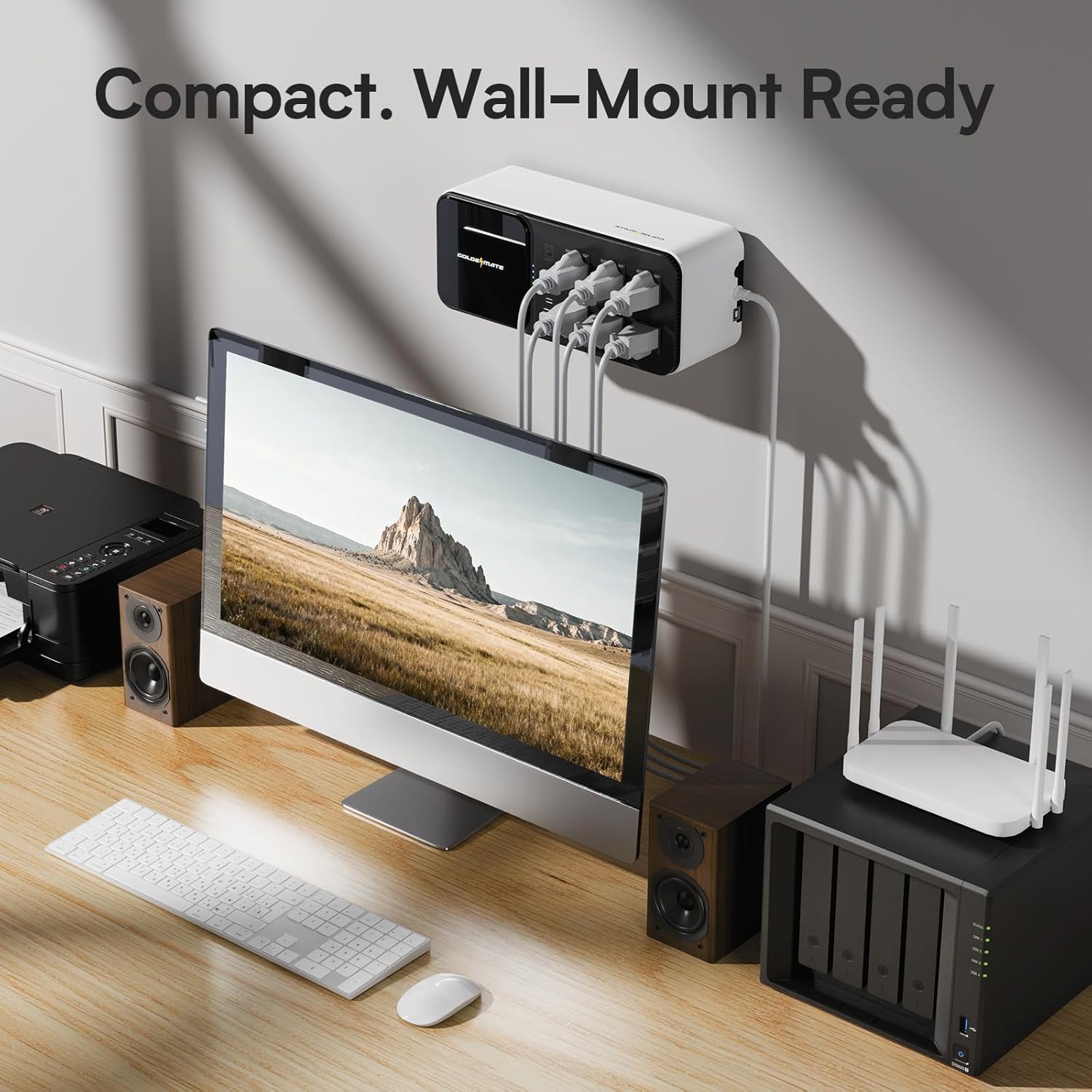

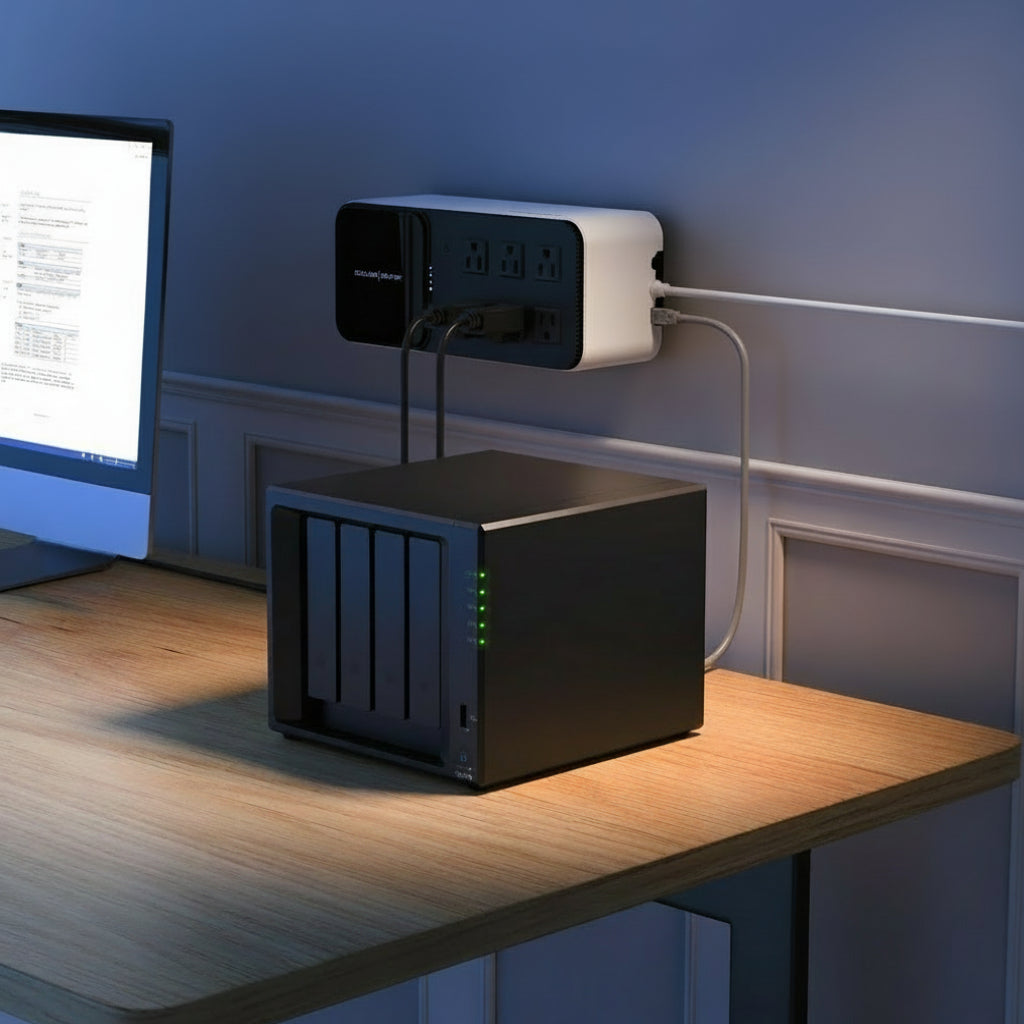

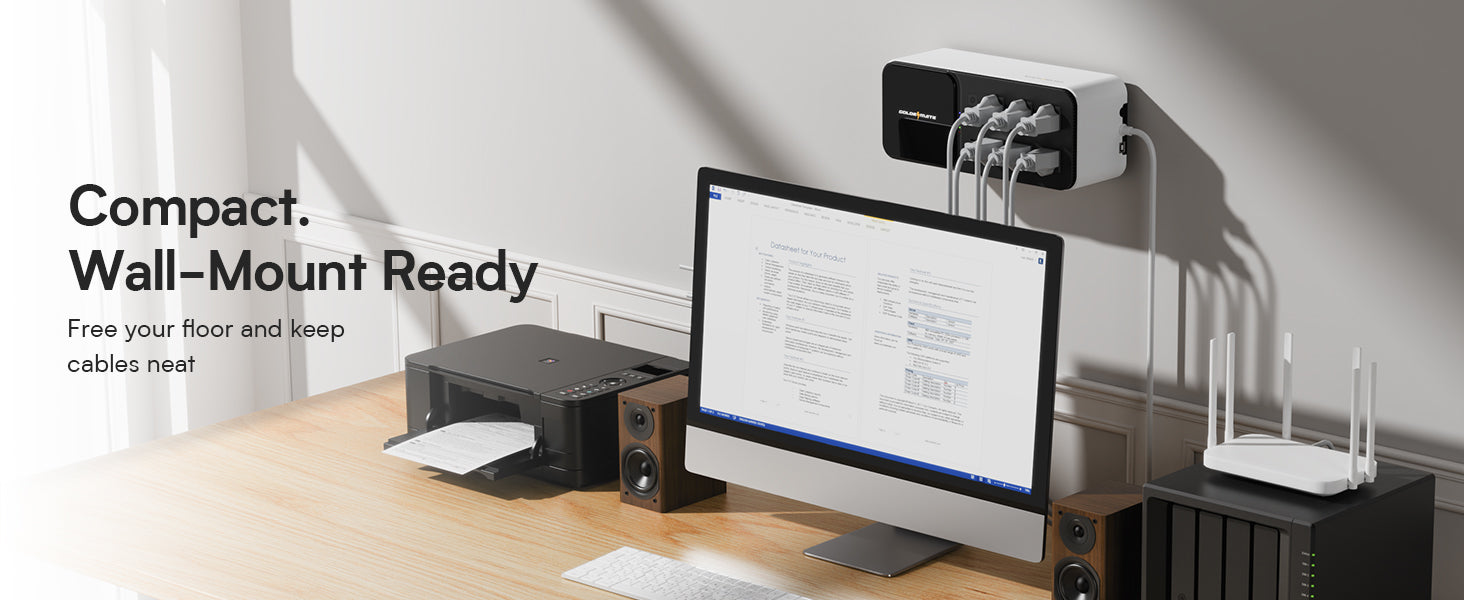

The 2.1kg unit can be placed on a desktop or wall-mounted according to the manual installation guidance.
Built to protect your setup
Compact 600VA / 360W Backup
360W
A compact standby UPS for compatible computers, networking equipment and monitors, with up to 360W rated output.
76.8Wh LiFePO4 Battery
76.8Wh
Built-in 25.6V 3Ah LiFePO4 battery with 3000+ cycle life under stated test conditions and about 10 minutes of backup at a 300W load at 25°C.

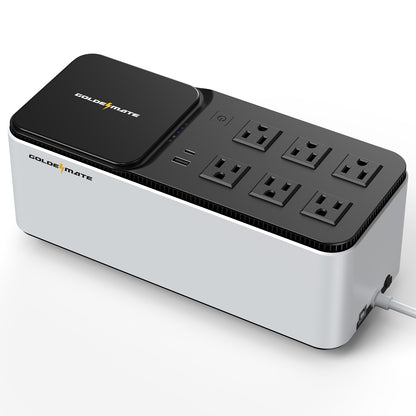

Six NEMA 5-15 Outlets
6 outlets
Six surge-protected NEMA 5-15 outlets support a compact group of compatible desktop devices.

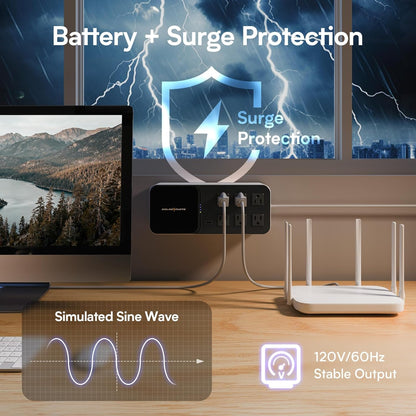

Simulated Sine Wave Output
Simulated sine
Designed for compatible electronics such as computers, networking devices and monitors. Do not use with laser printers, pumps, shredders or fan and motor loads.

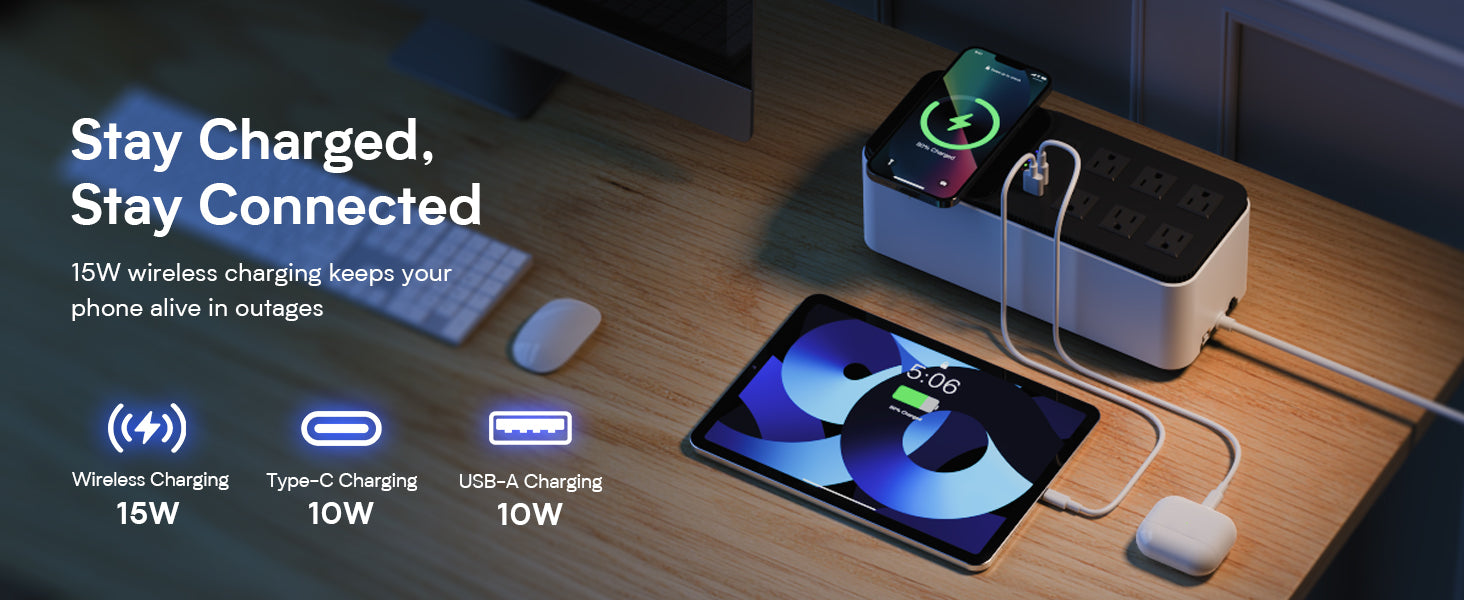

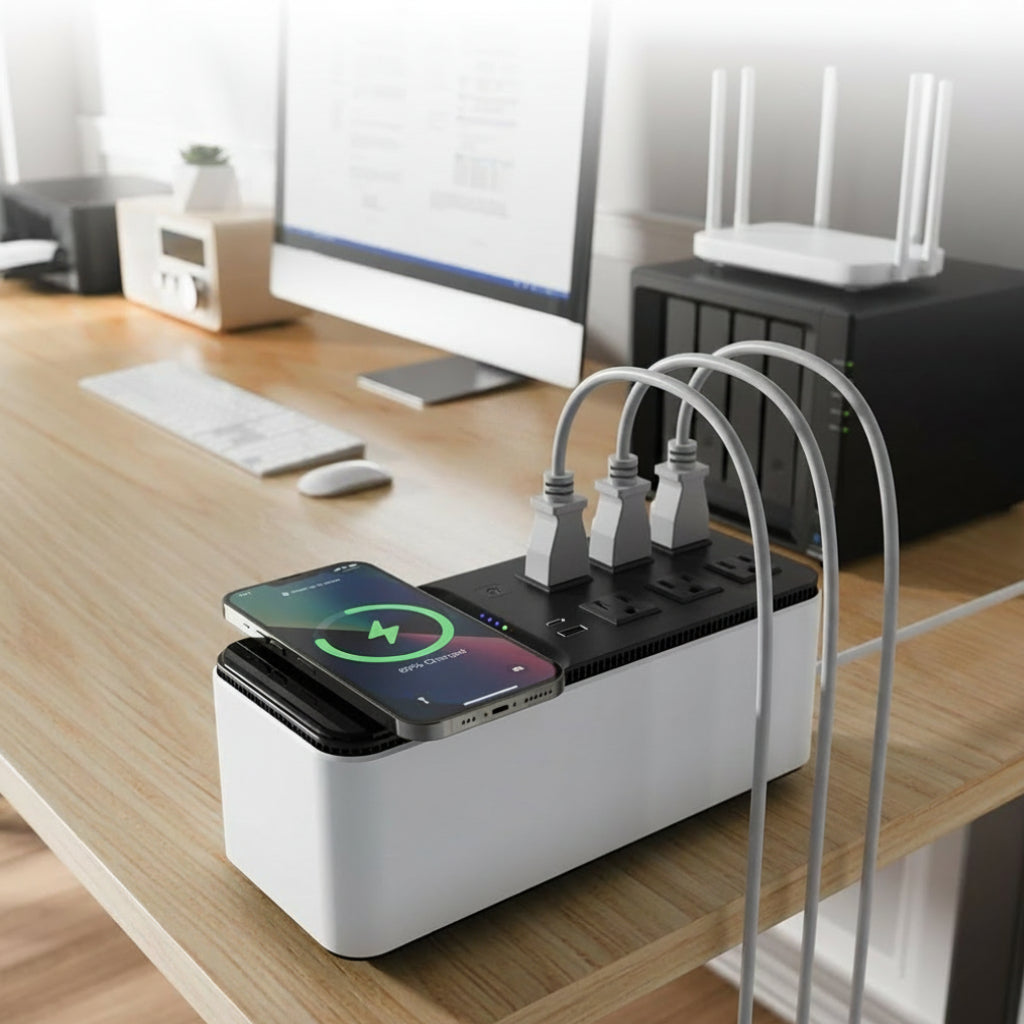

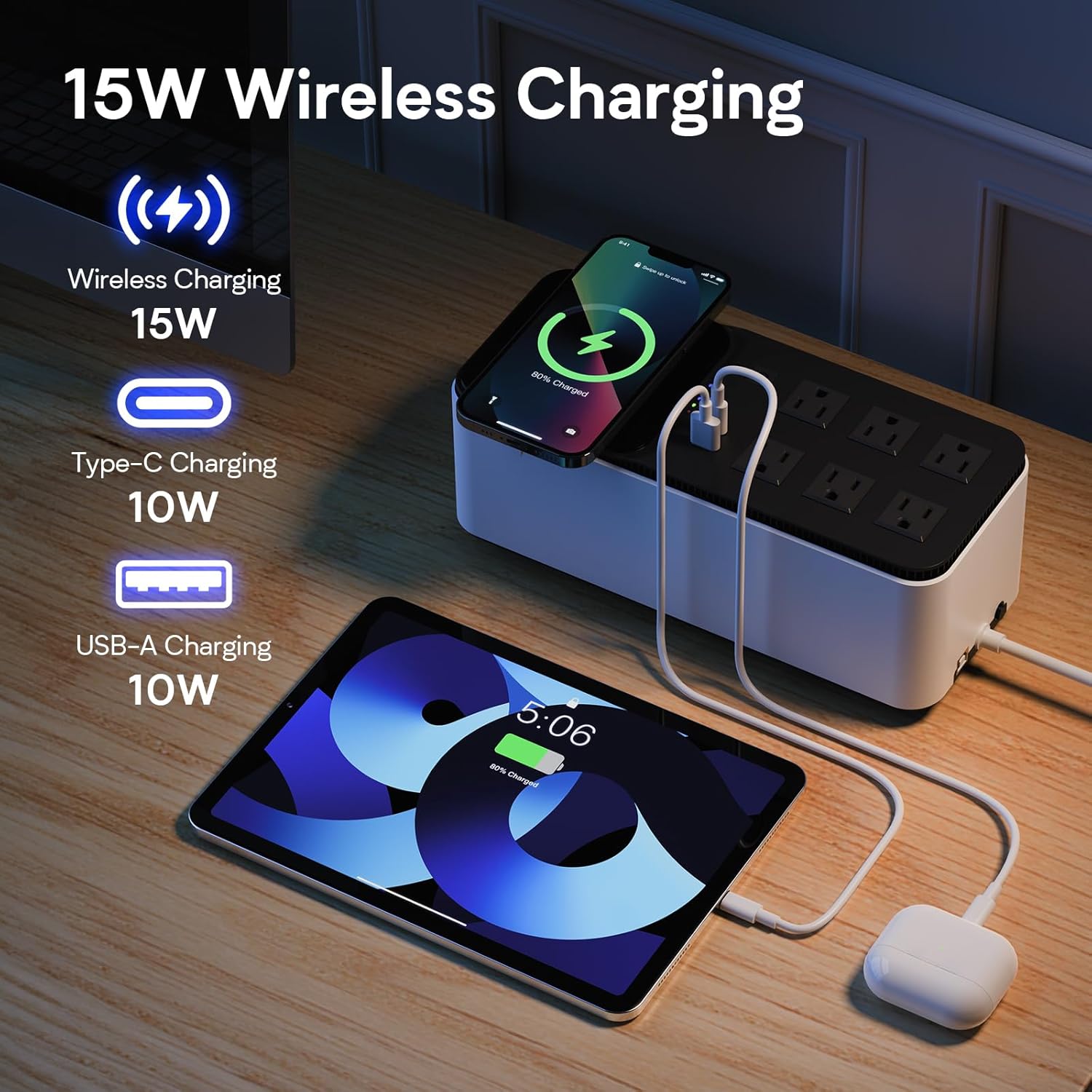

USB Charging; Wireless on Equipped Versions
10W USB
USB output is 5V/2A with 10W total. Wireless charging is up to 15W only on versions that include the removable wireless charging module.
Full technical specifications
Product
+
Model number
UPS-600VA-36BKA
UPS topology
Standby
Power
+
Apparent power
600 VA
Active power
360 W
Physical
+
Form factor
Desktop
Dimensions (L × W × H)
280 × 116 × 112 mm
Net weight
2.1 kg
Input
+
Input voltage range
90–140 V
Input frequency
50/60 ±3 Hz
Input protection
250V~, 10A protector
Output
+
Output voltage
120 ±10% V
Output frequency
60 ±3 Hz
Output waveform
Simulated Sine Wave
Transfer time
≤10 ms
Outlet / plug type
NEMA 5-15
Total outlets
6
USB / Type-C output
USB-A, 5V/2A, 10W total
Wireless charging
15 (Optional) W
Runtime
+
Reference load
300 W
Backup time
~10 min
Recommended load range
216–252 W
Built-in battery
+
Battery chemistry
LiFePO4
Battery nominal voltage
25.6 V
Battery capacity
3 Ah
Battery energy
76.8 Wh
Recharge time
~3 h
Cycle life
3000+ cycles
Environment
+
Noise
≤40 @1m dB
Operating temperature
0–40 °C
Storage temperature
-15–40 °C
Operating humidity
20–90, non-condensing %RH
Frequently asked questions
How long will it run after the power goes out?+
Under the published reference condition, this model provides about 10 minutes at a 300 W reference load. Actual runtime varies with connected load, temperature and battery condition.
What output waveform and transfer time does it use?+
The UPS uses Simulated Sine Wave output with a specified transfer time of ≤10 ms. Compatibility still depends on the connected equipment and its power requirements.
How long does the built-in battery take to recharge?+
The published recharge time is about 3 hours. Recharge time can vary with battery state, load and operating conditions; recharge the unit promptly after a low-battery event.
What outlets or communication interfaces are included?+
6 NEMA 5-15 outlets and USB-A; wireless charging is optional.
What load and maintenance limits should I follow?+
Do not exceed this model’s rated 360 W output. Keep the UPS in a dry, ventilated indoor location, and stop use if it shows abnormal heat, odor, deformation or fault indications. Battery maintenance or replacement should be handled by qualified personnel.
Need help?
Our support team can help with sizing, compatibility, setup, and troubleshooting.
Shipping Information
Find delivery estimates and shipping details for your order.
Customer Support
Get product selection, setup, and troubleshooting support.
FAQs
Review common UPS compatibility and runtime questions.
Contact Us
Contact our team when you need help matching a UPS to your equipment.
Choosing a selection results in a full page refresh.
Opens in a new window.
Specification
Max. Output Power (W)
360 W
Battery Capacity (Wh)
76.8 Wh
Max Runtime
≤10 min @ 300W
Recharge Time
3 Hours
Transfer Time (ms)
<10 ms
# of Outlets
6
Automatic Voltage Regulation (AVR)
X
Communication Port (Auto Shutdown)
✔
USB Charging Ports
✔
Output Waveform
Simulated Sine
Alarm Mute Operation
Double-click the power button during battery mode.
