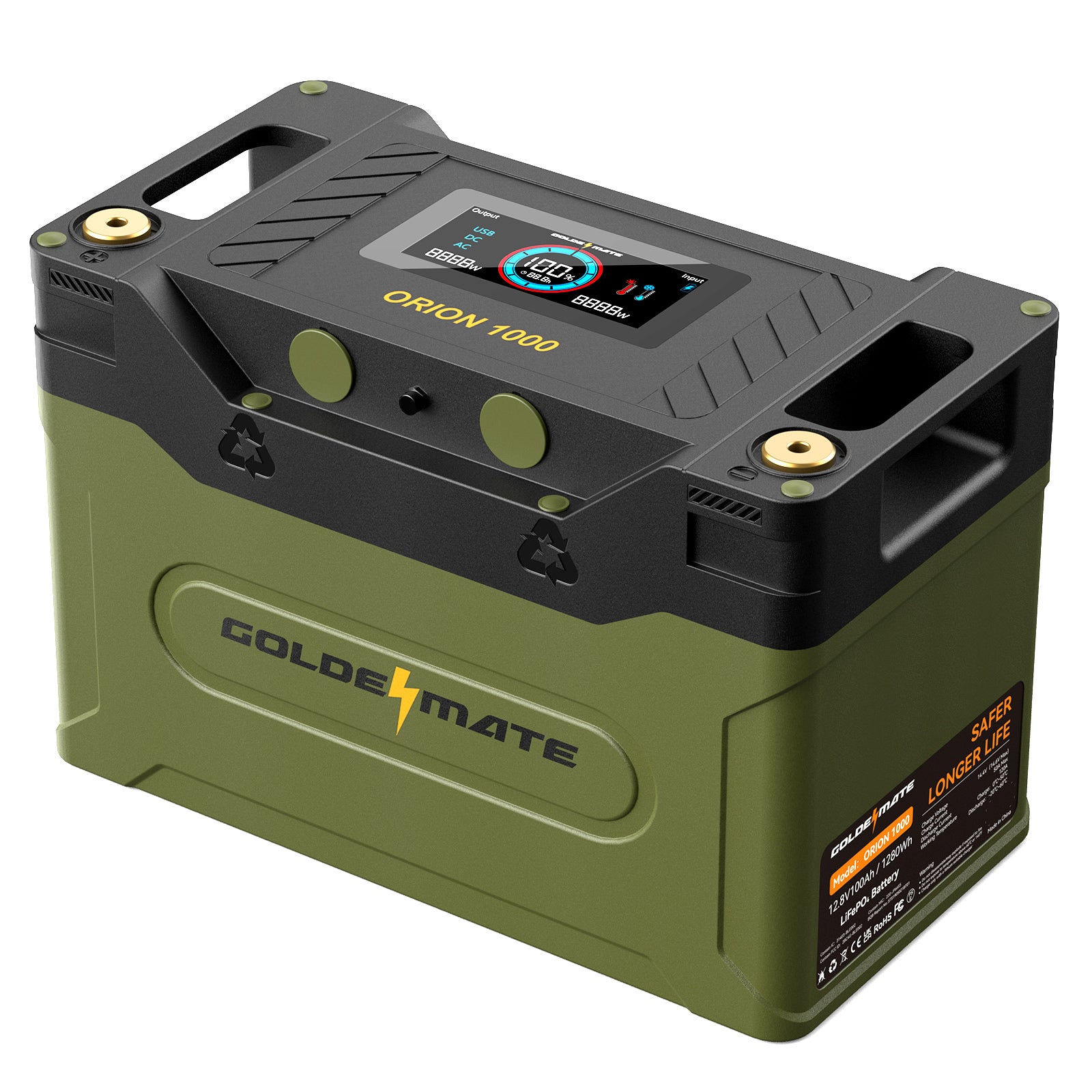

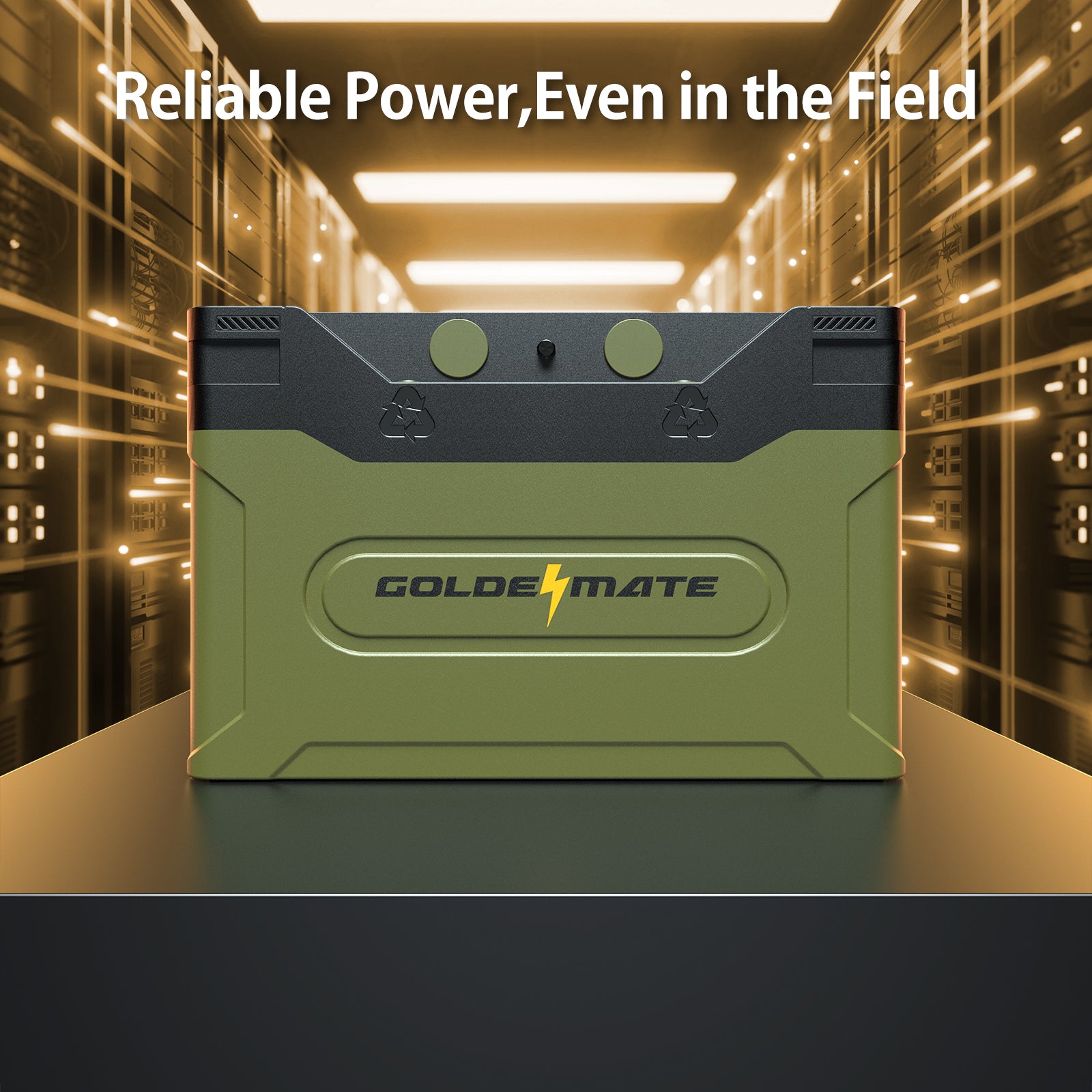

GoldenMate Orion1000 12V 100Ah IP67 Waterproof LiFePO4 Battery with LCD Display & APP Monitoring

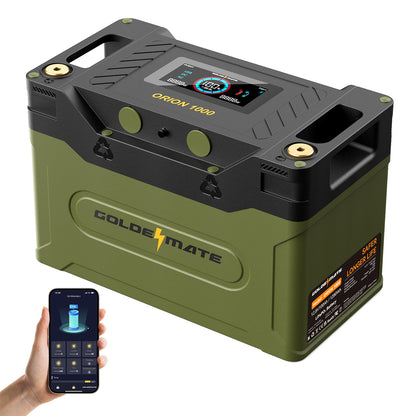

- Bluetooth Function & LCD Display: Compared with the traditional battery, the GoldenMate 12V 100AH Bluetooth lifepo4 battery adds an LCD and Bluetooth connectivity, so you can monitor & control the battery at any time.

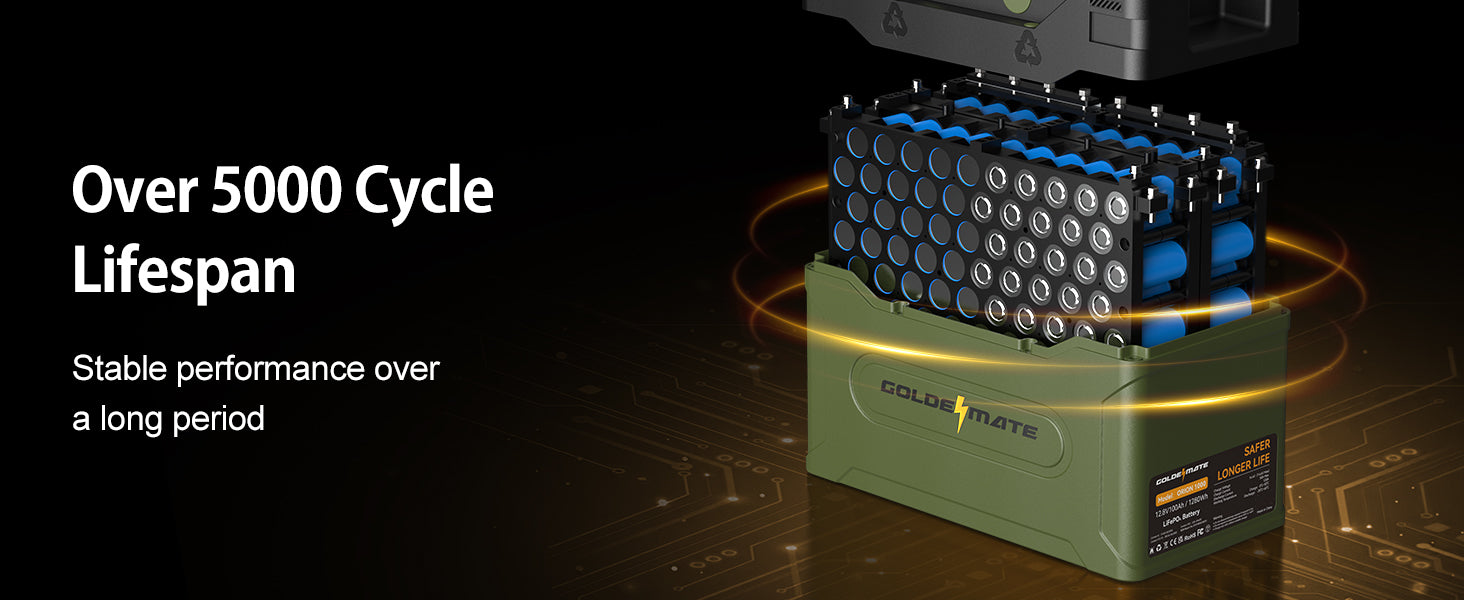

- 5000+ Cycles & 10 Years Lifetime: GoldenMate 100Ah lithium batteries have a low self-discharge rate and support 100% DOD and 100% SOC, providing better performance and longer battery life. Goldenmate 12V 100Ah lithium battery can run 5000+ cycles, its lifetime can last up to 10 years.

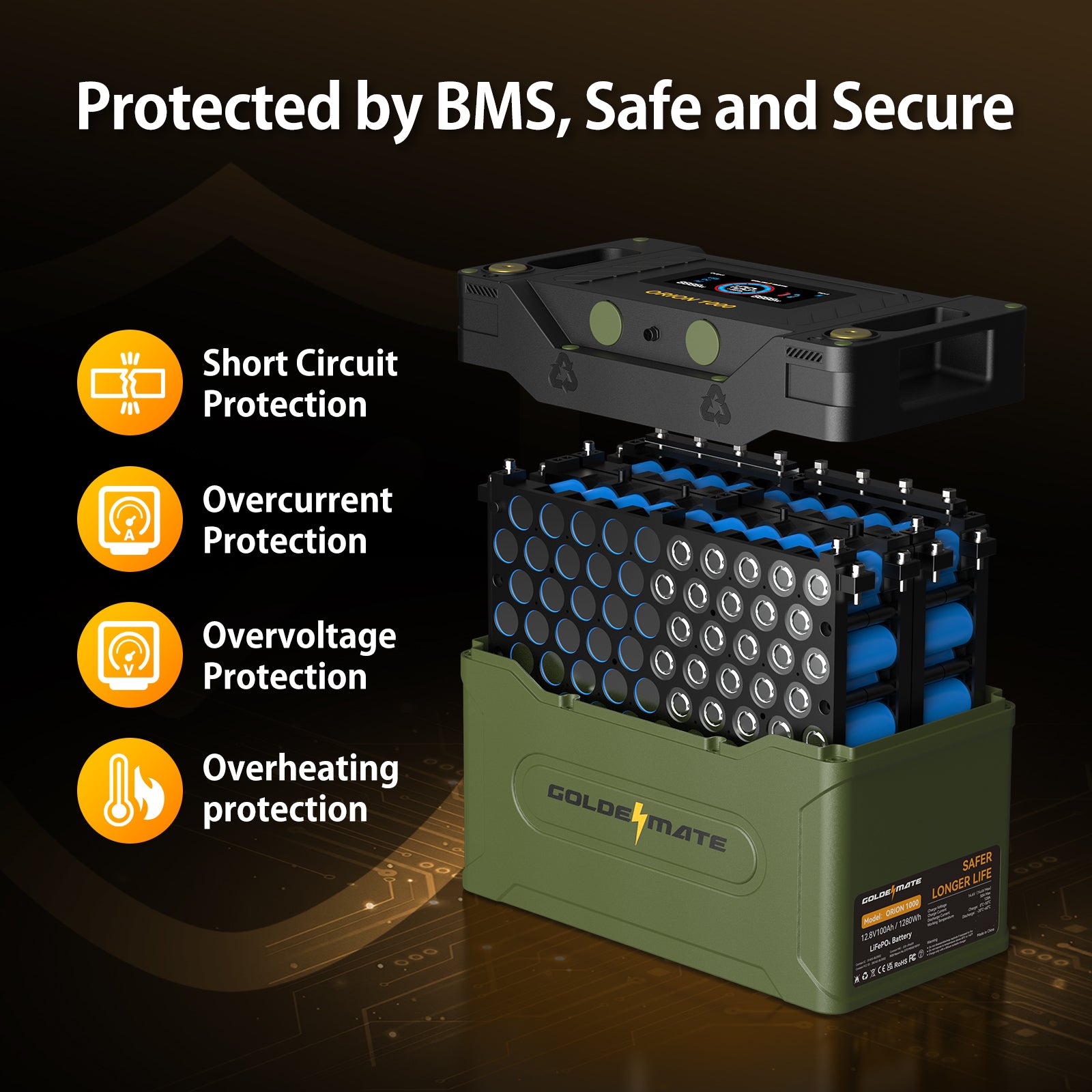

- 100% Safety: Our 12V 100Ah Lithium battery builds in 100A BMS, which can protect the LifePO4 battery from safety hazards by providing five types of protection: overcharging, over-discharging, overcurrent, short circuit, and the high-temperature environment above 60°C/140°F.

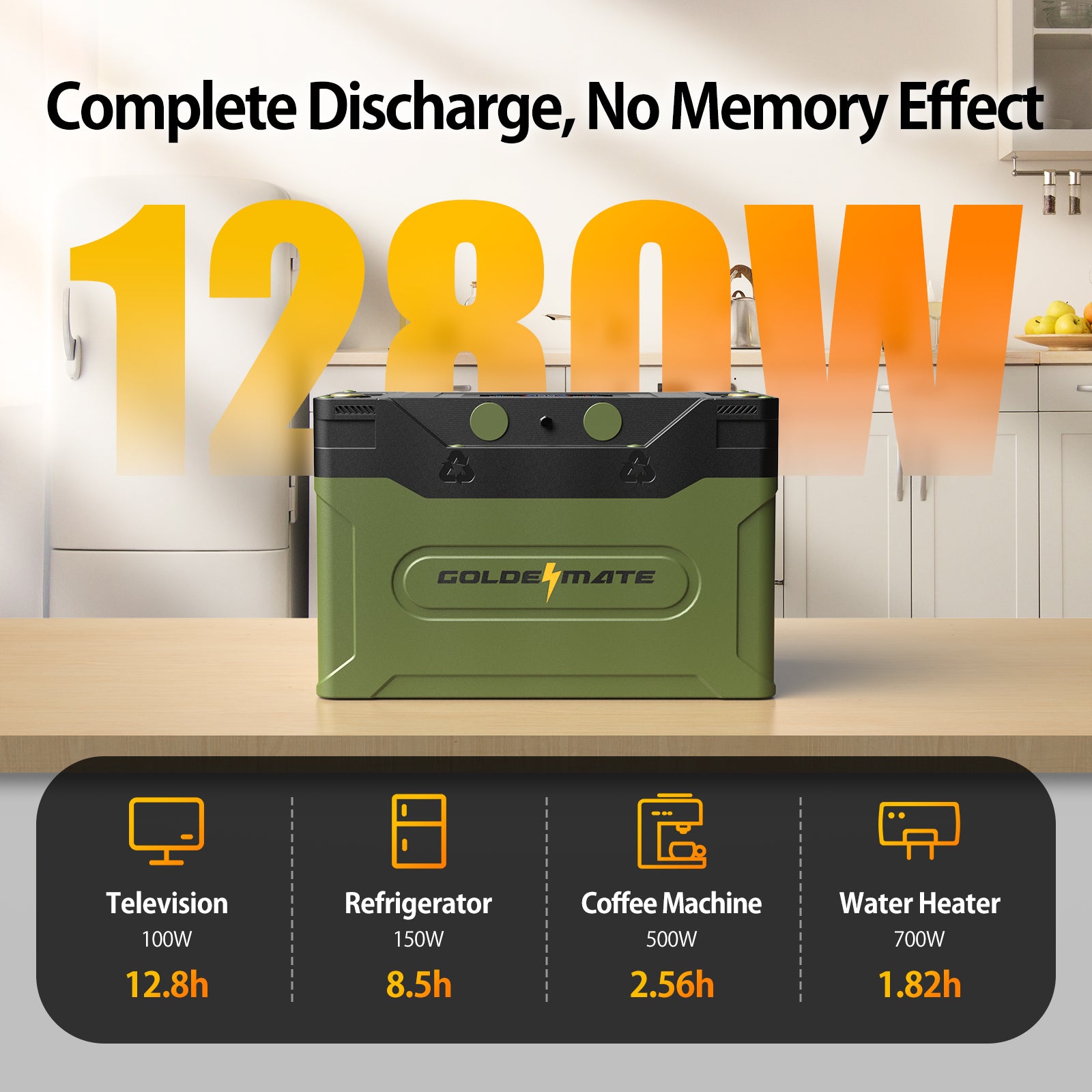

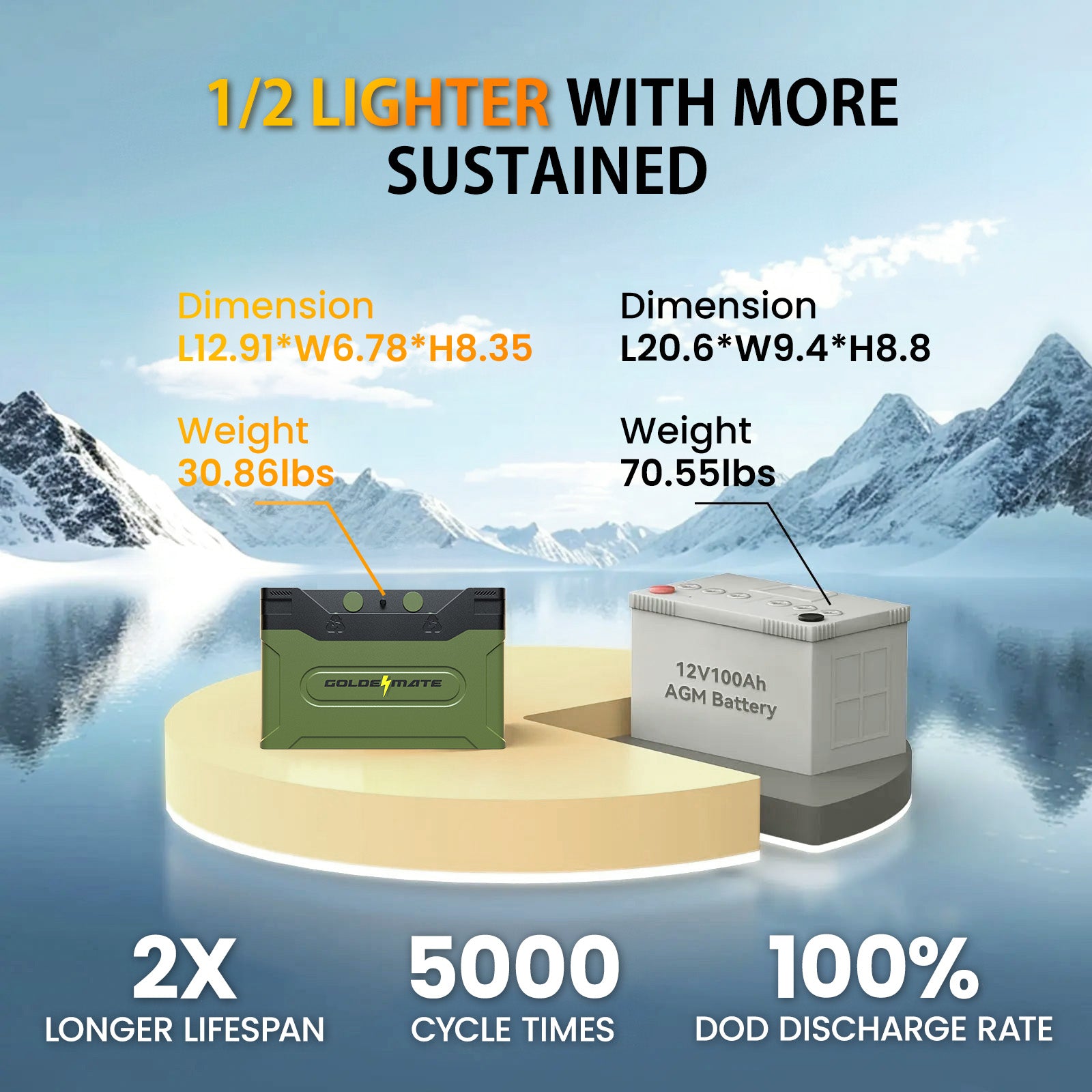

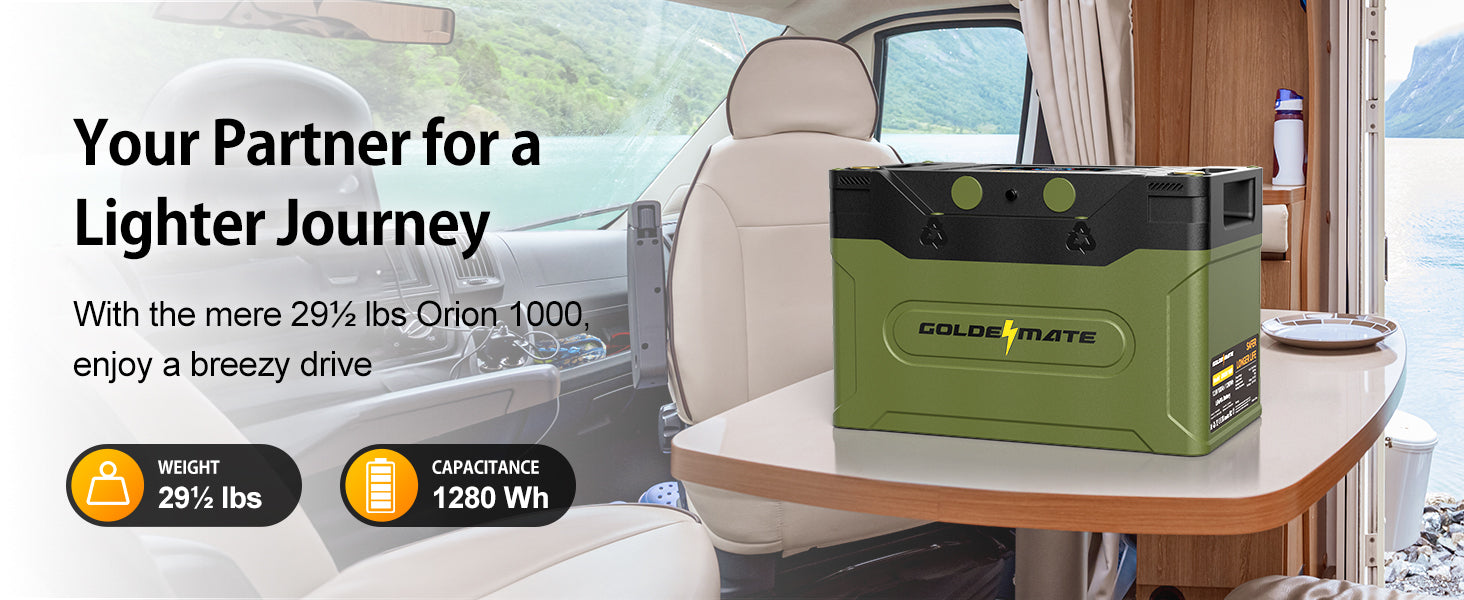

- Higher Capacity & Extra Light: GoldenMate 12V 100Ah LiFePO4 battery provides 5000+ cycles times and 1280Wh energy, which means our 100Ah battery produces 6400kWh (1280Wh*5000 cycles times=6400kWh) in its 10-year lifespan, which means you will save 1/2 of power fees compare with using the utility power. Weighing in at 14.2kg, it's 1/2 the weight of a 25kg 12.8V 100Ah lead-acid battery, making it easy to carry around.

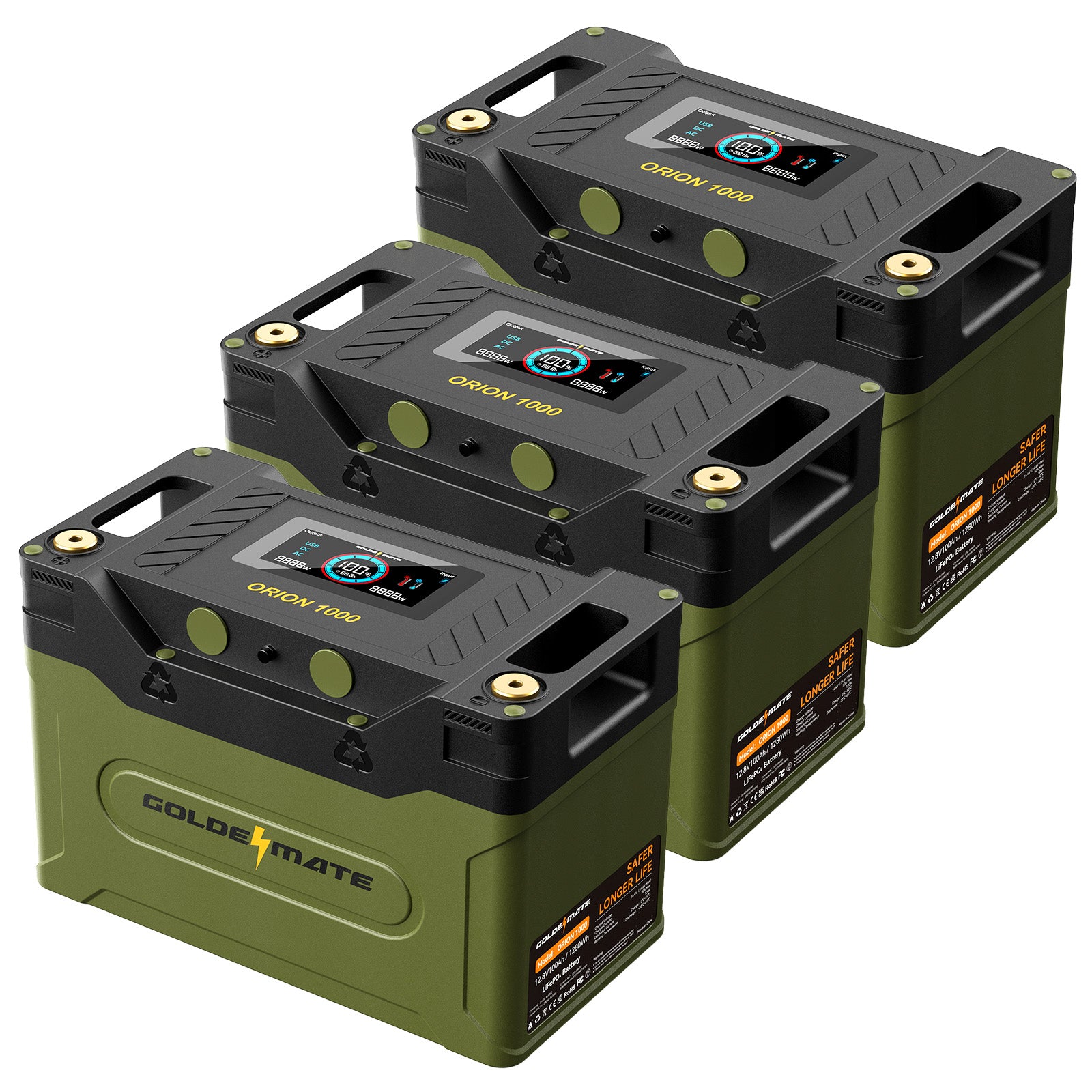

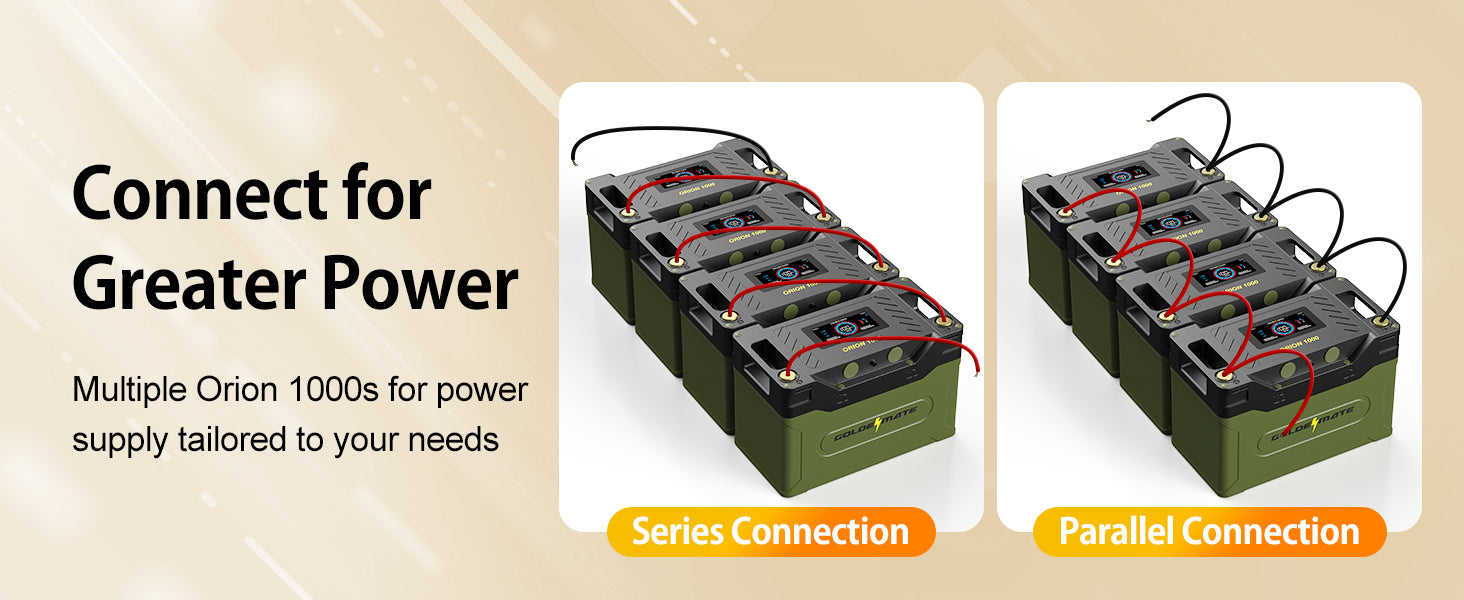

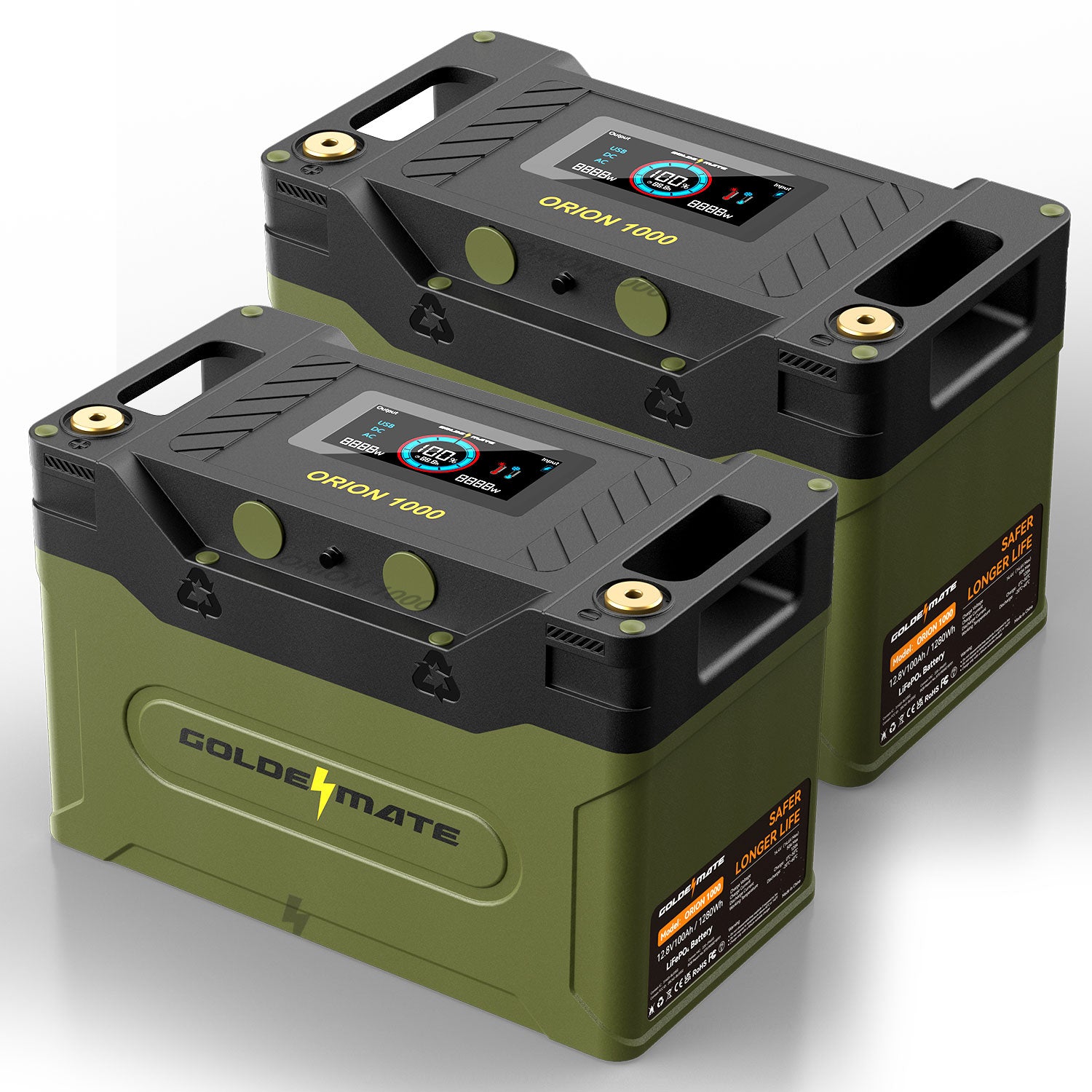

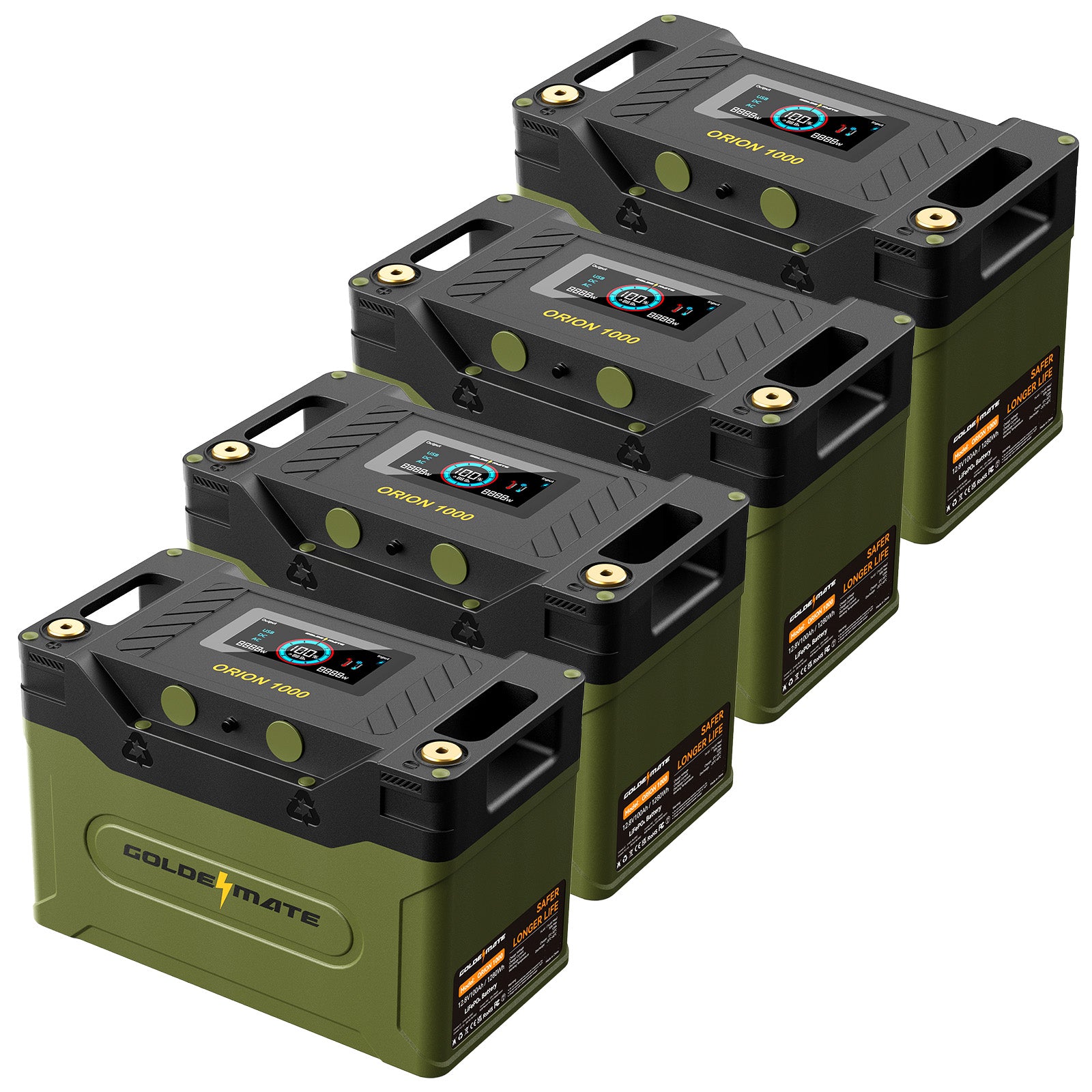

- Capacity Expansion: GoldenMate 12V 100Ah LiFePO4 battery can be connected in parallel & in series for larger capacity. Allow being extended up to 4S or 4P to get Max 400Ah capacity or Max 51.2V voltage.
- Wide Applications: GoldenMate Lithium Iron Batteries are suitable for trolling motors, solar, RV, station wagons, bass boats, off-grid applications, household appliances, marine, caravan, medical equipment, electric scooters, industrial, hunting, lawn, and gardening tools, etc. Note: The battery cannot be used as a starting battery.
Pairs well with
In stock! Ships within 1-2 business days.
90-day risk-free trial
2-Year Warranty
Complimentary shipping & returns
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Why Goldenmate?
GoldenMate delivers decade-long, safe power with LiFePO4 UPS technology, ensuring pure, reliable protection for your critical systems.
BATTERY CAPACITY
MAINTENANCE
LIGHTER
CHARGING EFFICIENCY
FIVE TIMES THE LIFESPAN
Find Your Energy Solutions
Product Specifications
- Battery Type: LiFePO₄ (Lithium Iron Phosphate)
- Nominal Voltage: 12.8V
- Rated Capacity: 100Ah
- Energy: 1280Wh
- Cycle Life: 5000+ cycles
- Continuous Discharge Current: 100A
- Peak Discharge Current: ~200A
- Charging Voltage: 14.4V–14.6V
- Standard Charging Current: 20A
- Maximum Charge Current: 50A
- Built‑in BMS: Yes
- Bluetooth Connectivity: Yes
- Bluetooth Features: Real‑time monitoring via app
- LCD Display: Yes
- Protection Functions: Overcharge, Over‑discharge, Over‑current, Short Circuit, Over‑temperature
- Operating Temperature (Charge): 0°C to 50°C
- Operating Temperature (Discharge): -20°C to 60°C
- Storage Temperature: 0°C to 45°C
- Waterproof Rating: IP67
- Terminal Type: M8
- Battery Dimensions: Approx. 12.9″ × 6.8″ × 8.4″
- Weight: Approx. 30.9 lbs (≈14.0 kg)
- Applications: RV, Solar, Marine, Off‑grid Power, Trolling Motor
Testimonials
Add customer reviews and testimonials to showcase your store’s happy customers.
— Author's name
Add customer reviews and testimonials to showcase your store’s happy customers.
— Author's name
Add customer reviews and testimonials to showcase your store’s happy customers.
— Author's name
Recognized And Supported By 100+ Accredited Media Sources WorldWide
FAQs
1. Are GoldenMate LiFePO4 lithium batteries safe?
Yes. GoldenMate LiFePO4 batteries use one of the safest and most stable lithium chemistries available. They are UL-certified and include an advanced Battery Management System (BMS) that protects against over-charge, over-discharge, over-current, overheating, and short circuits. They are also tested to minimize risks of fire and electric shock, even in harsh environments.
2. How can I charge GoldenMate LiFePO4 batteries?
GoldenMate LiFePO4 batteries can be charged in several ways:
- Solar panels (recommended ≥300W for faster charging)
- Generator or alternator (DC-to-DC charger required for DC output)
- LiFePO4 smart chargers
Recommended charging voltage is 14.2V–14.6V. Using a 20A charger typically takes about 5 hours, while a 50A charger can reach ~97% charge in about 2 hours.
3. How long does it take to charge the battery?
Charging time depends on the charger:
- 10A charger: ~10 hours
- 20A charger: ~5 hours
- 50A charger: ~2 hours (to ~97%)
Solar charging time varies based on sunlight intensity and duration.
4. Can I charge the battery in cold temperatures? Does it have low-temperature protection?
The battery includes low-temperature charging protection, which prevents charging below freezing to avoid cell damage.
Recommended charging temperature range is 32°F–122°F (0°C–50°C). Charging below 32°F (0°C) is not recommended.
5. How should I store the battery, and what should I do when I receive it?
The battery may arrive with a low state of charge due to shipping. Please charge it promptly after receiving.
For storage:
- Store at ~50% state of charge (SOC)
- Store in a dry environment between 50°F–95°F (10°C–35°C)
- If stored long-term, recharge or cycle the battery every 3–6 months to maintain performance

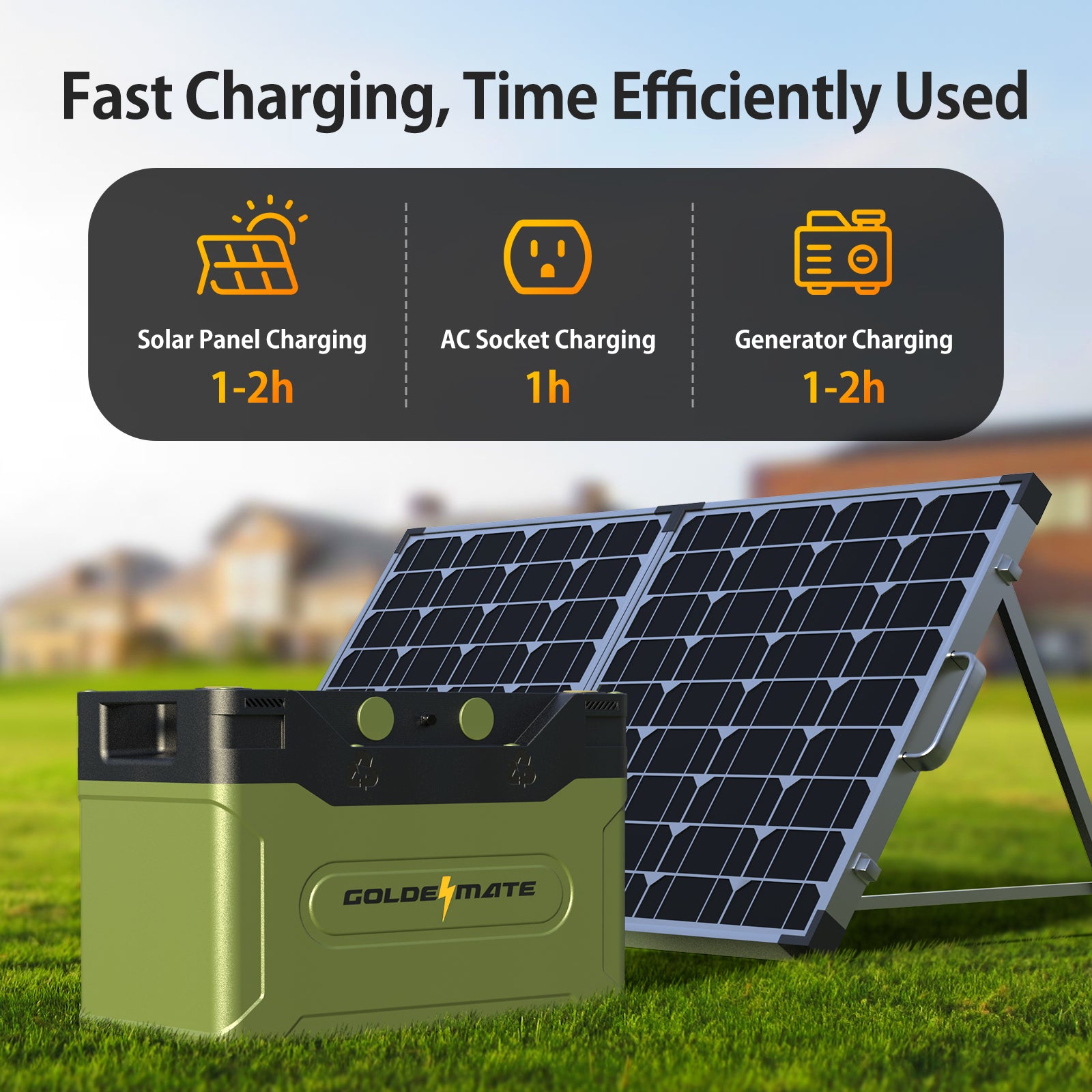

6. Can I charge GoldenMate LiFePO4 lithium batteries with solar panels?
Yes, you can charge GoldenMate LiFePO4 lithium batteries with solar panels. There are 3 ways to charge.
1. Using Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 300W solar panels. It may take more than one day to fully charge the battery by ≥300W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
Besides solar panels, there are 2 more ways to charge.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
